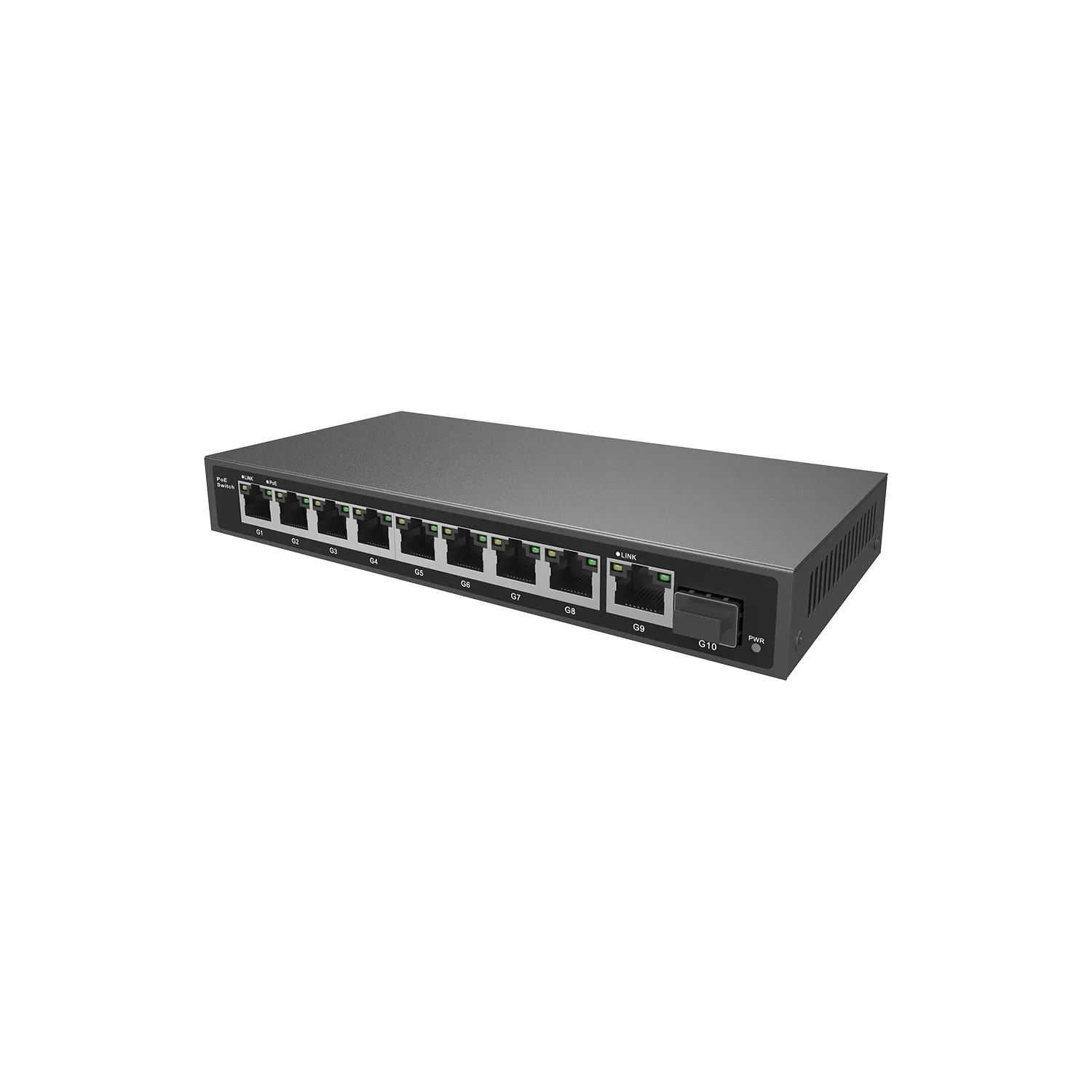

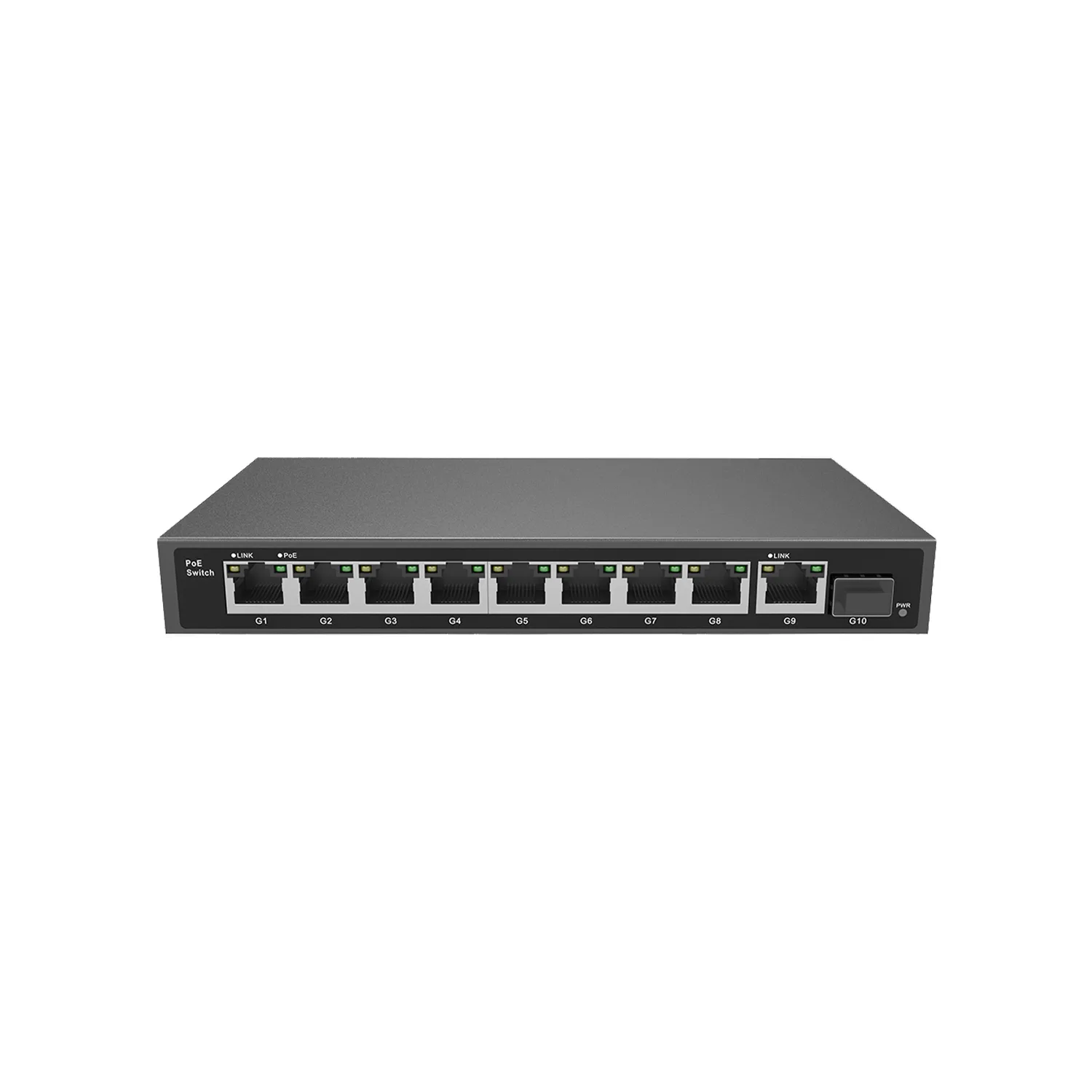

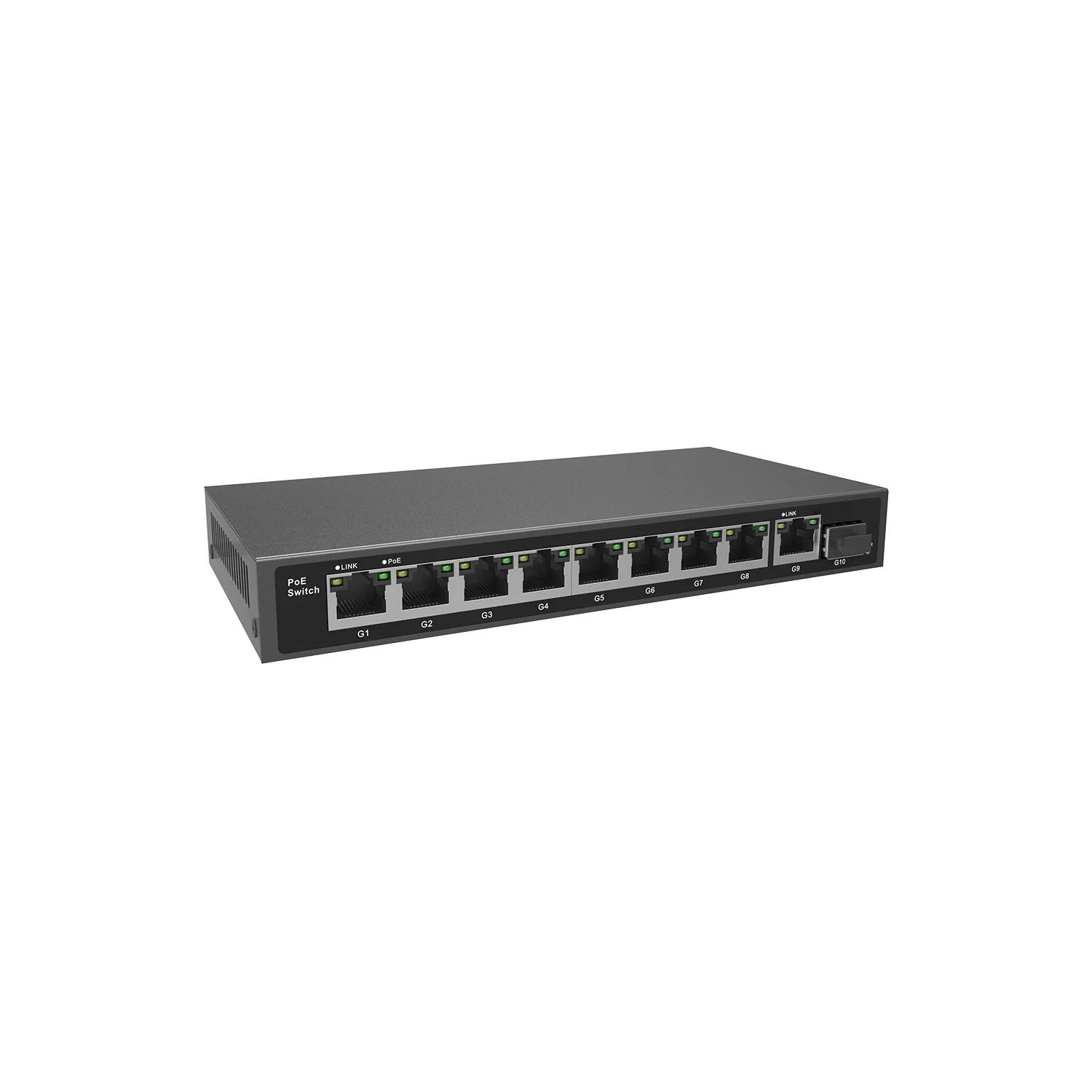

Network Switch with 8 POE Ports
Code: EC-POE8P30
Eight 10/100/1000M adaptive RJ45 ports support IEEE 802.3af/at standard PoE power supply. Single port power supply up to 30W, total power supply up to 250W. Support full-duplex based on IEEE802.3x and half-duplex based on Backpressure. Gigabit RJ45 ports and SFP fiber ports combination, high-speed high-bandwidth connection, to meet the networking needs of various scenarios.
Technical specifications
Model
EC-EC-POE8P30
Transmission Rate
10/100/1000Mbps
Max. Power Per Port
30W; IEEE802.3af/at
Total Power
250W
Fixed Port
1*1000M uplink SFP port (Data)
1*10/100/1000M uplink RJ45 port (Data)
8*10/100/1000M PoE ports (Data /Power)
Ethernet Port
Port 1-9 can support 10/100/1000Base-T,
auto-sensing, full/half duplex MDI/MDI-X
Network Protocol
IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX
IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-X, IEEE802.3x
Switching Capacity
20Gbps
Power Supply
External power adapter
AC100~240V 50-60Hz
Dimension (L*W*H)
191*105*29mm
Net Weight
0.55kg
Applications
Eight 10/100/1000M adaptive RJ45 ports support IEEE 802.3af/at standard PoE power supply.
Single port power supply up to 30W, total power supply up to 250W.
Support full-duplex based on IEEE802.3x and half-duplex based on Backpressure.
Gigabit RJ45 ports and SFP fiber ports combination, high-speed high-bandwidth connection, to meet the networking needs of various scenarios.
