Audio Systems / FTD Audio - IP Network PA System

EC-900FA

Code: EC-900FA

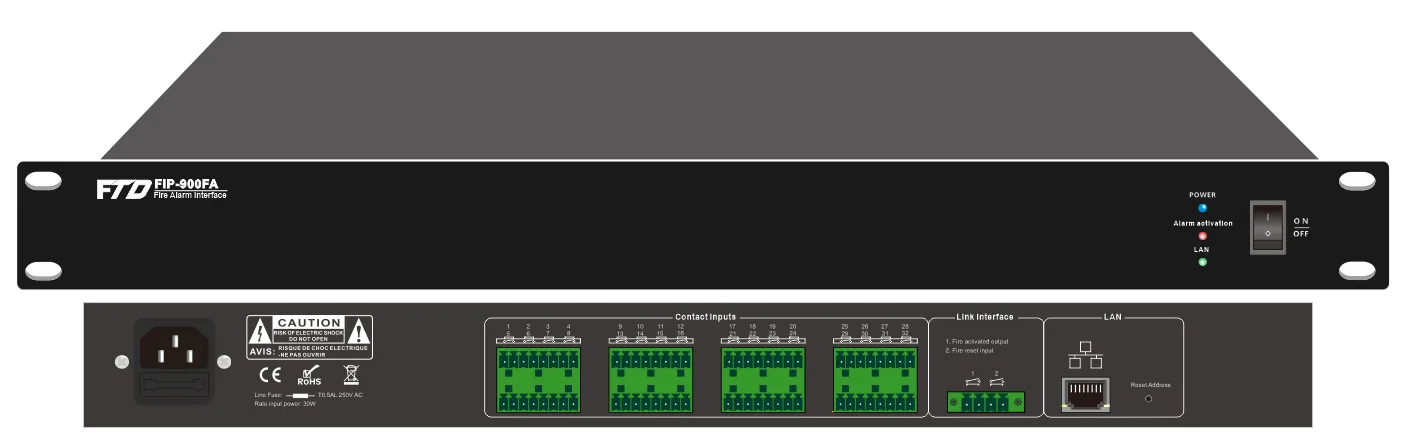

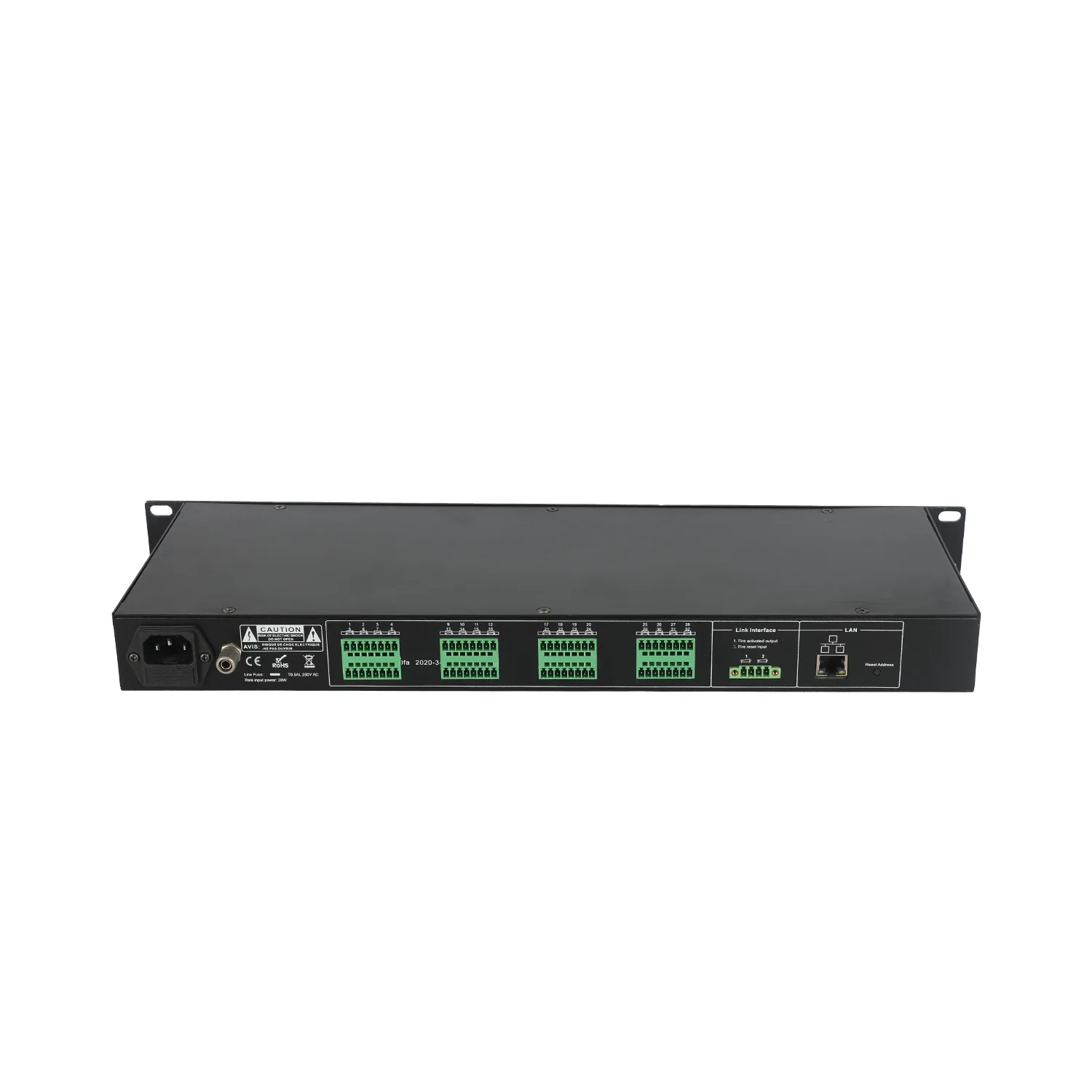

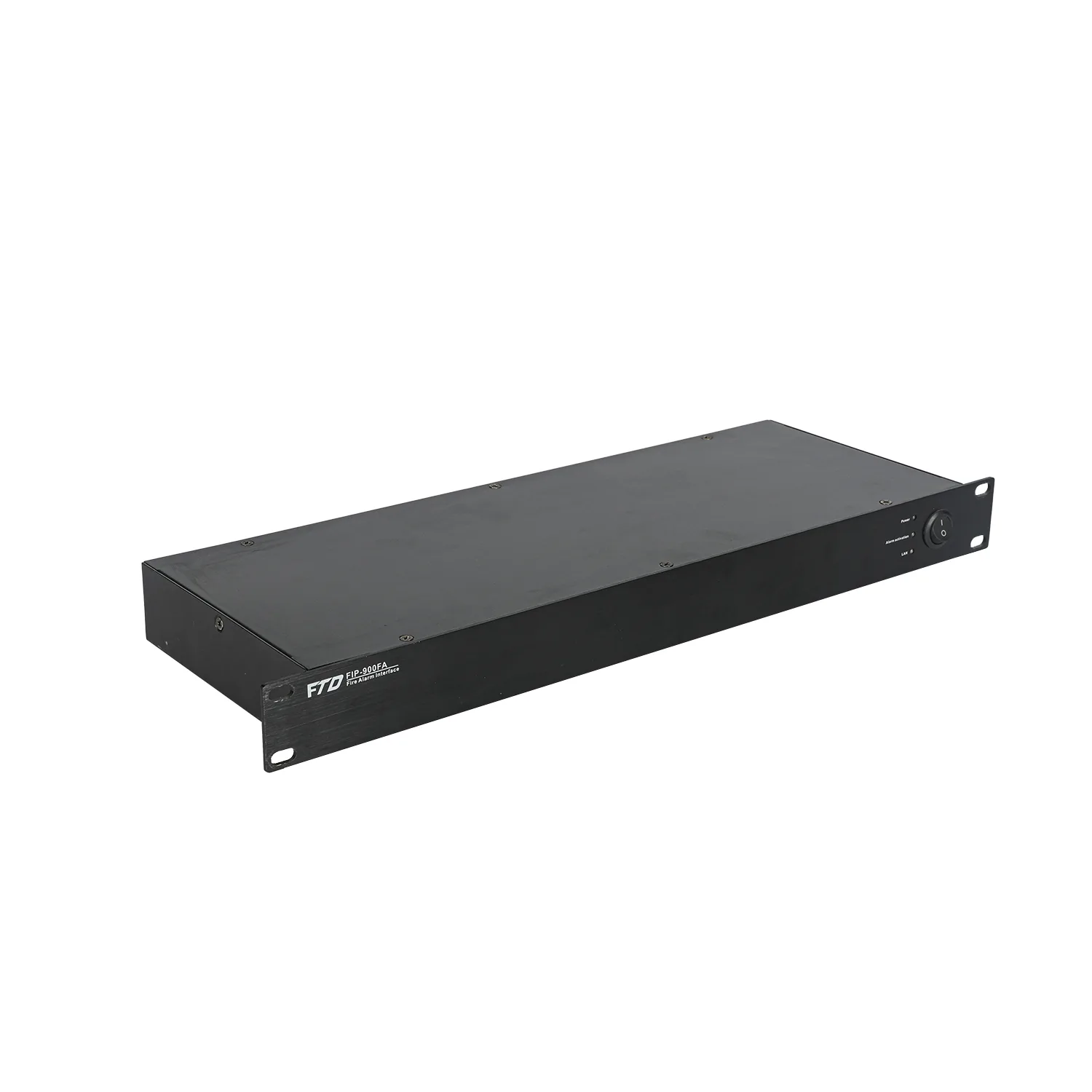

IP Network Fire alarm Panel (32 zone) EC-900FA Interface between fire alarm and IP network audio system. Automatically broadcast the pre-recorded voice alarm message once triggered by the closed contact from the fire alarm center. Different zone trigger could be assigned with different voice messages. The multiple pre-recorded voice messages are stored in the server or controller. The fire alarm center send the fire alarm closed contact to this fire alarm panel, which will communicate with the server through the LAN RJ45 port, the server will give command to generate which pre-set voice message to be broadcasted to which speaker zone output. One fire alarm panel support 32 speaker zones. The fire alarm panel capable for both IP network PA and intercom system. Each IP network audio system support more than 200 units working together for more than 6,400 speaker zones. The fire alarm panel could be built-up over existing LAN/WAN network, non-dedicated network is needed. Model IP-900FA Description IP Network Fire Alarm Panel Power Supply AC220V or 240V, 50-60Hz Power Consumption 15W Network Protocol TCP, UDP, ARP, ICMP, IGMP Network Speed 10/100Mbps Audio Sampling 8KHz-48KHz, 16 bits Transmission Rate 8Kbps to 320Kbps S/N Ratio ≥90dB Frequency Response 20Hz-20KHz Data Delay Connector One RJ45 port for LAN, 16 contact inputs and four contact outputs Dimensions 483(W)×256(D)×44(H)mm Weight 2.5kg
