أنظمة الصوت / سماعات النداء العام

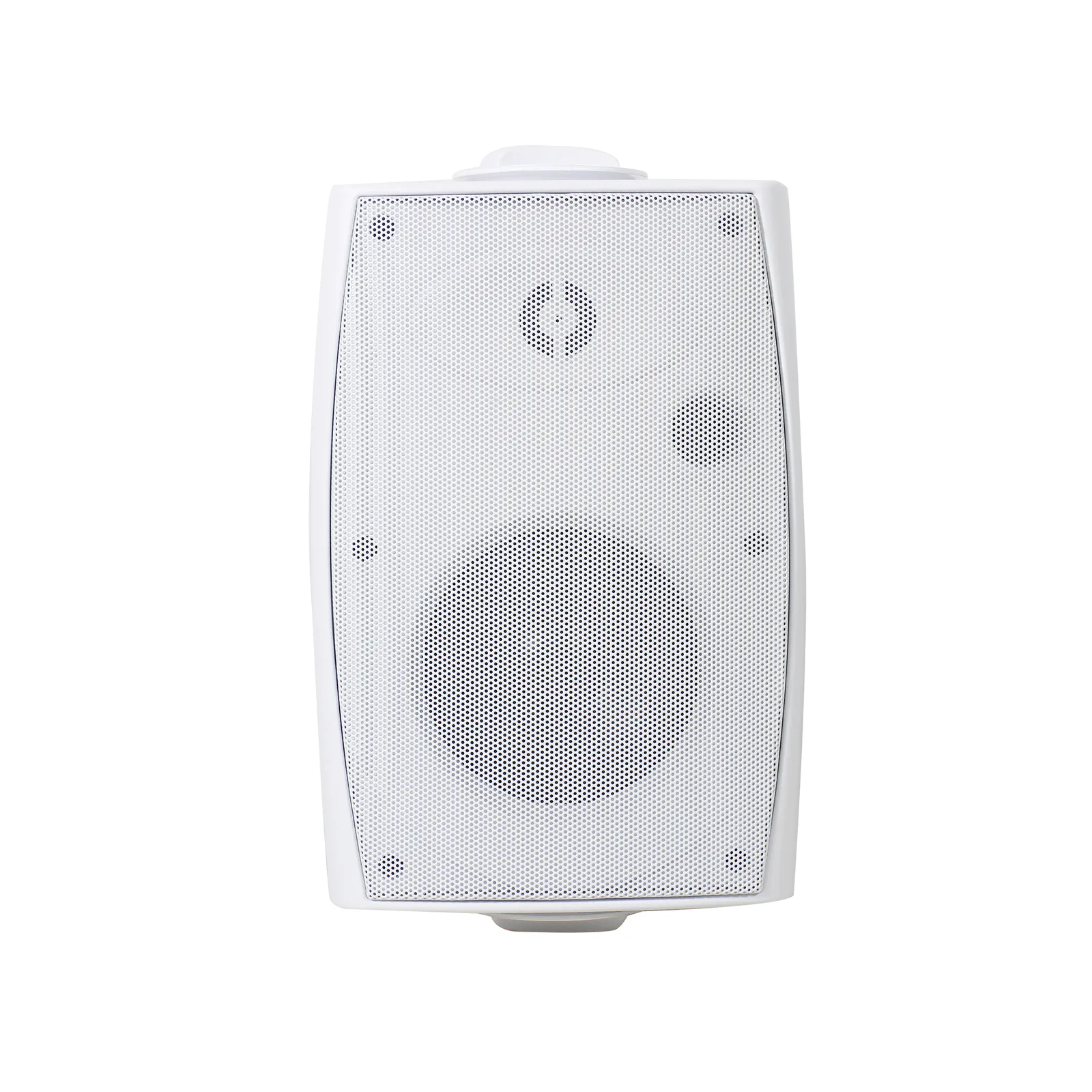

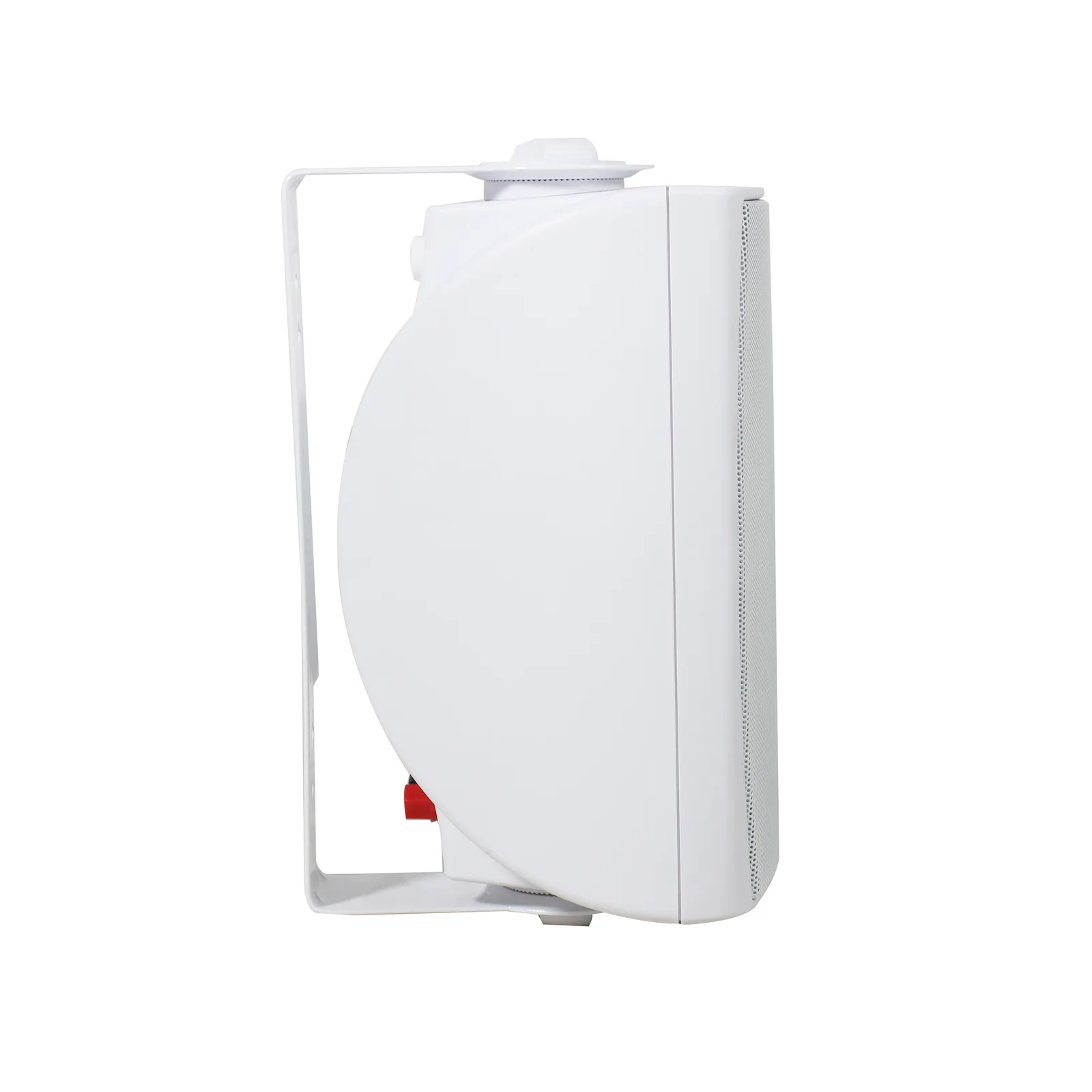

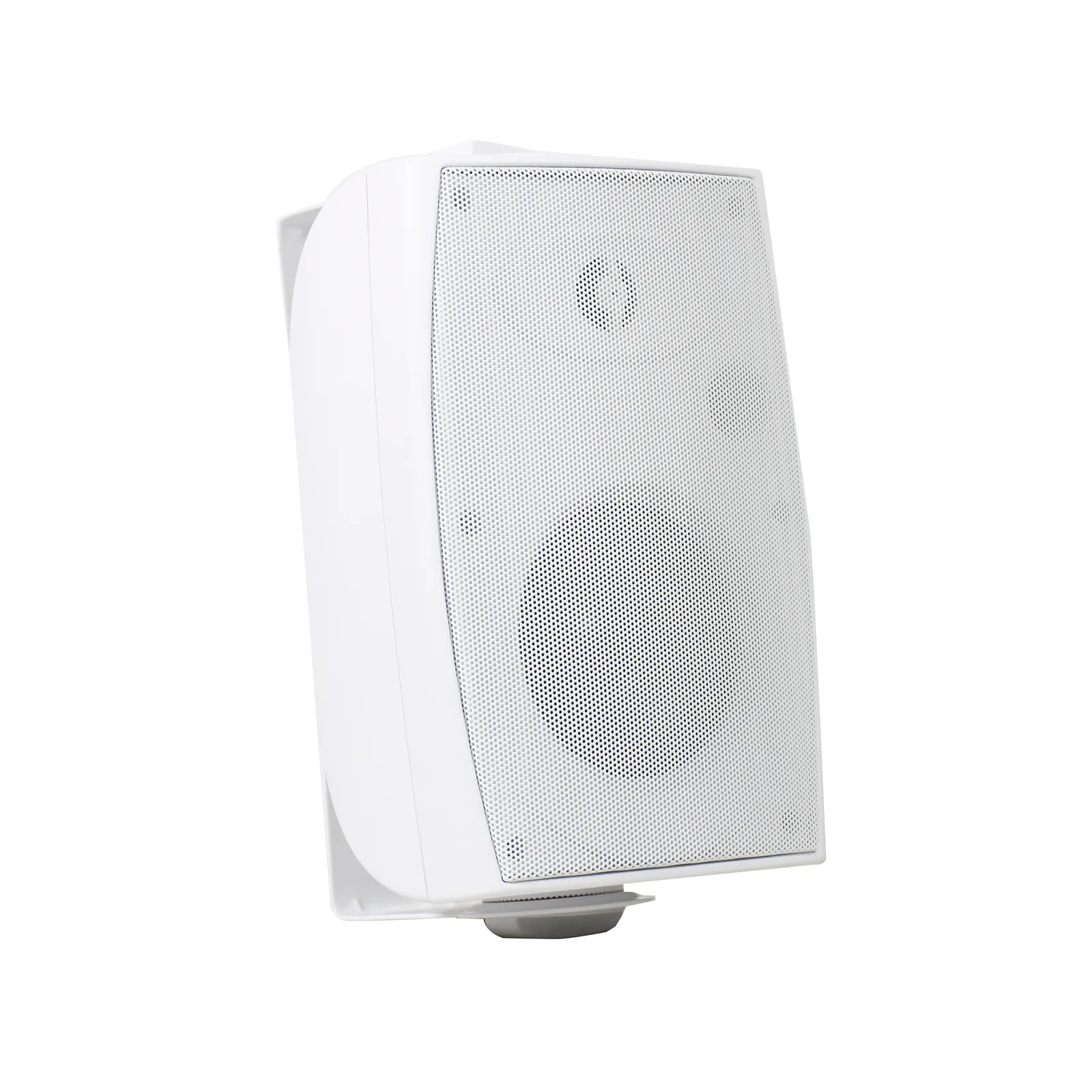

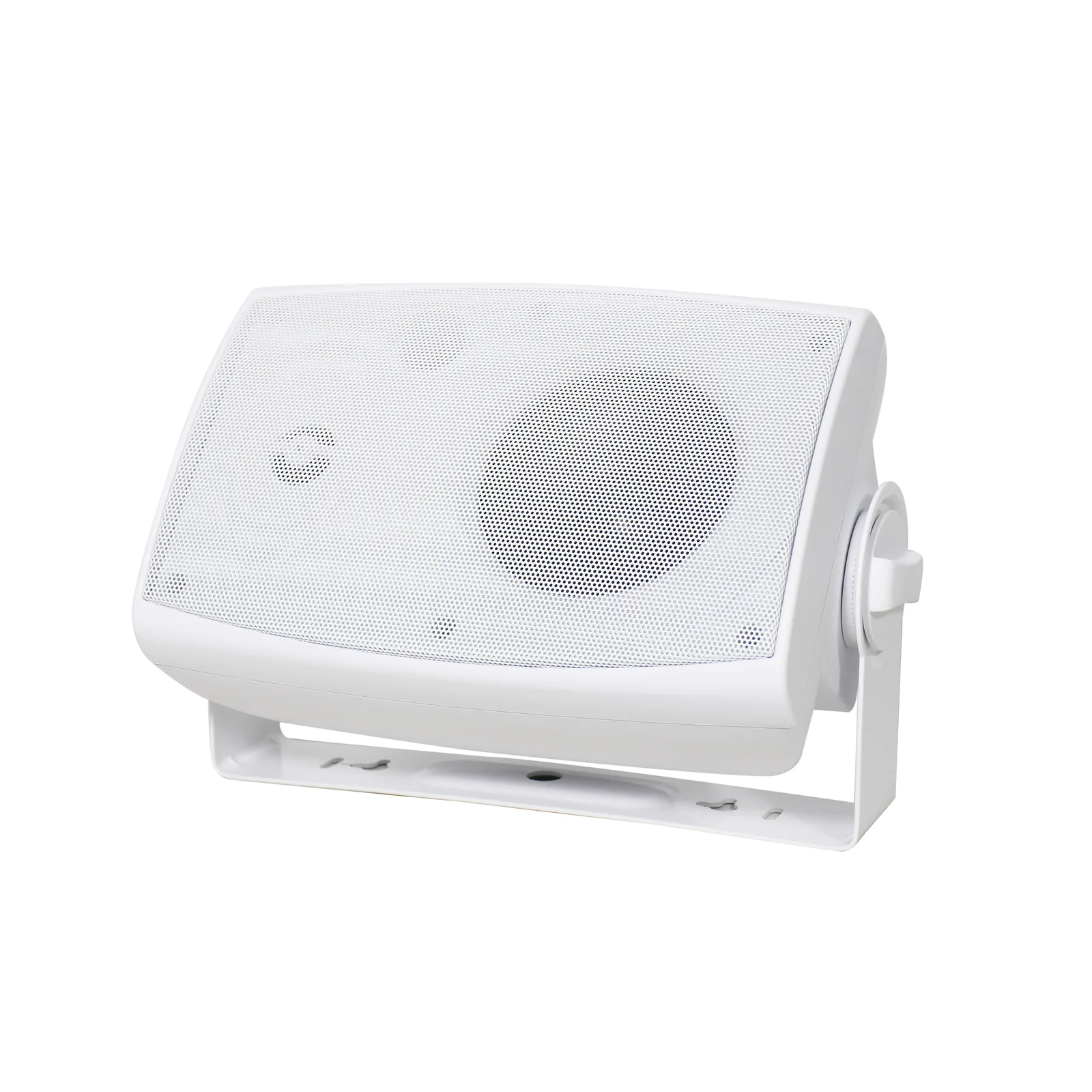

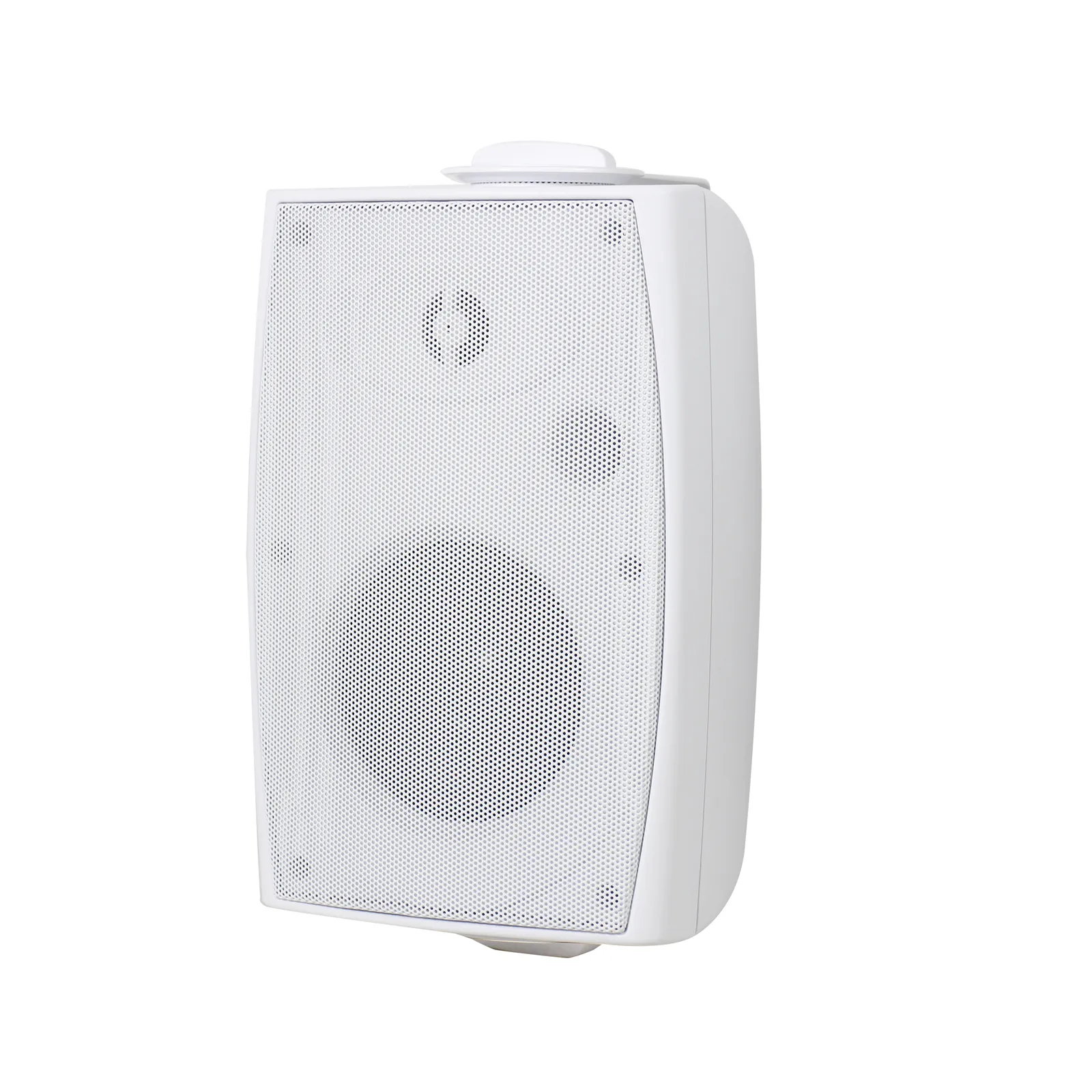

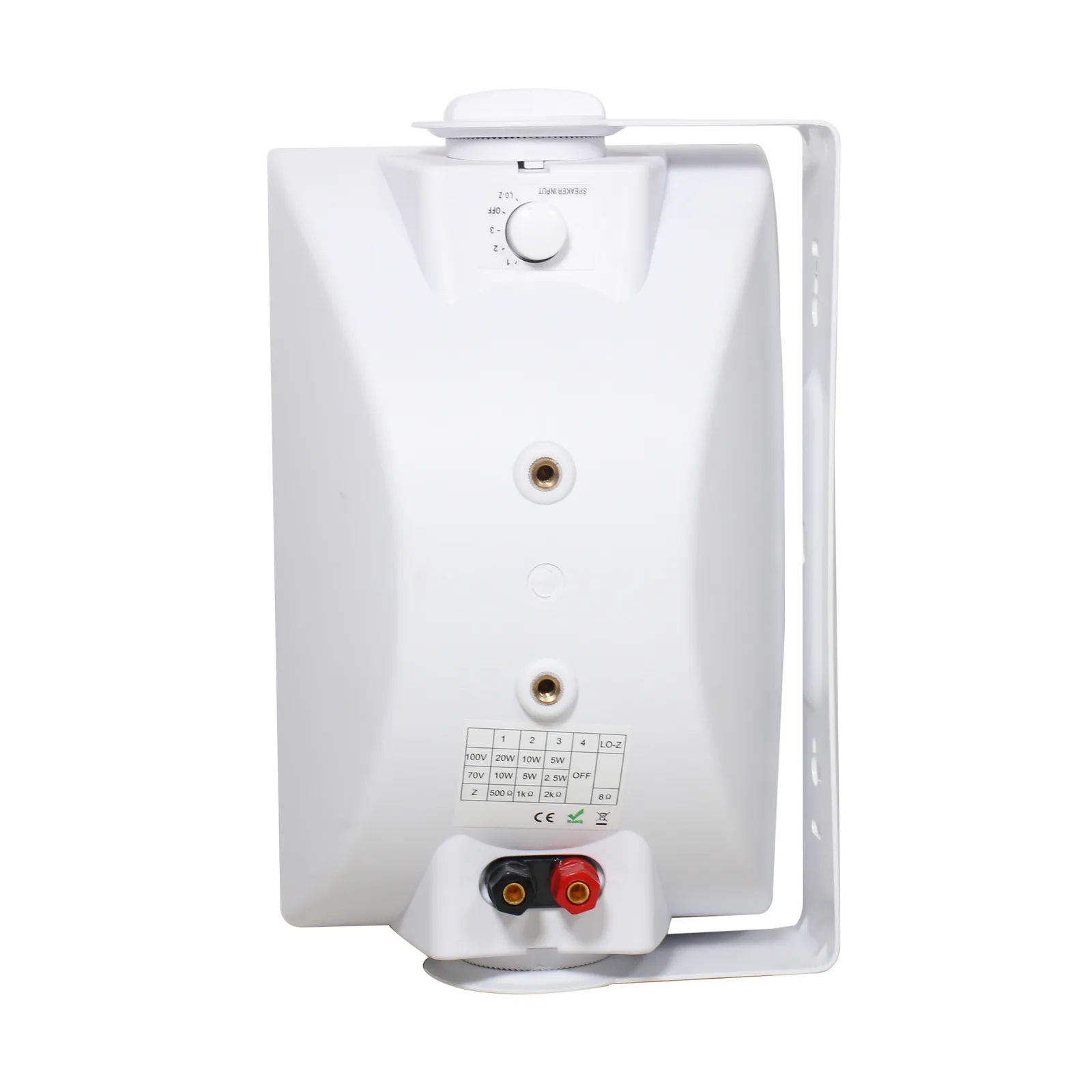

High Fidelity Wall-mounted Speakers
الكود: EC-420W/B / WP-540W/B / WP-660W/B / WP-880W/B
Features: ● Good music reproduction ● Fashionable appearance ● Available in BLACK and WHITE color ● Suitable for conference room and high quality audio demand applications
المواصفات الفنية
MODEL
EC-420W/B / WP-540W/B / WP-660W/B / WP-880W/B
Power at 100V
5/10/20W; 20W@8 ohm / 10/20/40W; 40W@8 ohm / 15/30/60W; 60W@8 ohm / 20/40/80W; 80W@8 ohm
Power at 70V
2.5/5/10W; 20W@8 ohm / 5/10/20W; 40W@8 ohm / 7.5/15/30W; 60W@8 ohm / 10/20/40W; 80W@8 ohm
SPL (1W/1M)
90dB / 90dB / 91dB / 91dB
Max SPL@1M
103dB / 105dB / 108dB / 110dB
Freq. Response
60Hz-18KHz / 60Hz-18KHz / 60Hz-18KHz / 60Hz-18KHz
Dispersion Angel
90×80 degree / 90×80 degree / 90×80 degree / 90×80 degree
Product Size
250x160x150mm / 300x170x165mm / 345x200x195mm / 455x275x260mm
Installation
Wall-mounted / Wall-mounted / Wall-mounted / Wall-mounted
Enclosure Material
ABS / ABS / ABS / ABS
Weight
1.50Kg / 3.40Kg / 3.80Kg / 7.50kg
Finish
White/Black / White/Black / White/Black / White/Black
Speakers
3/4″ x1 (TREBLE) 4″x1(BASS) / 1″ x1 (TREBLE) 5″x1(BASS) / 1″ x1 (TREBLE) 6.5″x1(BASS) / 1″ x1 (TREBLE) 8″x1(BASS)
