HA Series 2-Channel Power Amplifier

أنظمة الصوت / مضخمات القدرة

HA Series 2-Channel Power Amplifier

الكود: EC-260 / HA-2120 / HA-2250 / HA-2500

The HA series amplifiers are comprehensive, all-in-one desktop type mixer-amplifier solutions for commercial and industrial applications. These low-cost units provide all necessary features in a simple building. Two line inputs with Euro block and RCA jack. Acceptable wide range input level. 60Watts ~ 480Watts output. Advanced protection system includeds current limiting, over current and thermal protections. Desktop type with rack mount bracket Two bands tone controls Low distortion and low noise level Compact size and light weight Ideal commercial and industrial use Controls Front: 2 Channel Volume Control & Tone Control . Rear: Parallel selector, 100V/8ohm selector, HPF Switch. Connectors Euro Block for Channel 1-2 Input and link output. RCA for Channel 1-2 Input. Euro Block for Speaker Output. Indicators : Power, Signal, Signal, Clip and Protect. Protection : Current Limiting, Thermal & DC Offset Protection. Cooling : FAN Cooling.

استفسار واتساب طلب عرض سعر تحميل الكتالوج

المواصفات الفنية

Model
EC-260 / HA-2120 / HA-2250 / HA-2500
Rated Power at 8ohm
4x30W / 4x60W / 4x120W / 4x240W
Bridged Power at 100V
2x60W / 2x120W / 2x240W / 2x480W
Input sensitivity / Impedance
-0dBu/10kohm Unbalanced / Balanced
Power Supply Voltage
AC 100-120V, 50/60Hz or AC220-240V, 50/60Hz
Power Consumption
195W / 360W / 635W / 1120W
Speaker Output
100V / 8Ω
Frequency Response
80Hz~17KHz ( +1dB /-3dB )
S/N Ratio
>80dB (with A-Weight)
T.H.D
<1% (at rated power, 1kHz)
Working Humidity
0.9
Output Channel
2 channel
Tone Controls
Bass:100Hz(±10dB), Treble:10KHz(±10dB)
Working Temperature
0 ℃ ~+40 ℃
Product Dimension (WxHxD)
215*44*330 mm (Half-U)
Net Weight
3.5kg / 3.3kg / 3.3kg / 3.3kg

الاستخدامات

Two line inputs with Euro block and RCA jack.
Acceptable wide range input level.
60Watts ~ 480Watts output.
Advanced protection system includeds current limiting, over current and thermal protections.

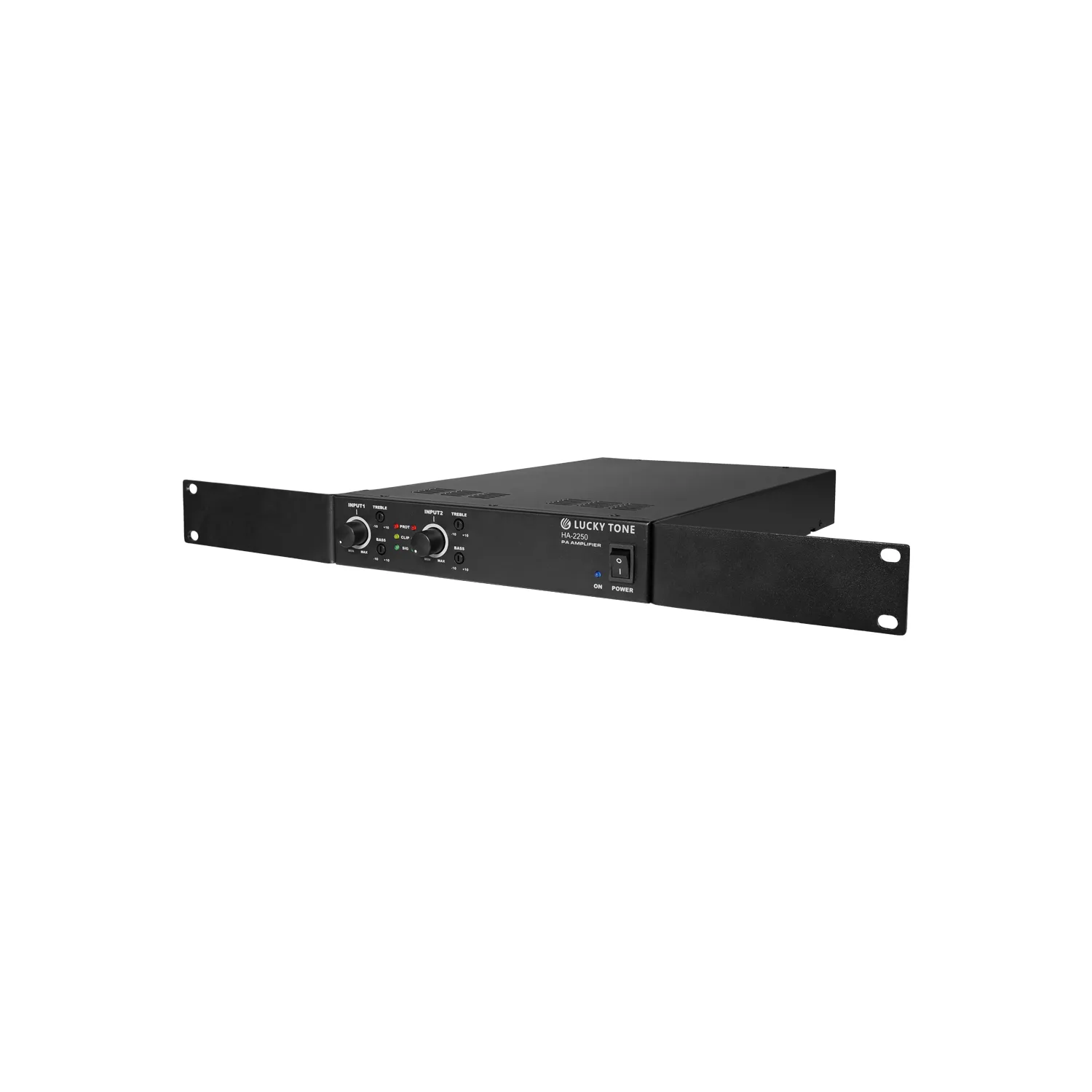

Desktop type with rack mount bracket
Two bands tone controls
Low distortion and low noise level
Compact size and light weight
Ideal commercial and industrial use

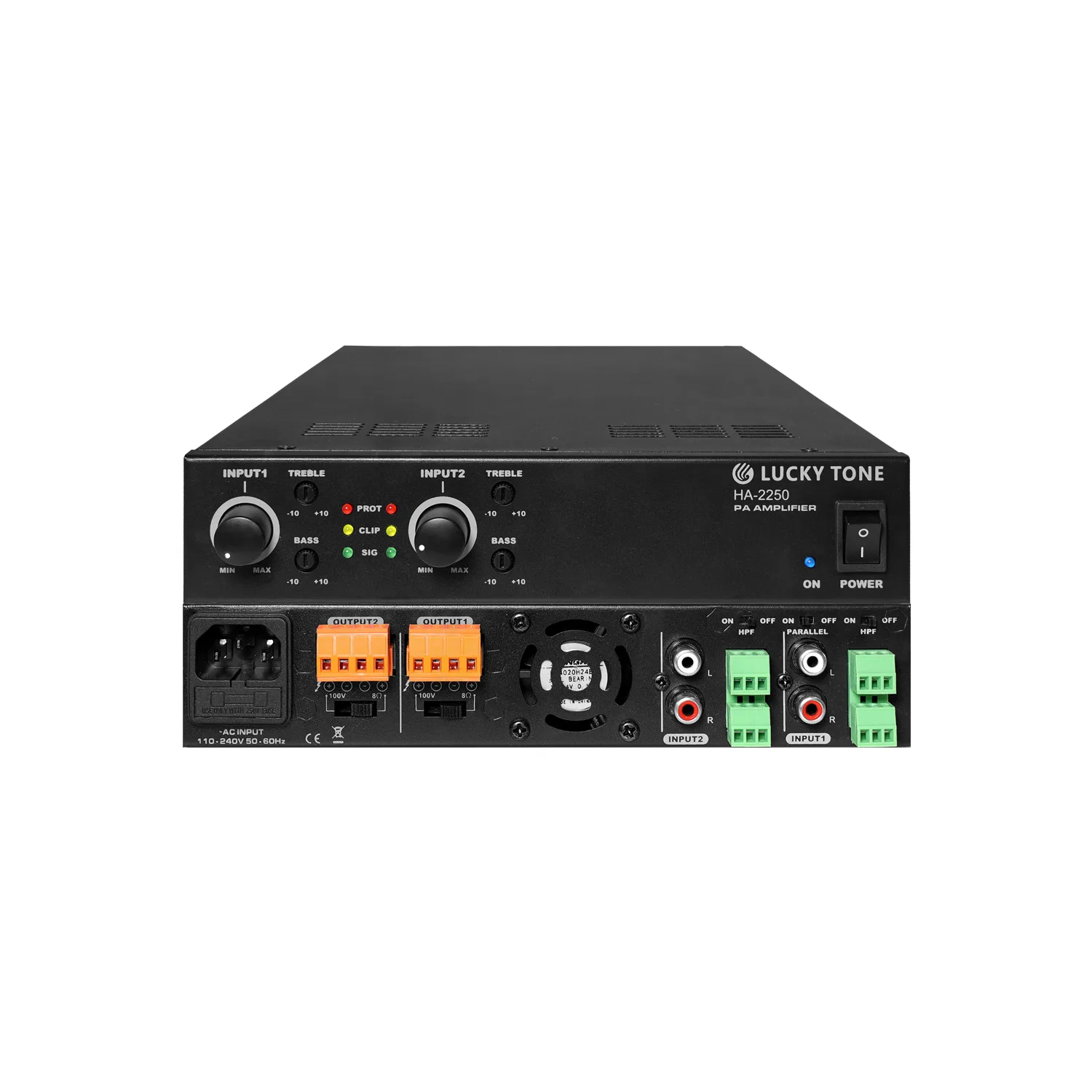

Controls

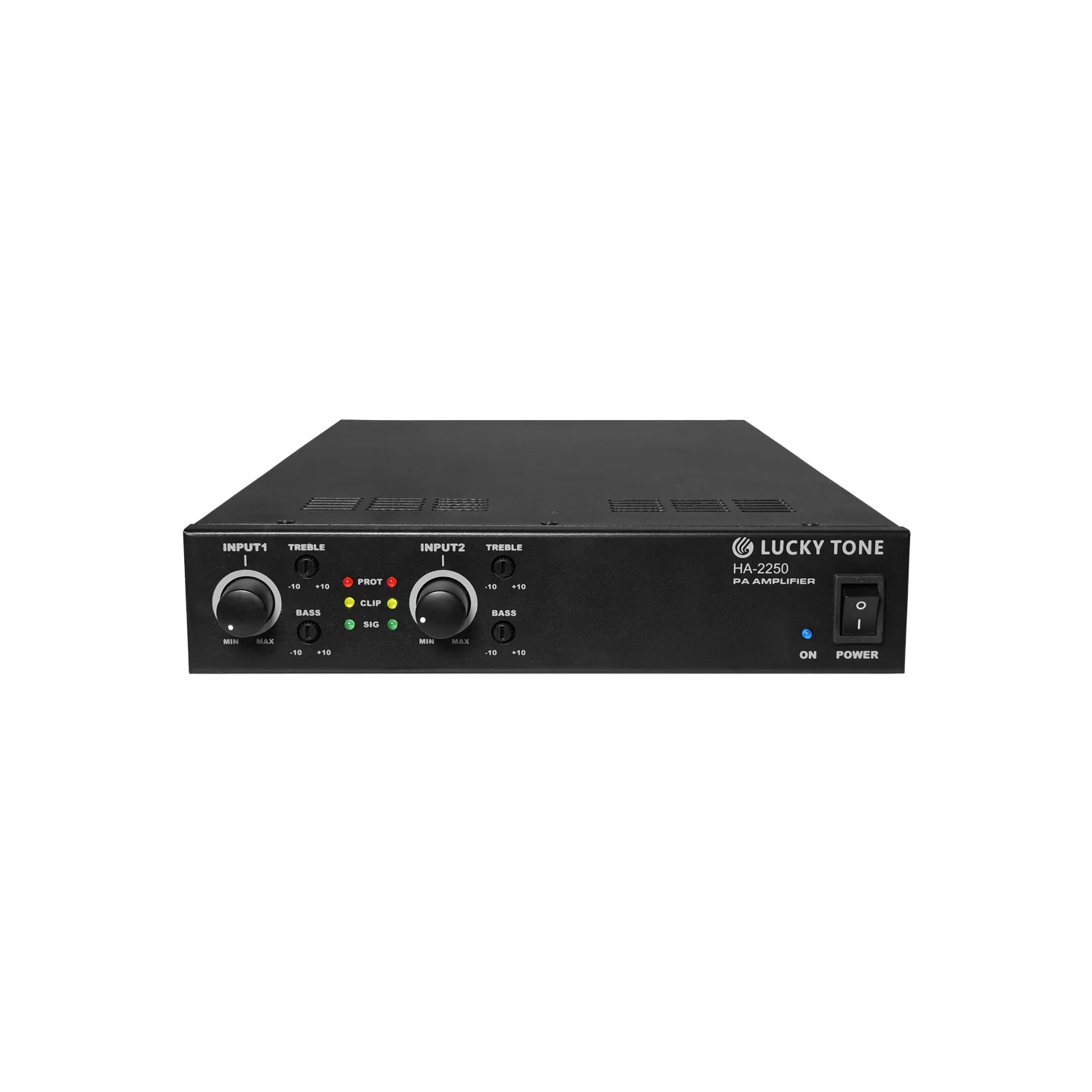

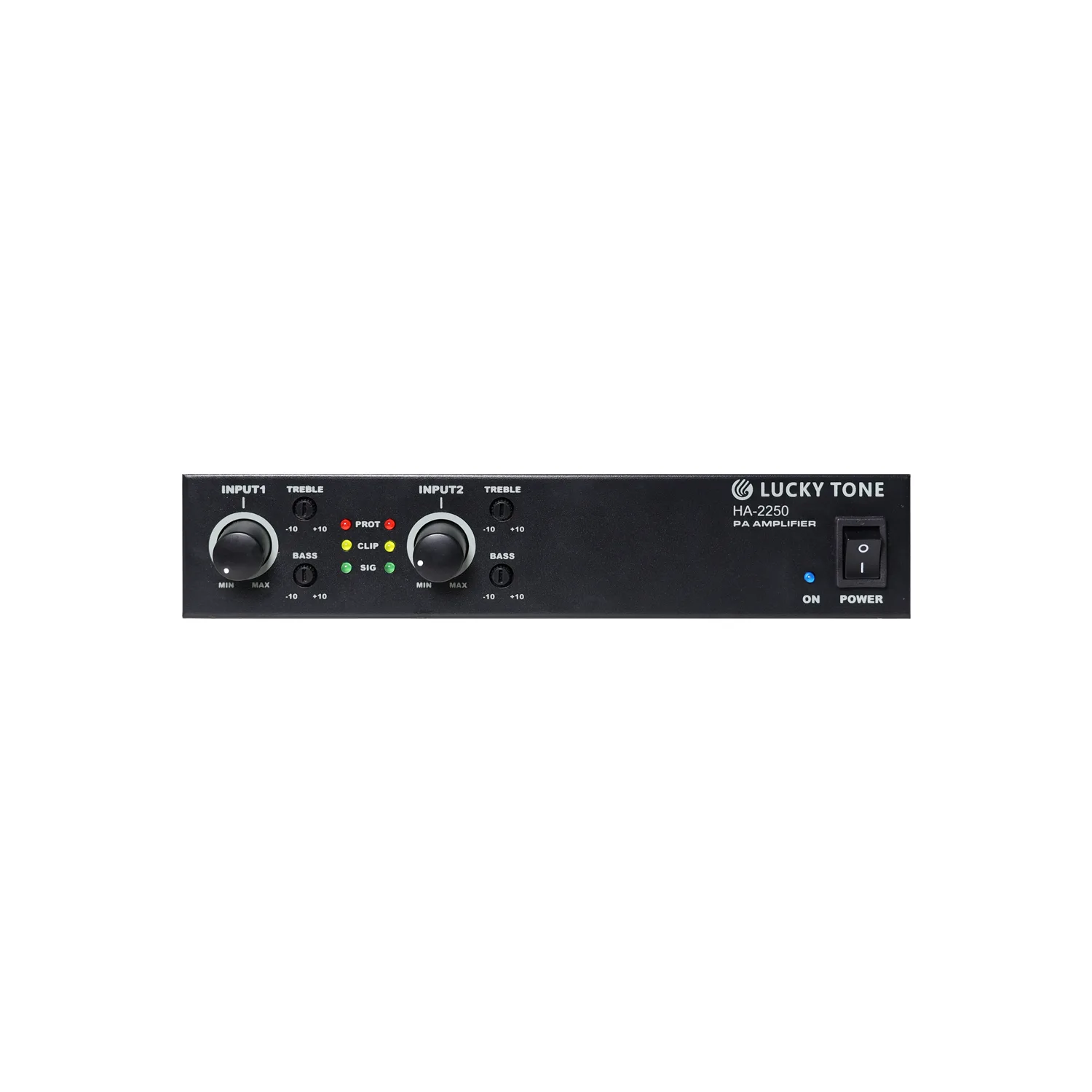

Front: 2 Channel Volume Control & Tone Control .

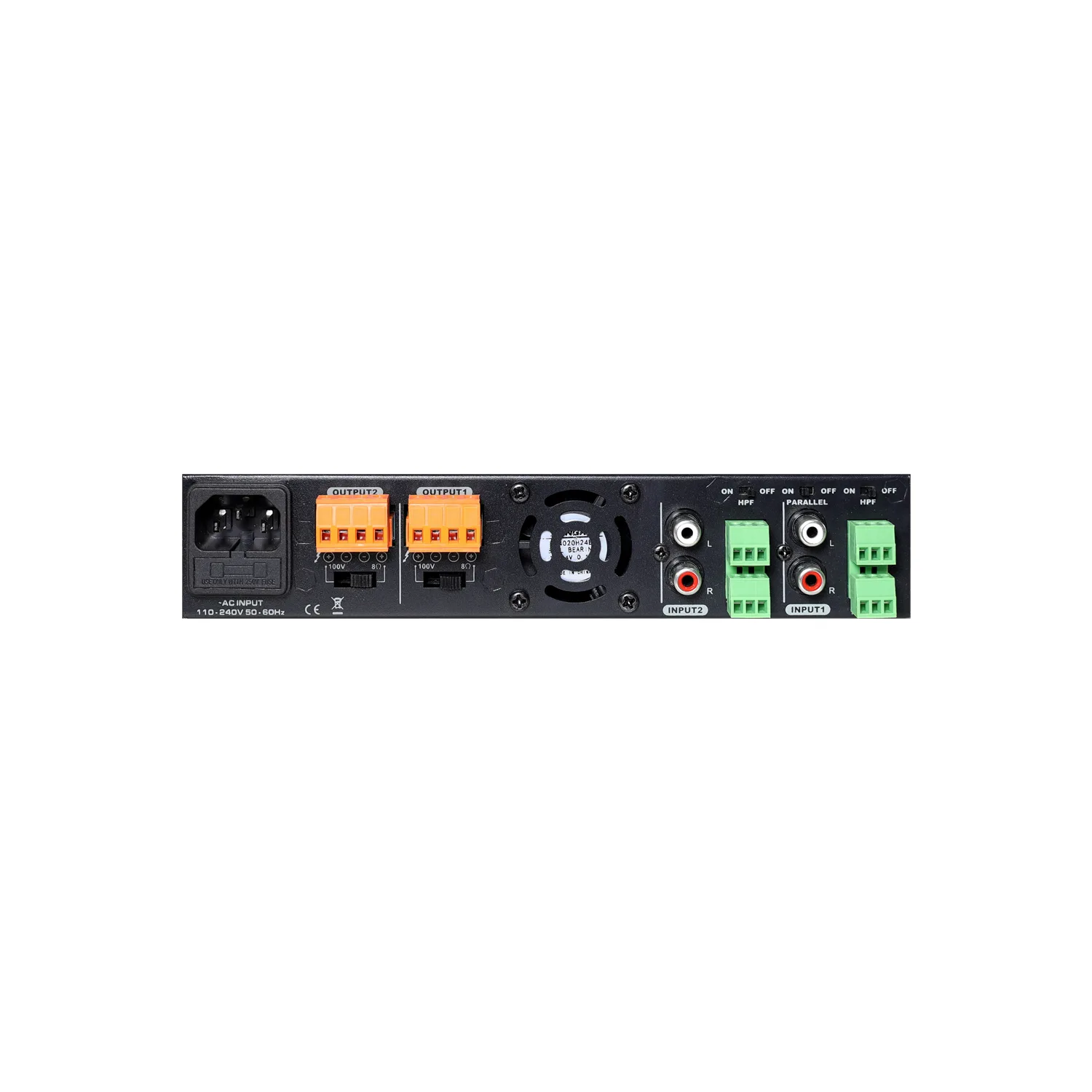

Rear: Parallel selector, 100V/8ohm selector, HPF Switch.
Connectors
Euro Block for Channel 1-2 Input and link output.
RCA for Channel 1-2 Input.
Euro Block for Speaker Output.
Indicators : Power, Signal, Signal, Clip and Protect.
Protection : Current Limiting, Thermal & DC Offset Protection.
Cooling : FAN Cooling.
