Compact Ceiling Speaker System
الكود: EC-215R

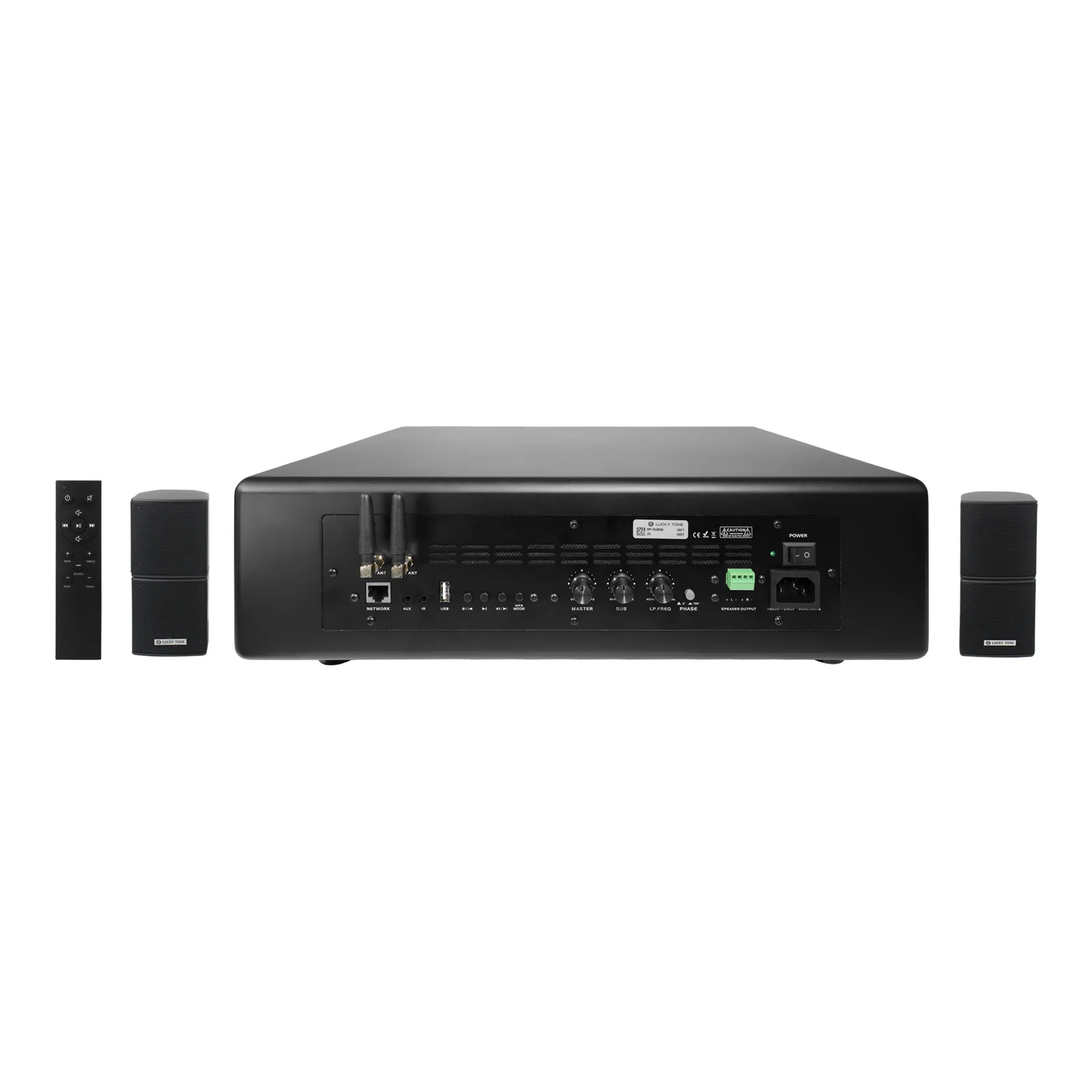

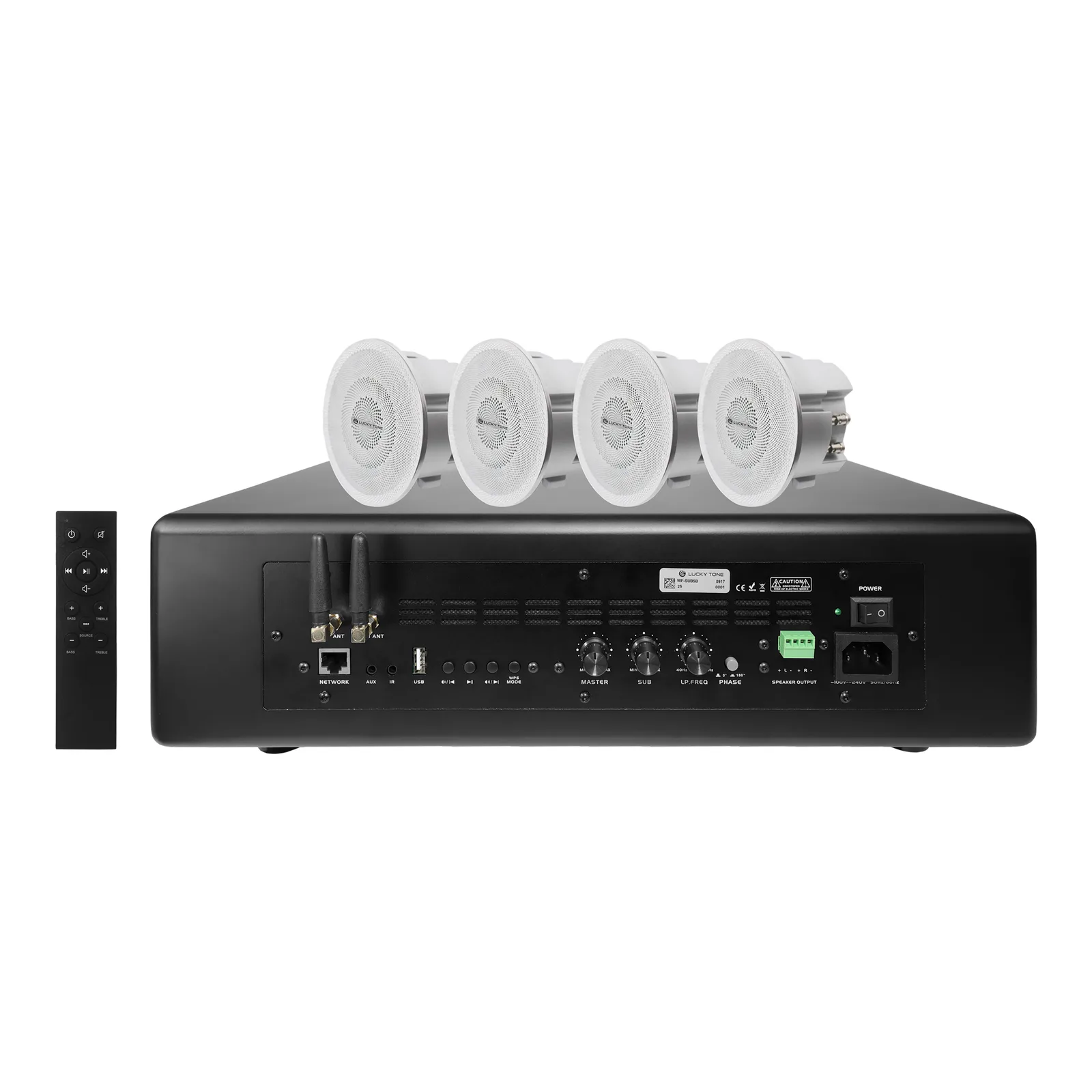

Description: Combo5-2 compact ceiling speaker system can produce effective acoustic sounds in commercia spaces such as offices, gym, SPA, hotels, and educational institutions. Ordering code: Combo5-2: WF-SUB5B/WF-SUB5W 5.25″ WiFi Subwoofer with 4 pcs of EC-215R Ceiling Speakers Combo5-3: SUB5B/SUB5W 5.25″ Passive Subwoofer with 4 pcs of EC-215R Ceiling Speakers
المواصفات الفنية

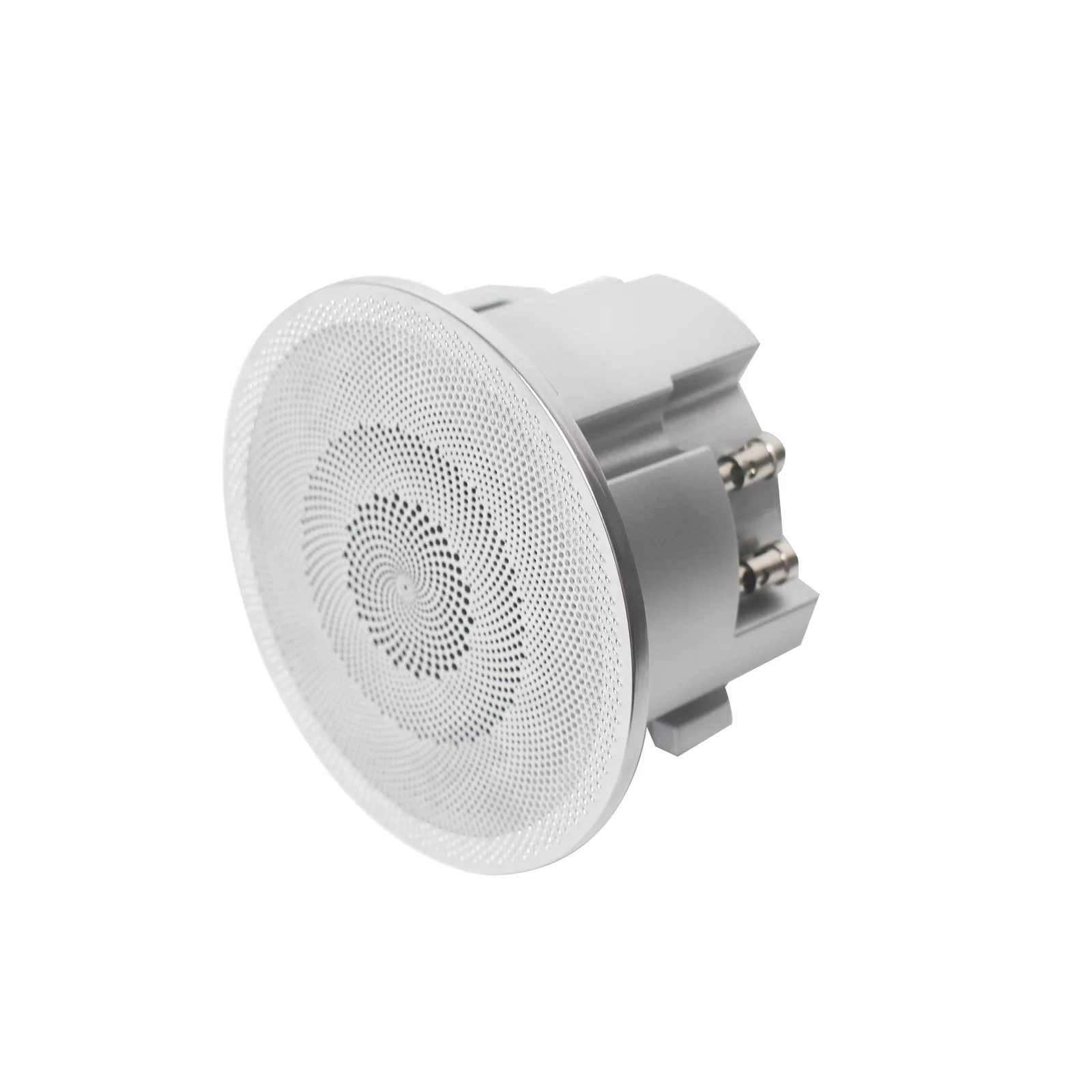

Model

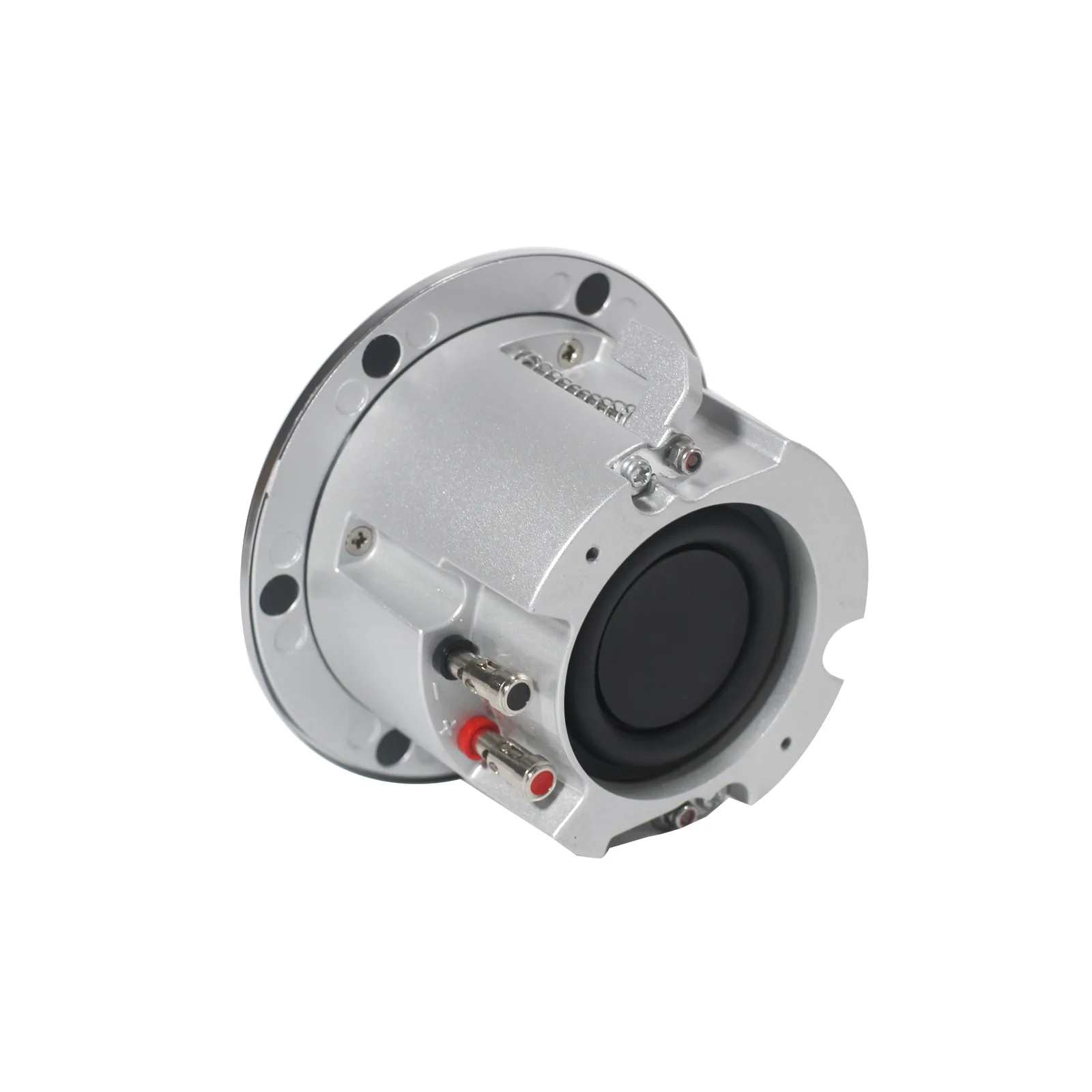

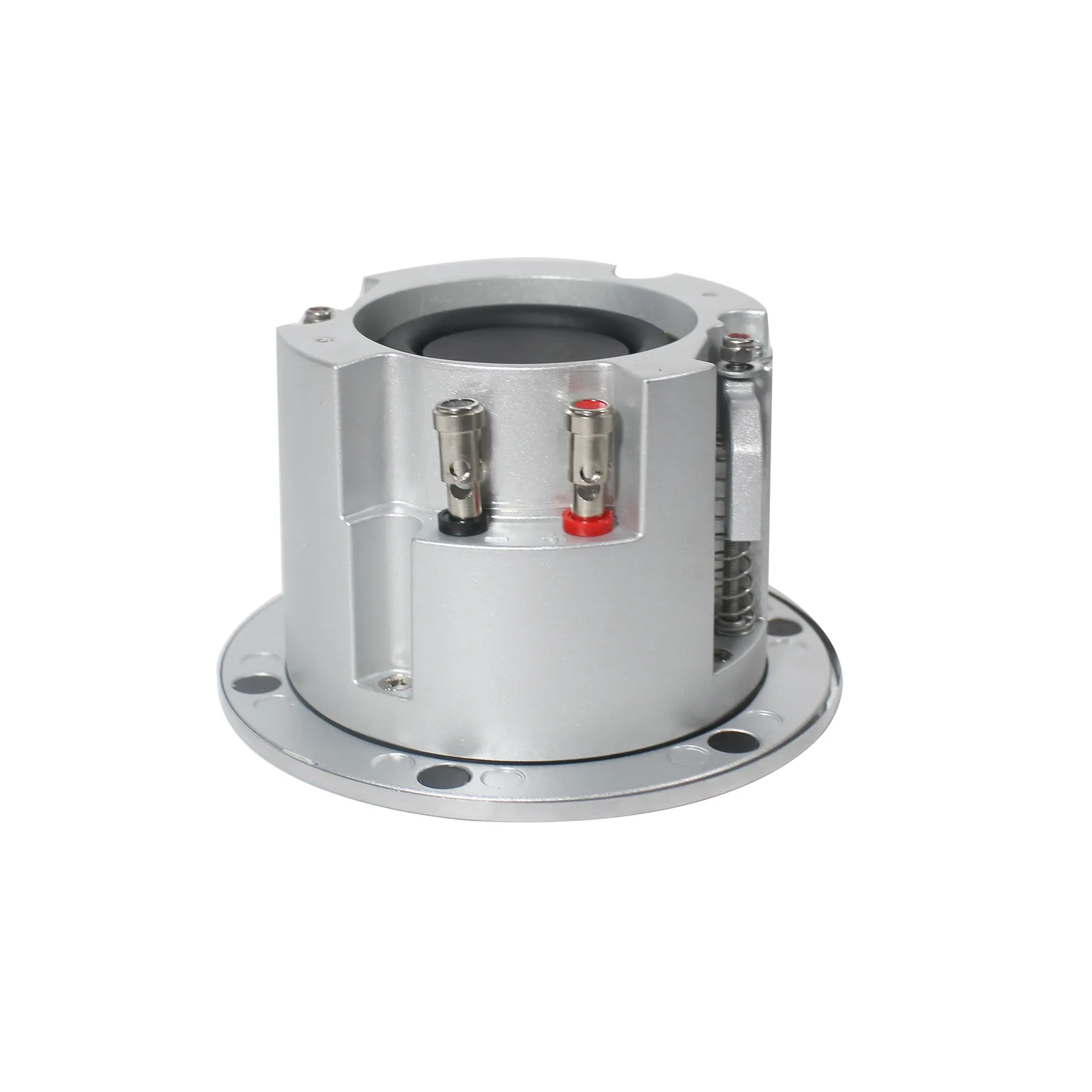

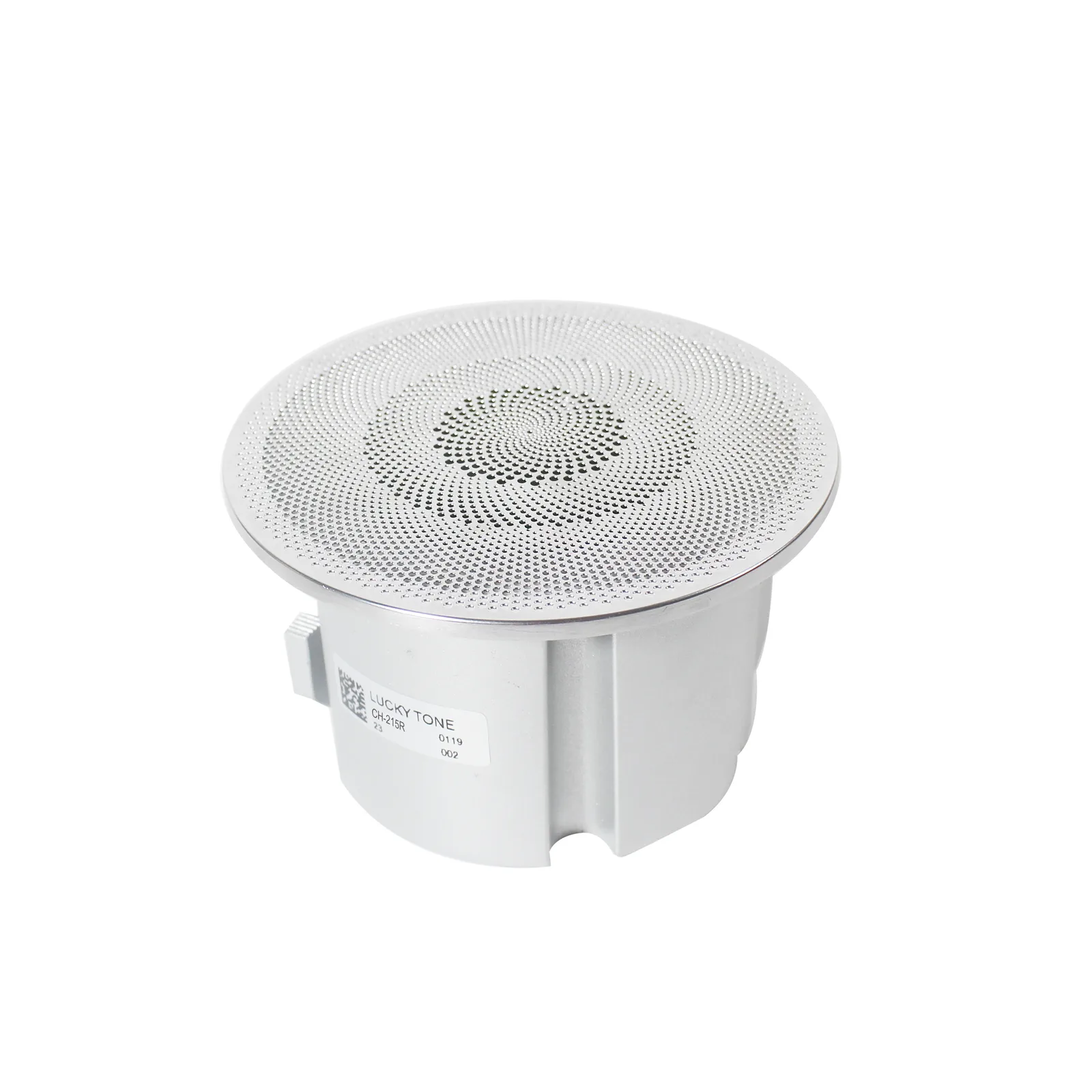

EC-215R
Product Type
Waterproof Aluminum Ceiling Speaker with Bass Radiator
Rated Power
15W
Max. Power
40W
Impedance
4ohm
SPL (1W/1M)
86d
Freq. Response
70Hz-20Khz
Cutout Size
Dia 86mm
Product Size
Dia 110*81.4mm (H)
IP Rating
IP66
Installation
In-ceiling
Color
Silver
Speakers
2.5″ Full range with bass radiator

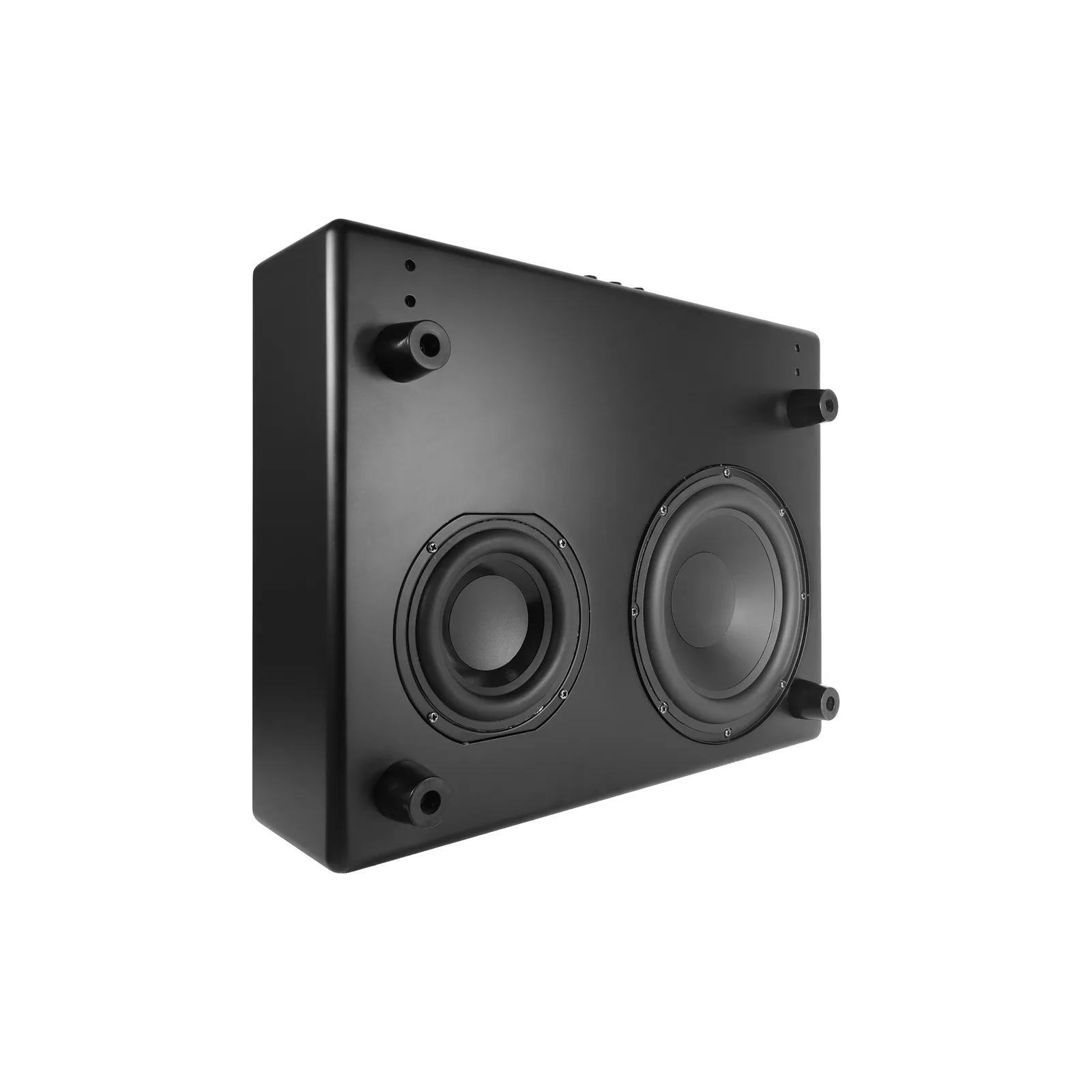

Model

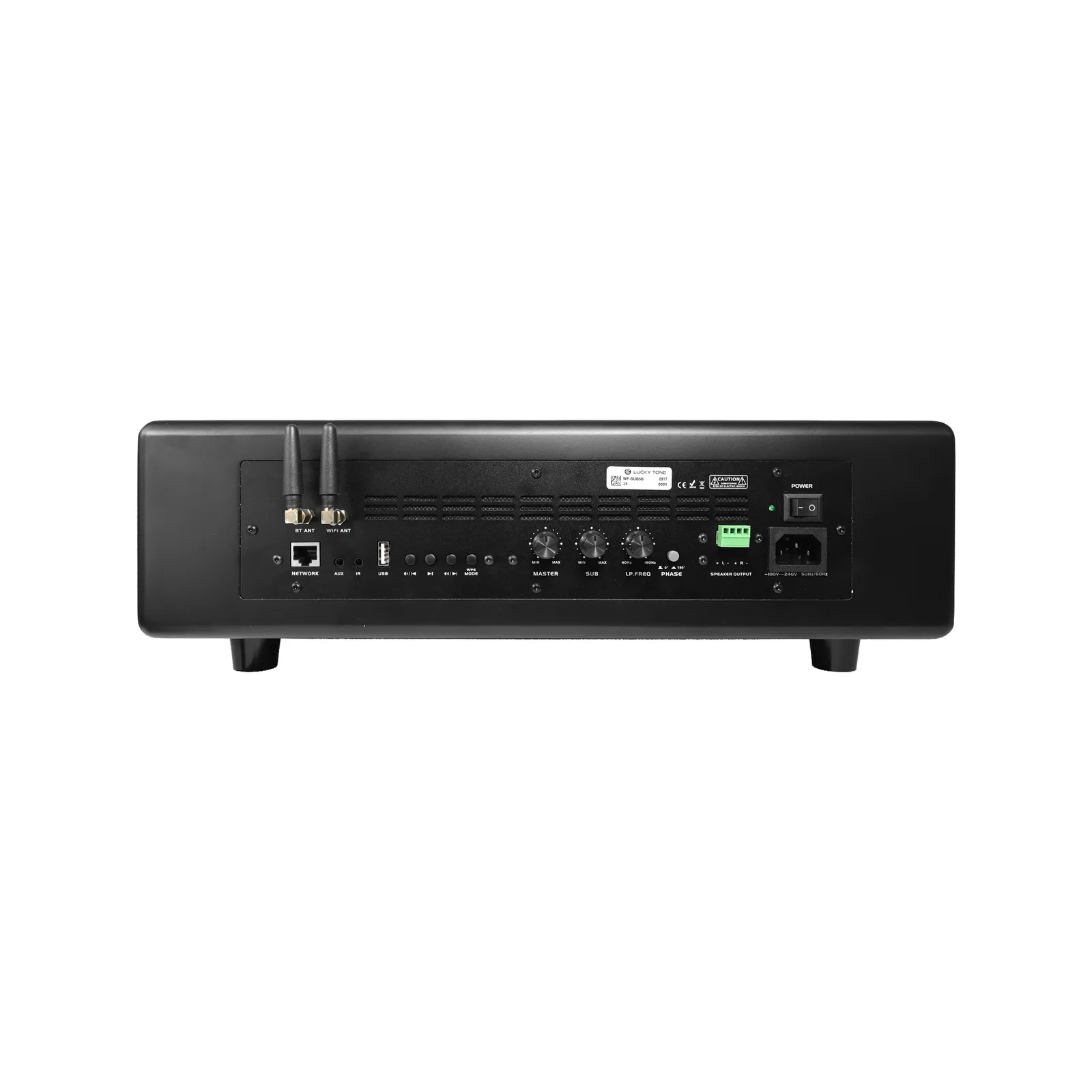

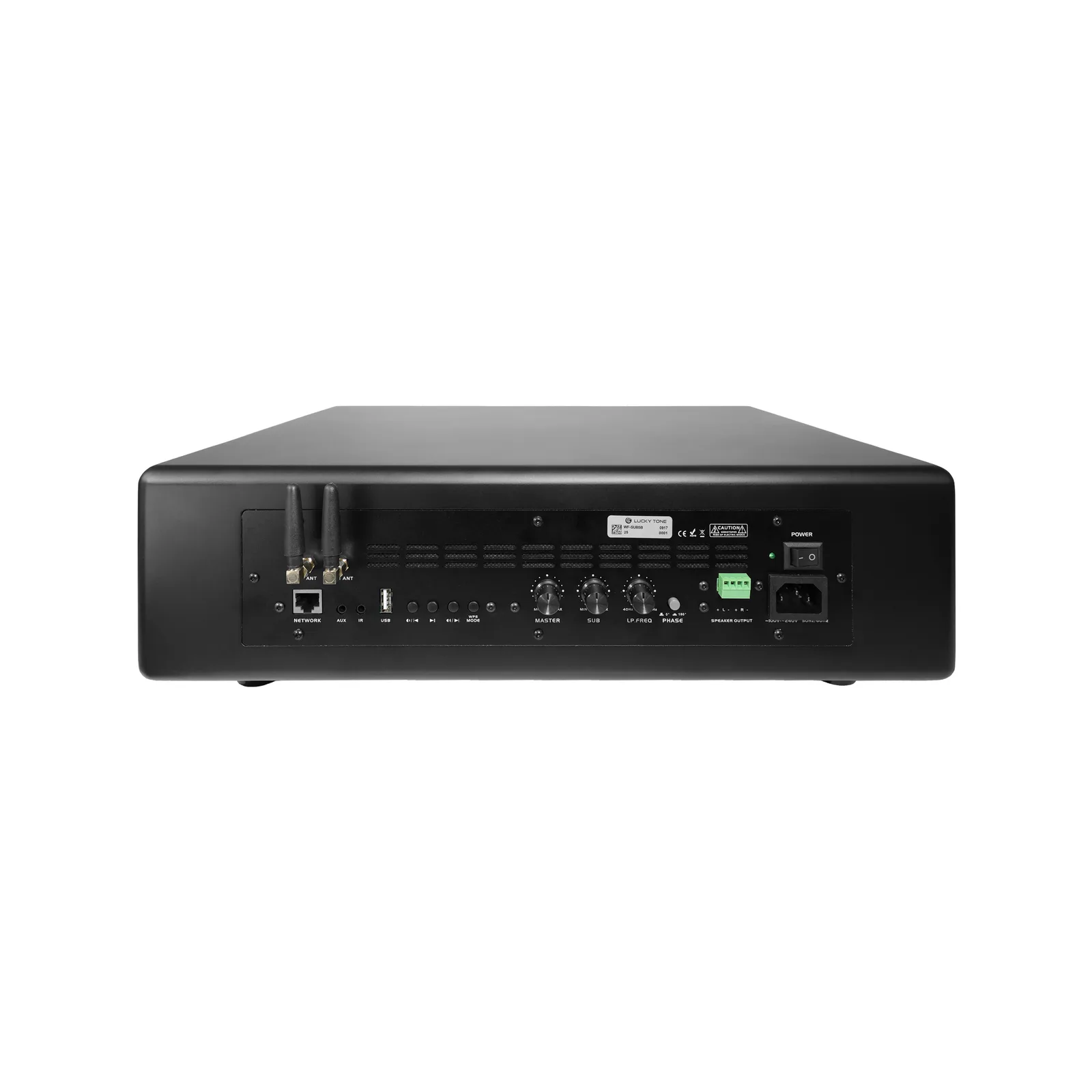

WF-SUB5W/WF-SUB5B
Product Type
5” WiFi Subwoofer with WiFi & Bluetooth
Rated Output Power
For the subwoofer: 150W@4 ohm
For the stereo speaker outputs: 2x40W@4 ohm
Impedance
4-8ohm
Sensitivity
840MV

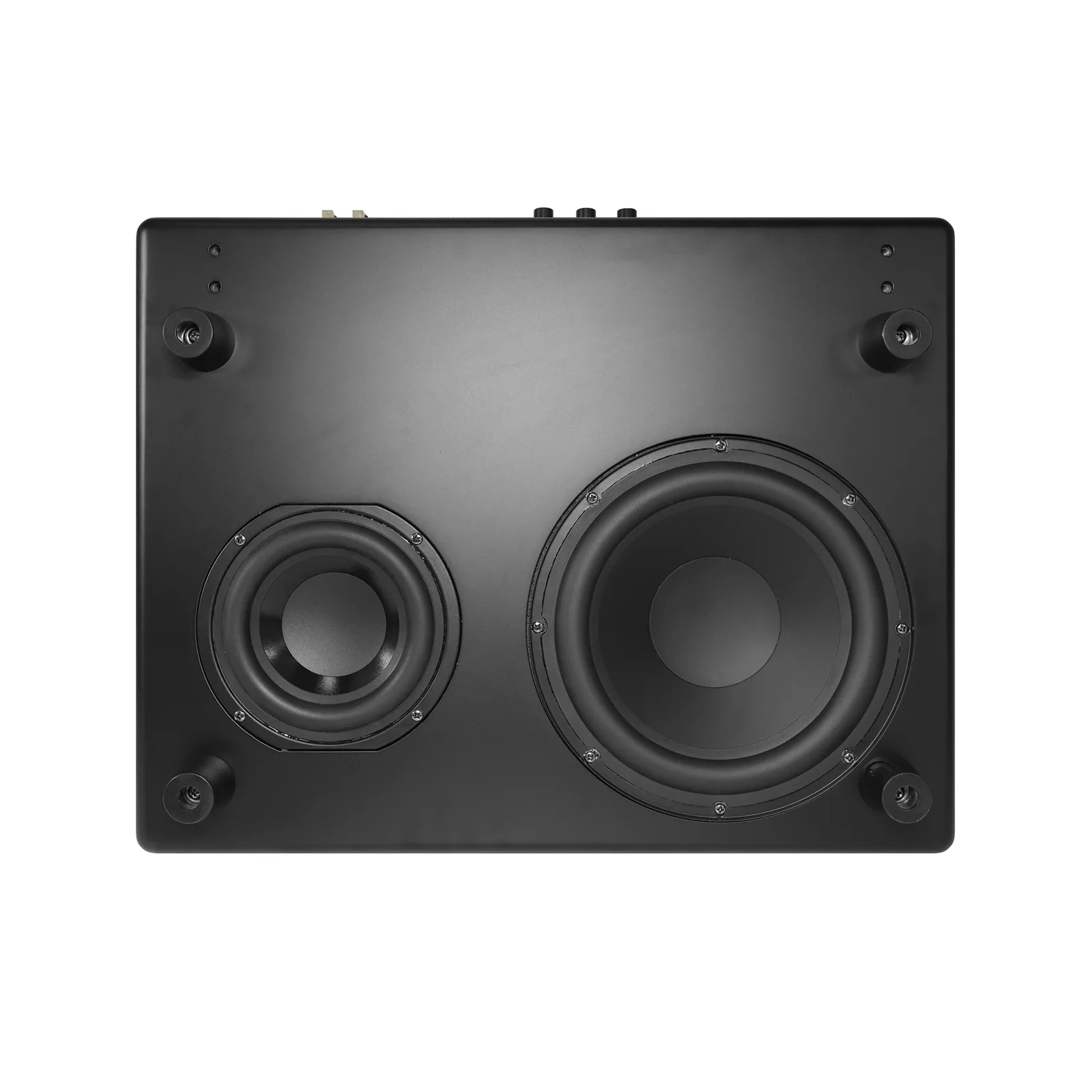

Speaker Size
5.25″ DVC Subwoofer with 35mm Voice Coil
Input Voltage
AC100V-240V, 50/60HZ
Frequency Response
20-20KHz
Subwoofer Frequency Response
40Hz-160Hz
Audio Inputs
WiFi, Bluetooth, USB, AUX in
Materials
MDF
Installation
On Wall/On Floor/On Ceiling
Color
White/Black
Product Size (L x W x H)
450×350×150mm
Net Weight
7.7KG
