أنظمة الصوت / سماعات النداء العام

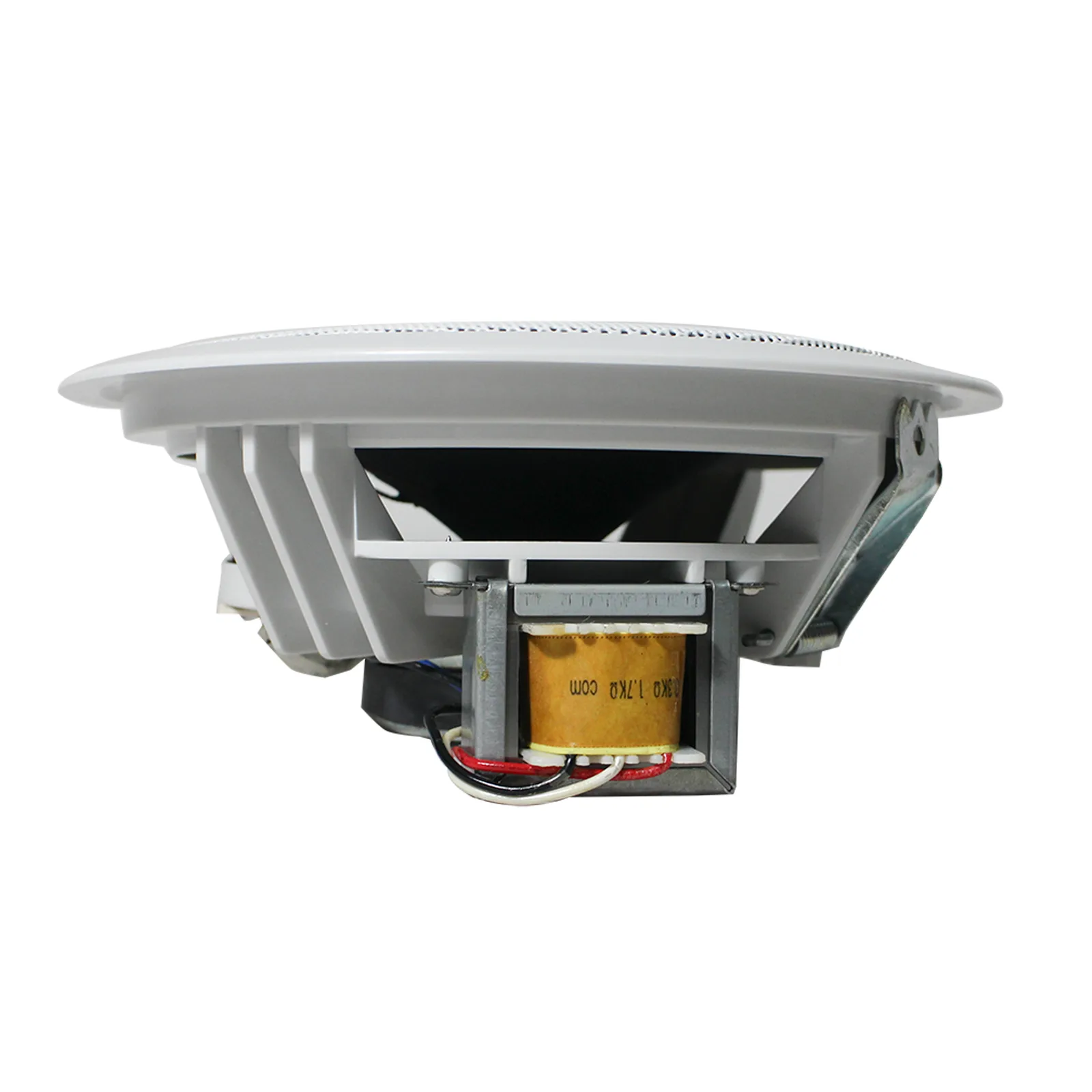

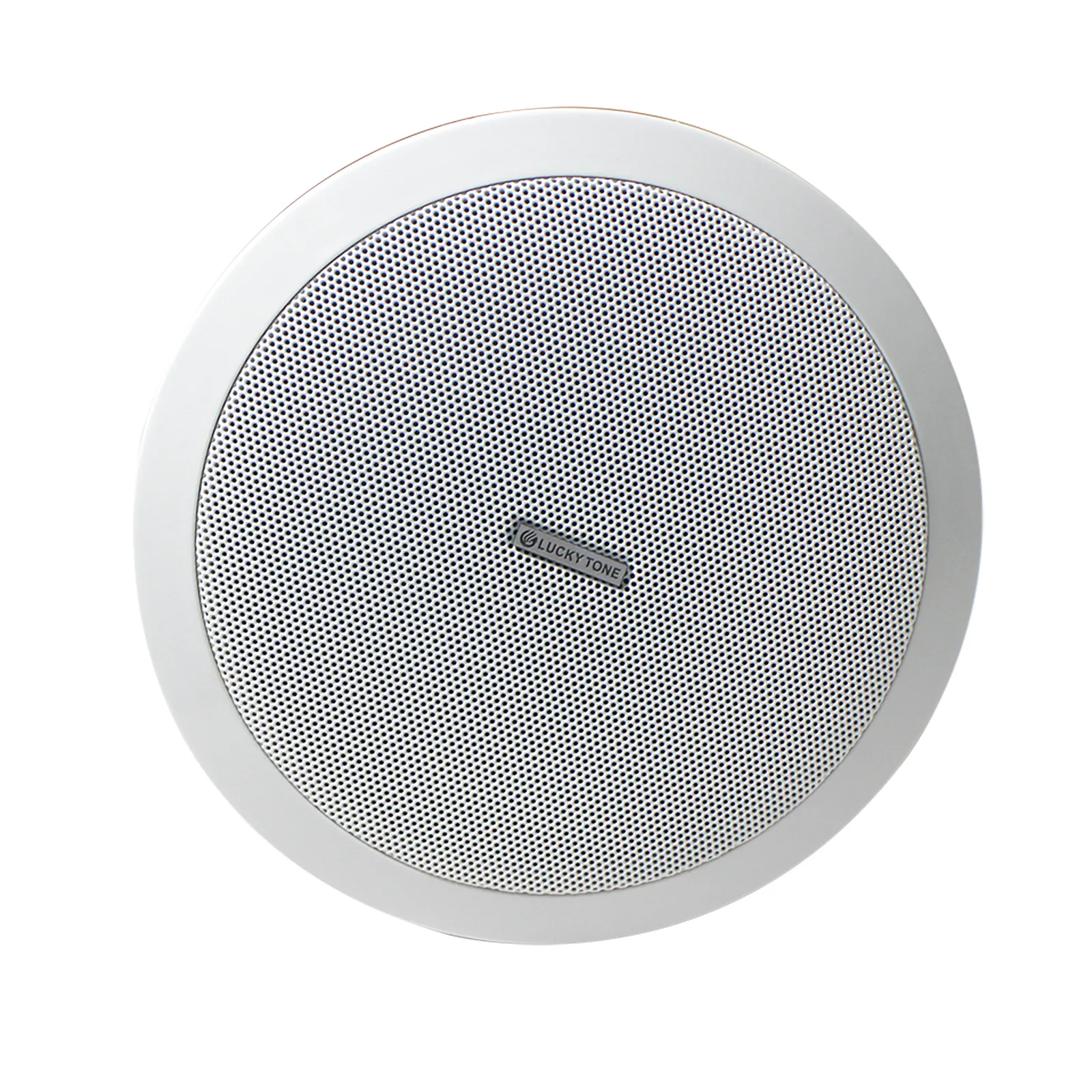

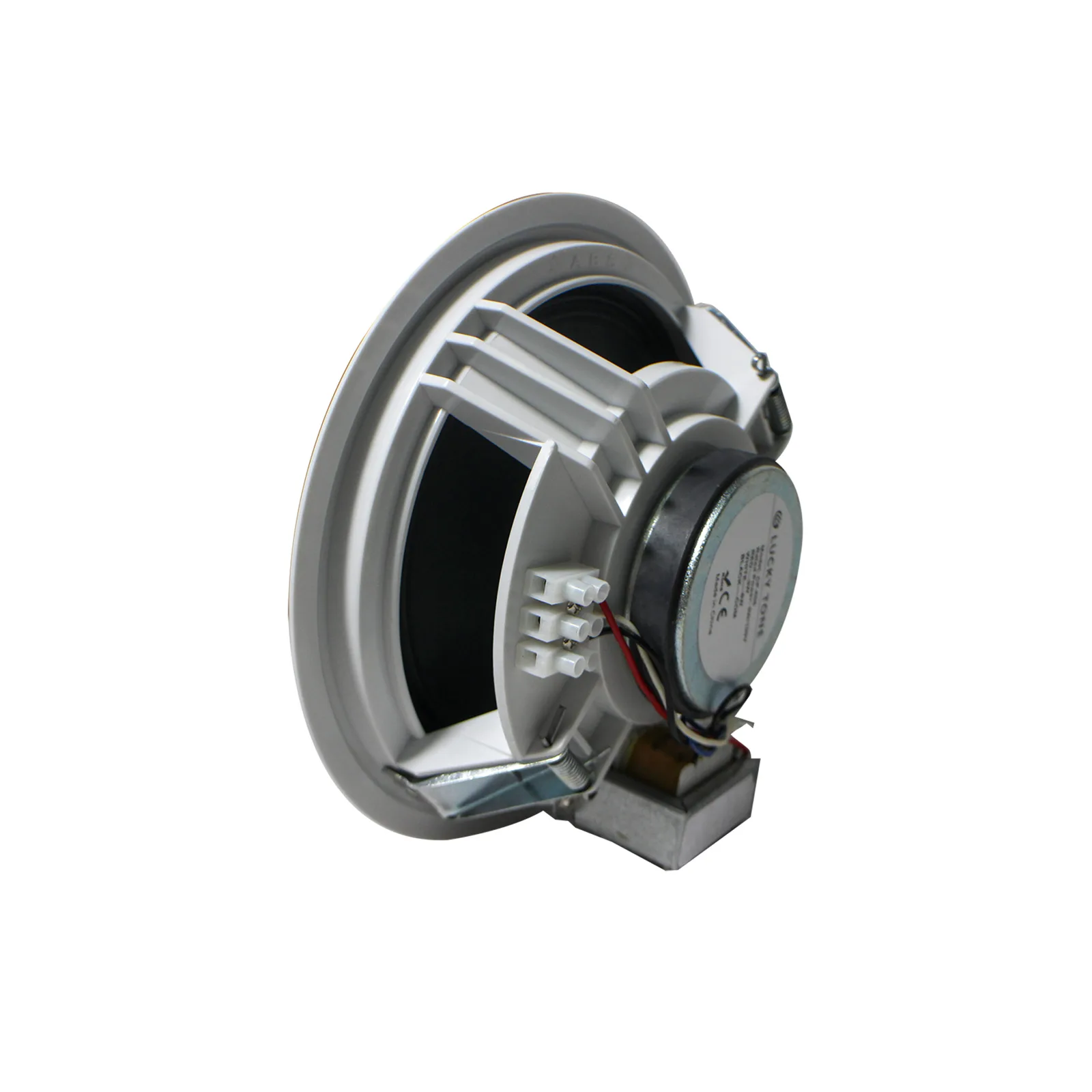

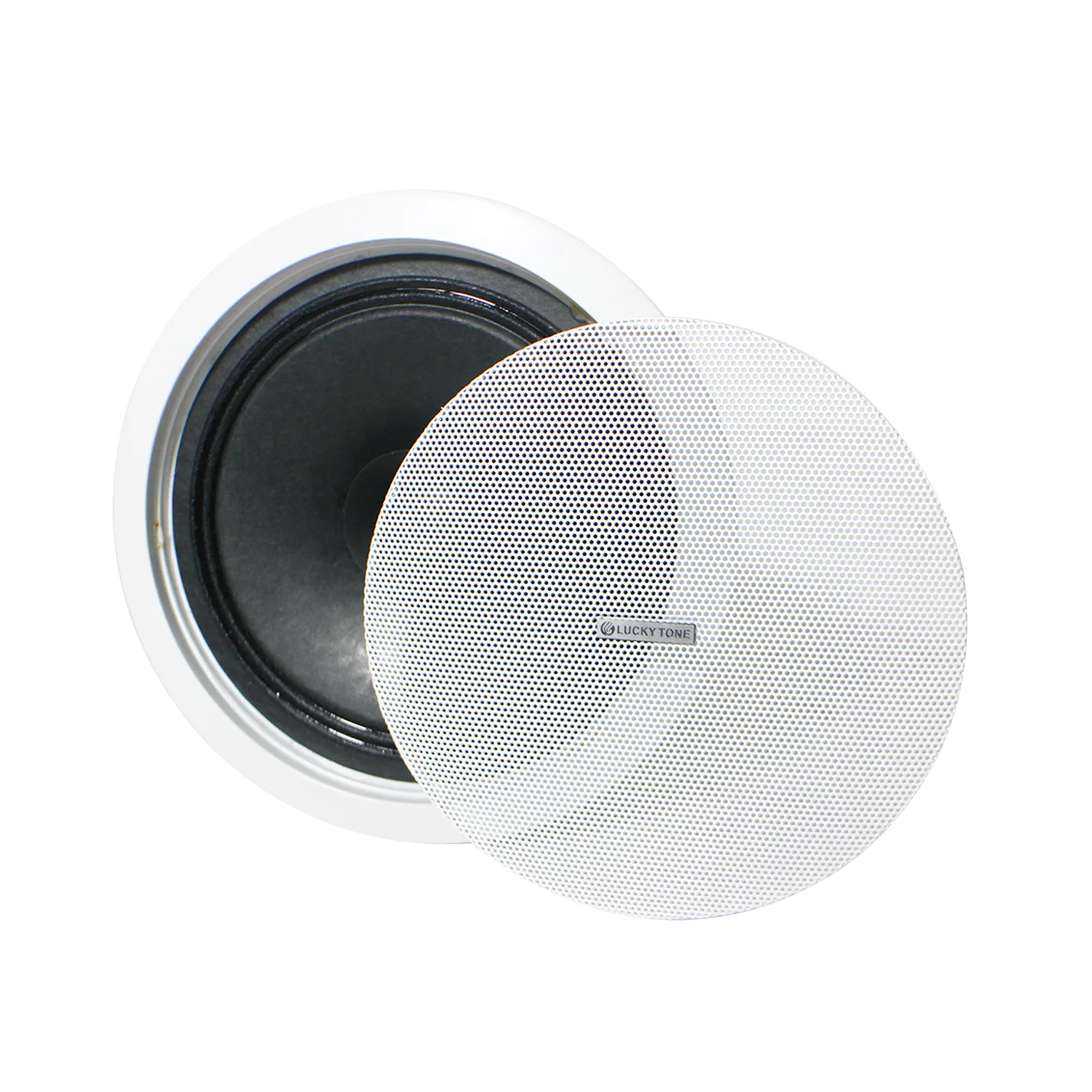

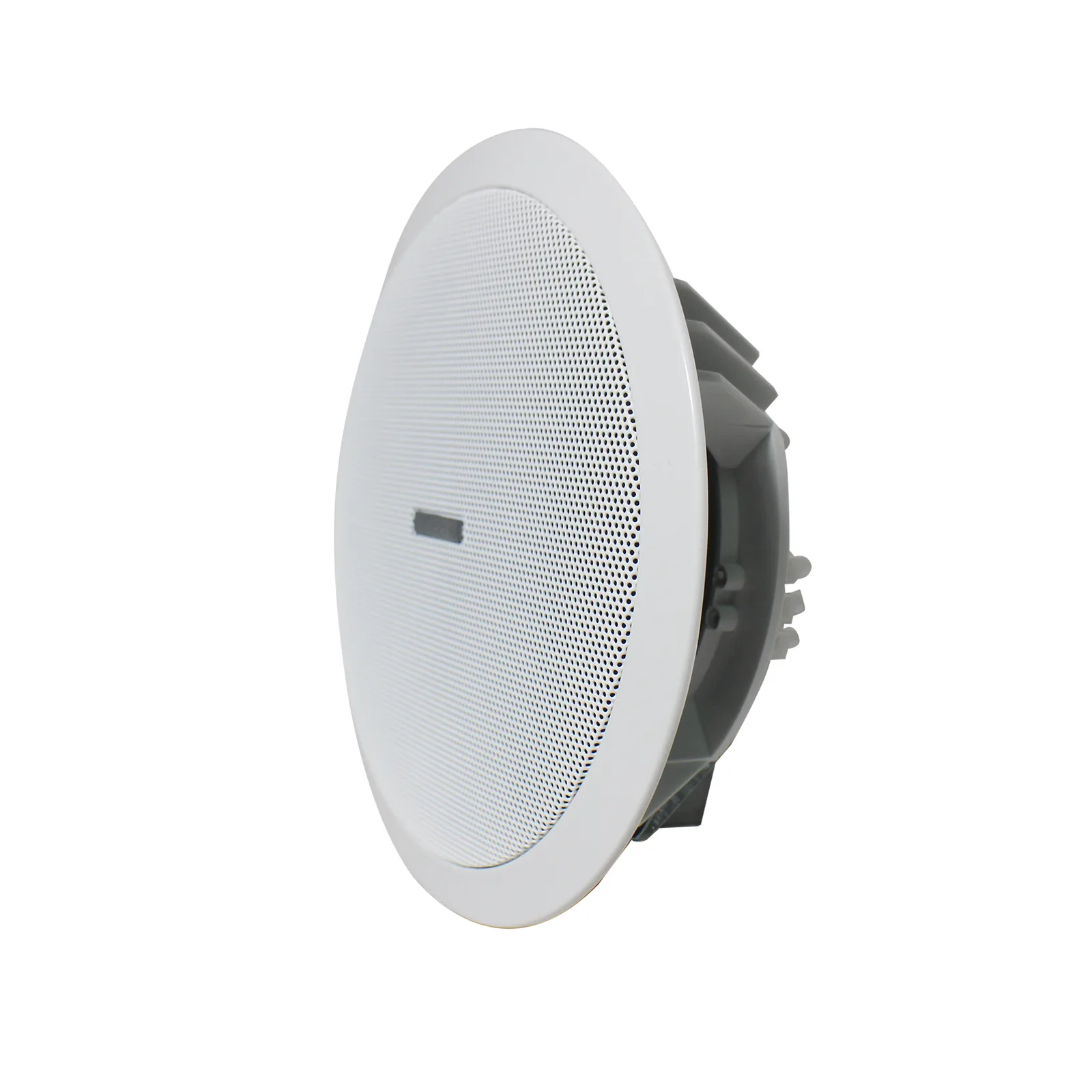

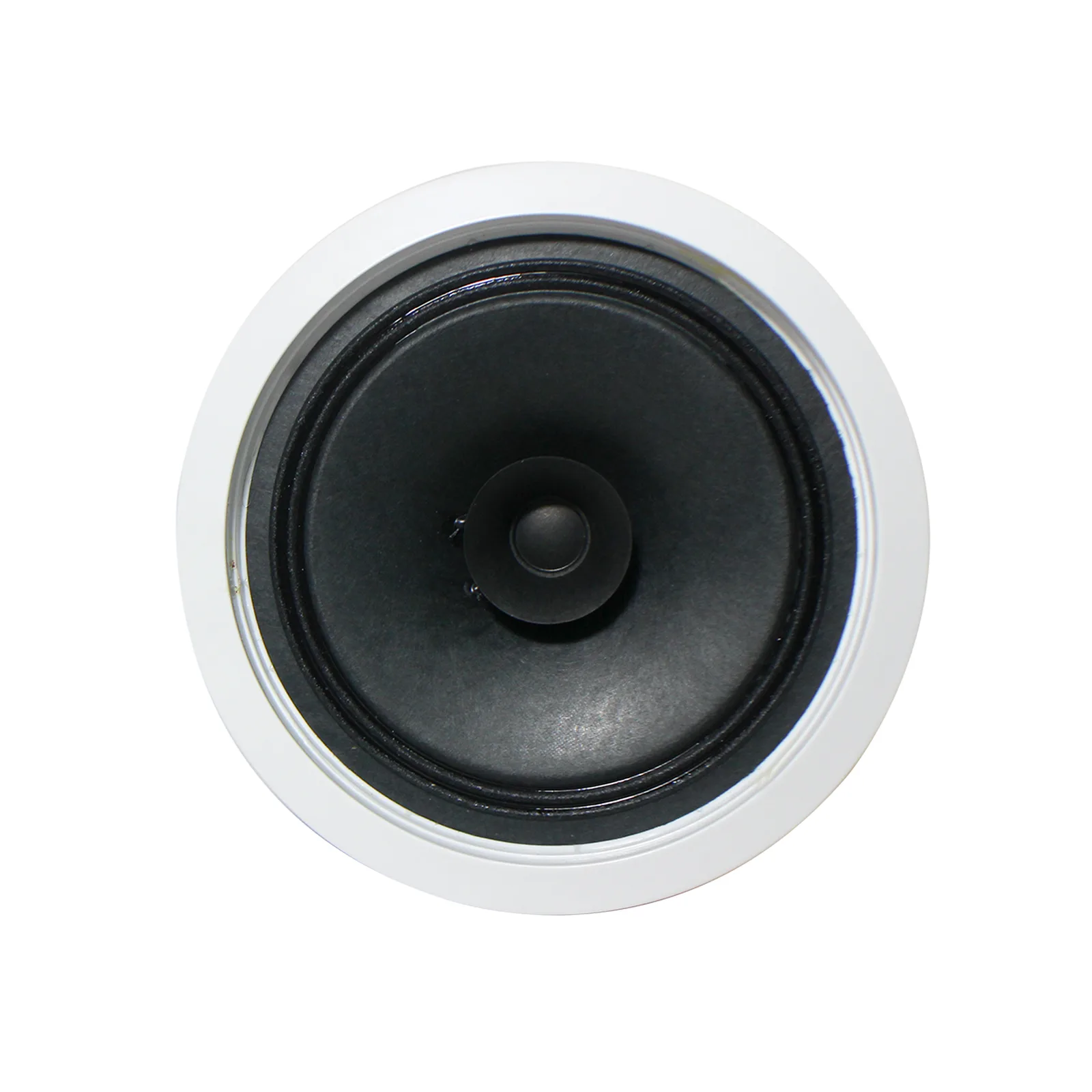

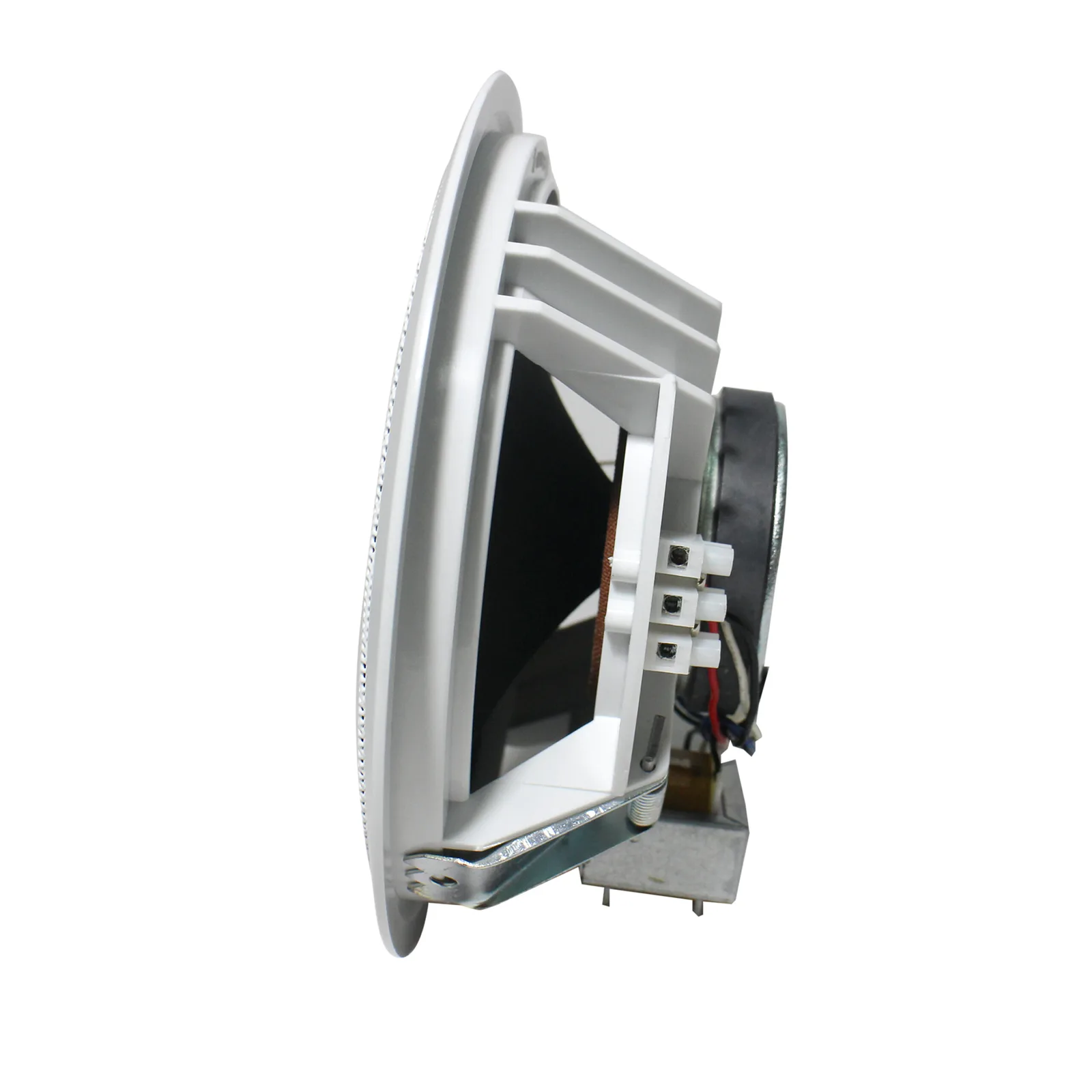

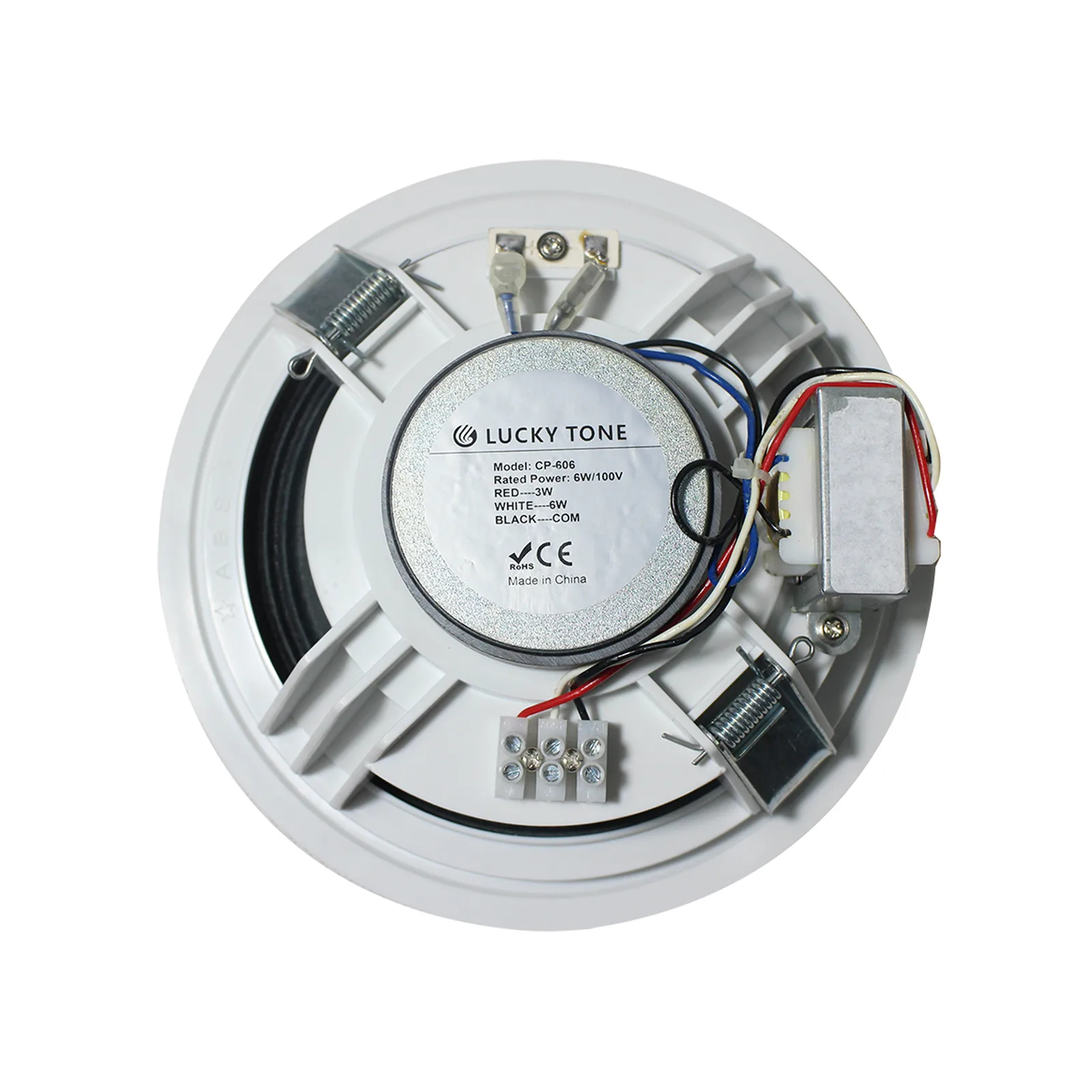

Coaxial Ceiling Speaker with Optional Dome
الكود: EC-521T; CH-521TH / CP-621T; CP-621TH / CP-821T; CP-821TH
● High Performance 2 way speaker ● With heavy duty fire dome and power selection switch ● Good for high music demand applications
المواصفات الفنية
MODEL
EC-521T; CH-521TH / CP-621T; CP-621TH / CP-821T; CP-821TH
Power at 100V
20 / 10 / 5 / 2.5W, 8 Ohm / 30 / 15 / 7.5 / 3.8W, 8 Ohm / 40 / 20 / 10 / 5W, 8 Ohm
Power at 70V
10 / 5 / 2.5 / 1.25W, 8 Ohm / 15 / 7.5 / 3.8 / 1.9W, 8 Ohm / 20 / 10 / 5 / 2.5W, 8 Ohm
SPL (1W/1M)
88dB / 88dB / 88dB
Max SPL@1M
101dB / 102dB / 103dB
Freq.Response
100Hz-20KHz / 90Hz-20KHz / 50Hz-20KHz
Cutout Size
Dia 170mm / Dia 200mm / Dia 240mm
Product Size
Dia 203x80mm(H); x145mm(H) / Dia 230x90mm(H); x150mm(H) / Dia 270x105mm(H); x185mm(H)
Installation
Inceiling / Inceiling / Inceiling
Enclosure Material
ABS / ABS / ABS
Weight
1.25Kg; 1.70Kg / 1.60Kg; 2.20Kg / 2.10Kg; 3.1Kg
Finish
White / White / White
Speakers
1″ x 1 (TREBLE); 5.25″ x 1 (BASS) / 1″ x 1 (TREBLE); 6″ x 1 (BASS) / 1″ x 1 (TREBLE); 8″ x 1 (BASS)
