أنظمة الصوت / سماعات النداء العام

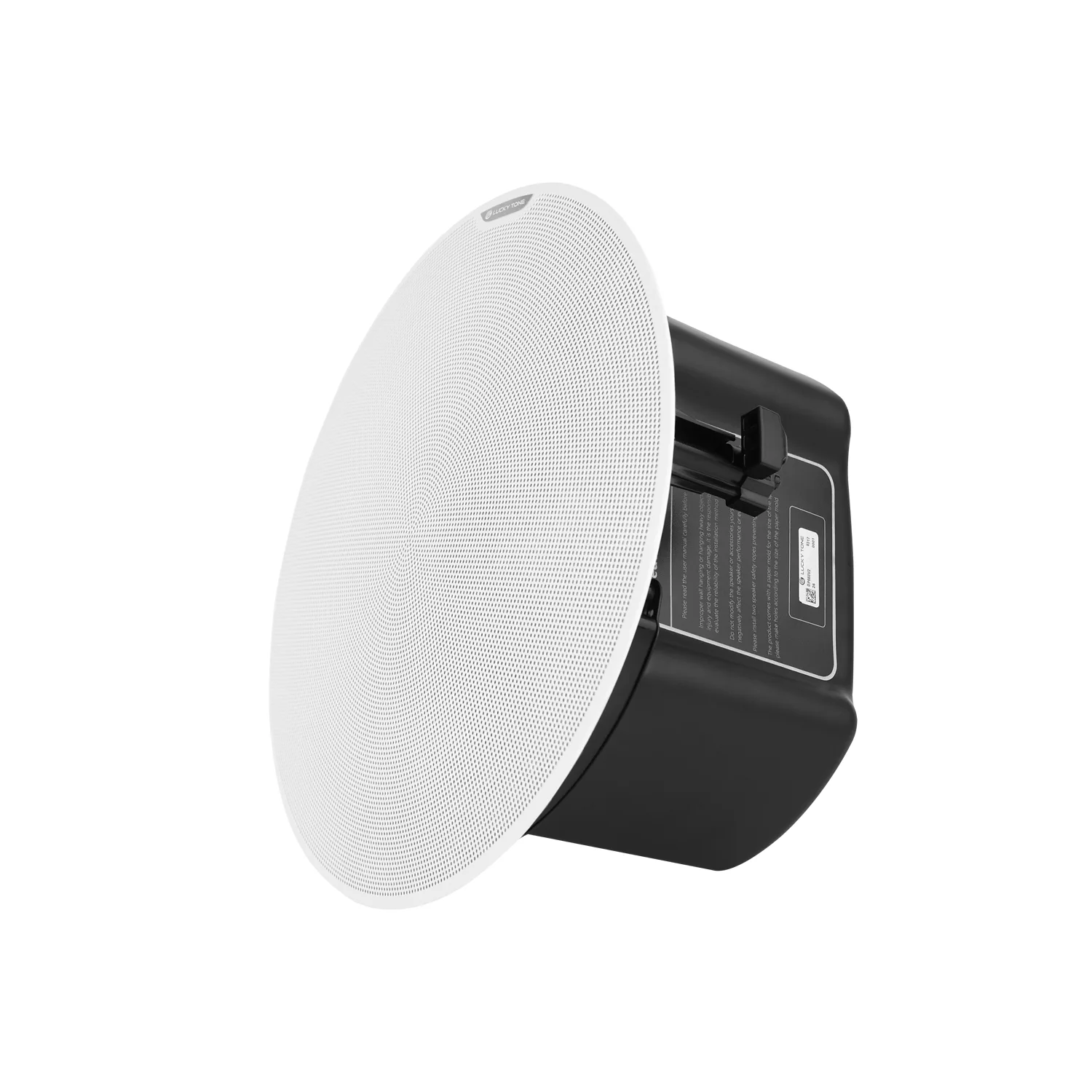

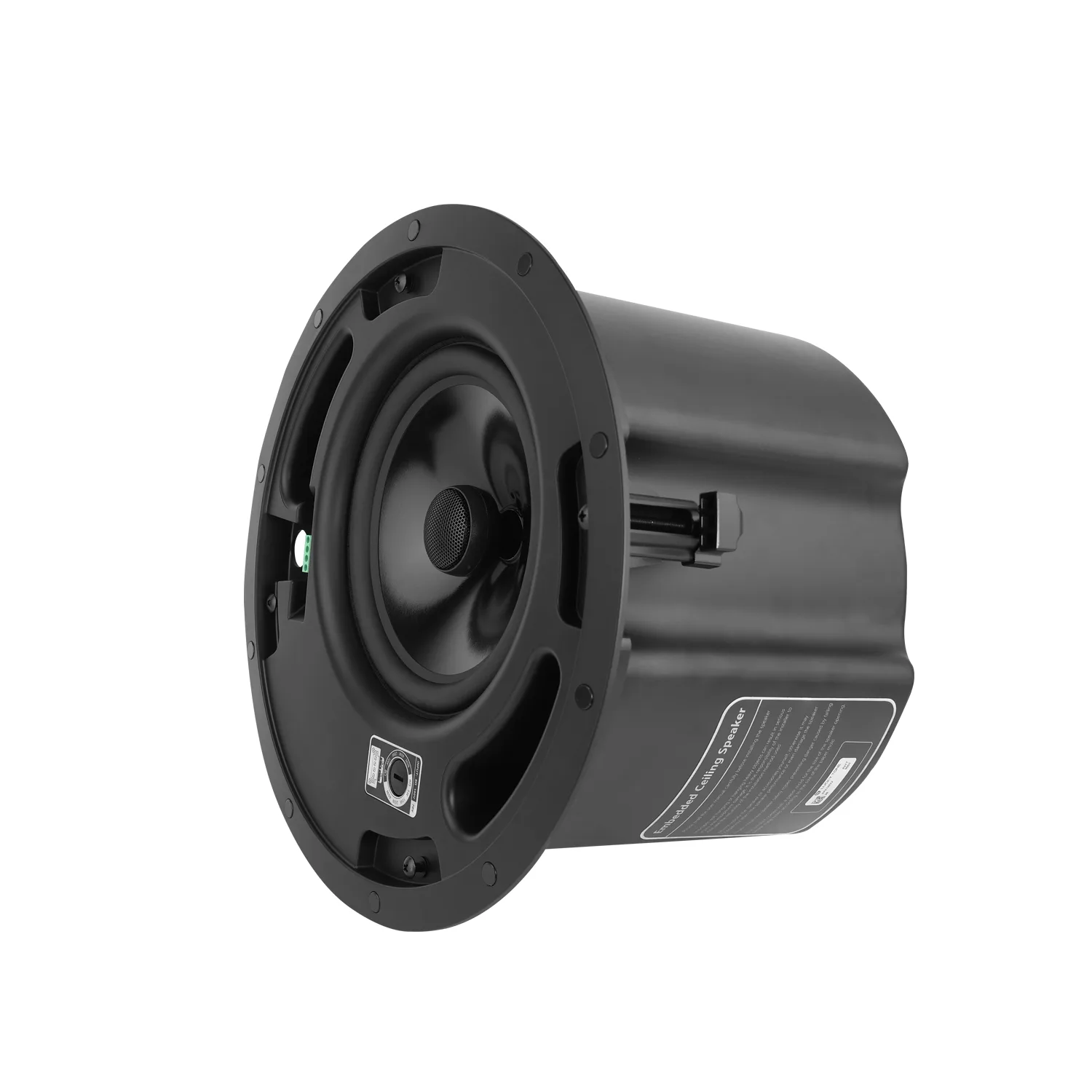

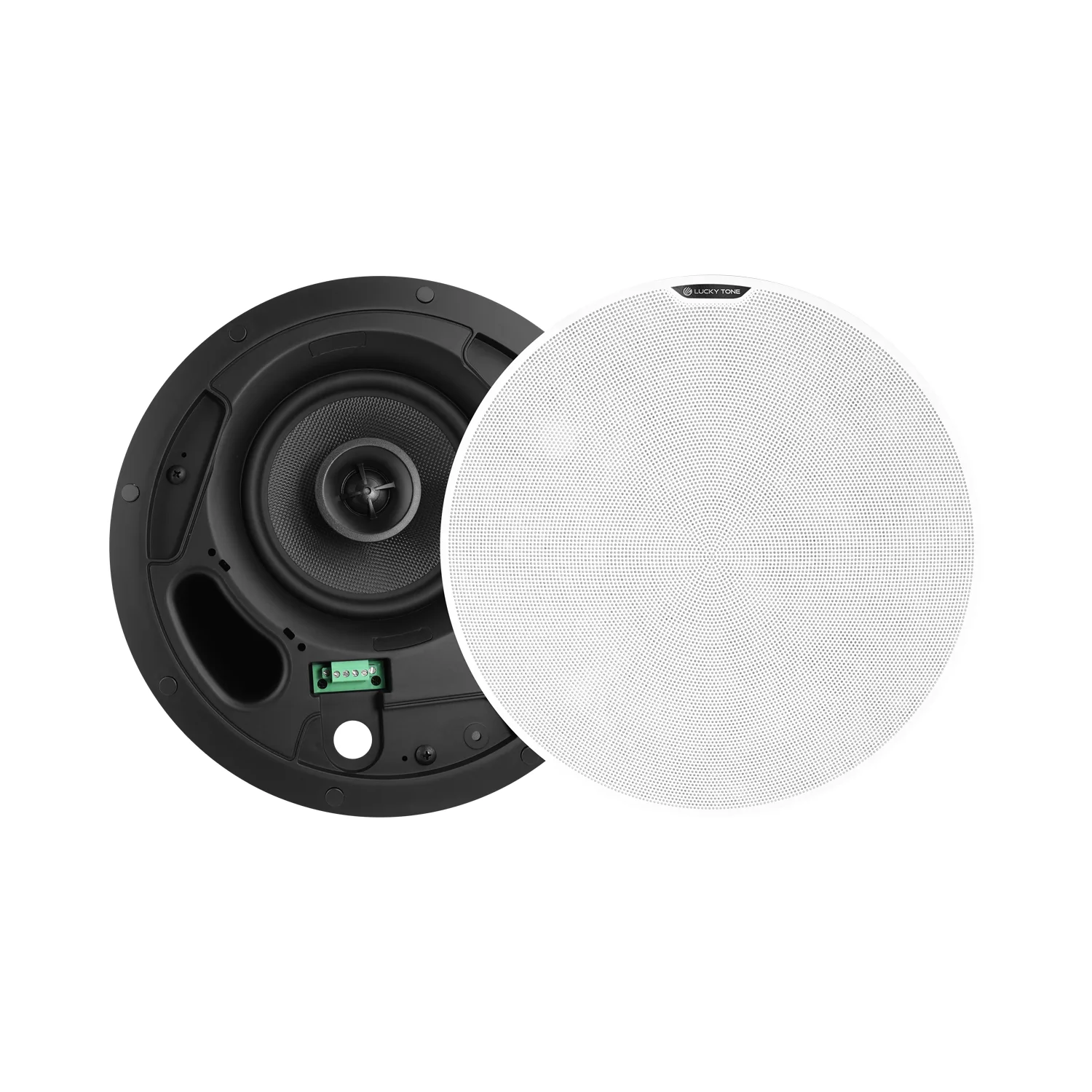

Coaxial Ceiling Speaker Rimless Front with Safety Wire
الكود: EC-DP660V2 / DP8100V2
Features： Available in 6.5″ and 8″ coaxial ceiling speaker models. Selectable 100V / 70V / 8Ω operation for flexible system integration. High sensitivity drivering high SPL output. Wide dynamic response for speech and music reproduction. Front-access Phoenix terminal for easy wiring. Magnetic grille with high-strength N42 magnets. Etched metal grille with durable construction. Reinforced mounting structure with dual safety cables. Metal clamps for fast and secure ceiling installation.
المواصفات الفنية
Model
EC-EC-DP660V2 / DP8100V2
Power at 100V
5W/10W/20W/40W@100V, 80W@8Ω / 10W/20W/40W/80W@100V, 100W@8Ω
Power at 70V
2.5W/5W/10W20W@70V, 80W@8Ω / 5W/10W/20W/4W@70V, 100W@8Ω
Power Peak
120W@8Ω / 160W@8Ω
Speaker
1×6.5″ + 1×1″ Dome Tweeter (Coaxial) / 1×8″ + 1×1″ Neodymium Tweeter (Coaxial)
Sensitivity (1m/1W)
90dB / 92dB
Max. SPL@ 1M
110dB / 115dB
Frequency Response
85Hz – 20kHz / 65Hz – 20KHz
Coverage Angle
120° Conical
Grille Material
Metal

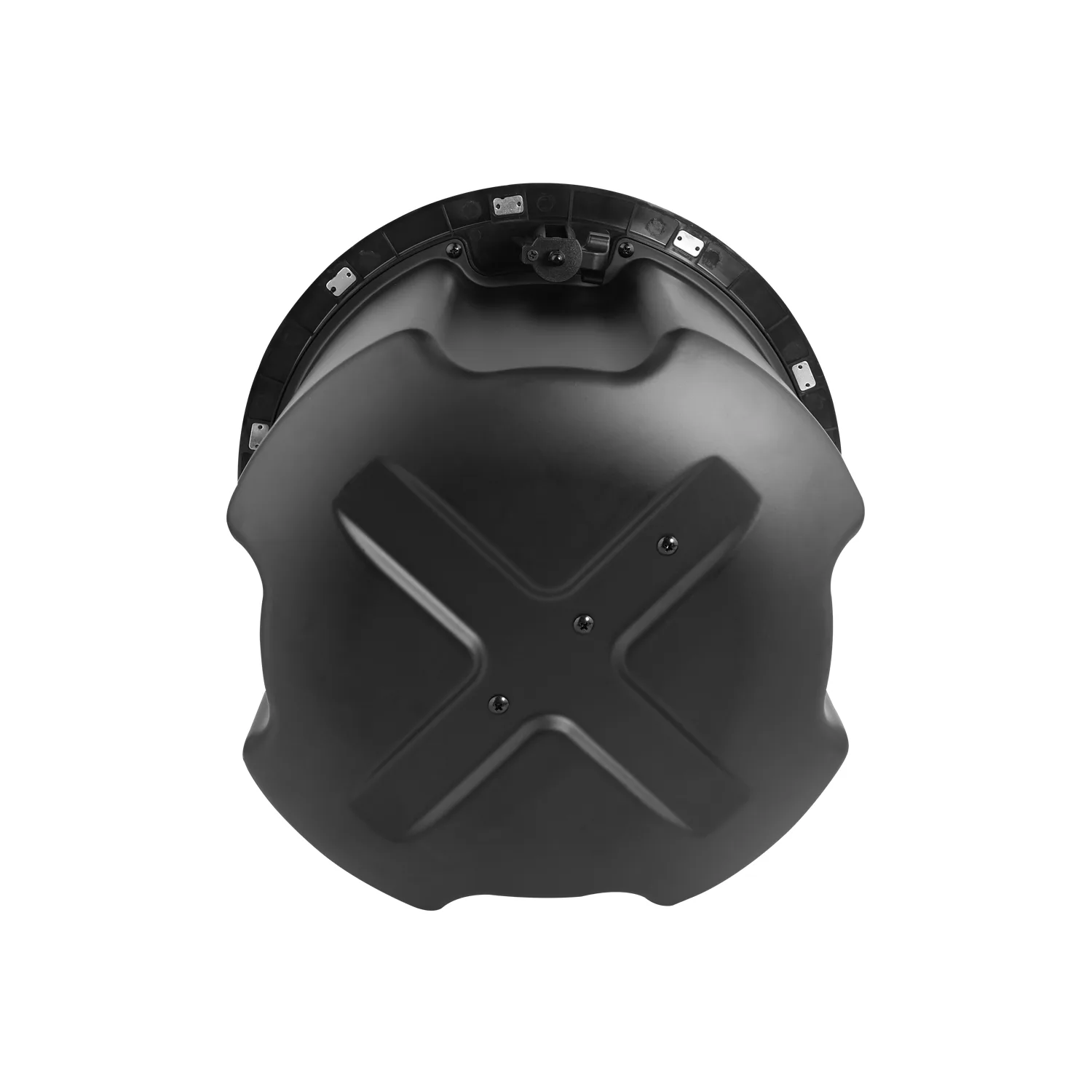

Back Cover Material
Iron

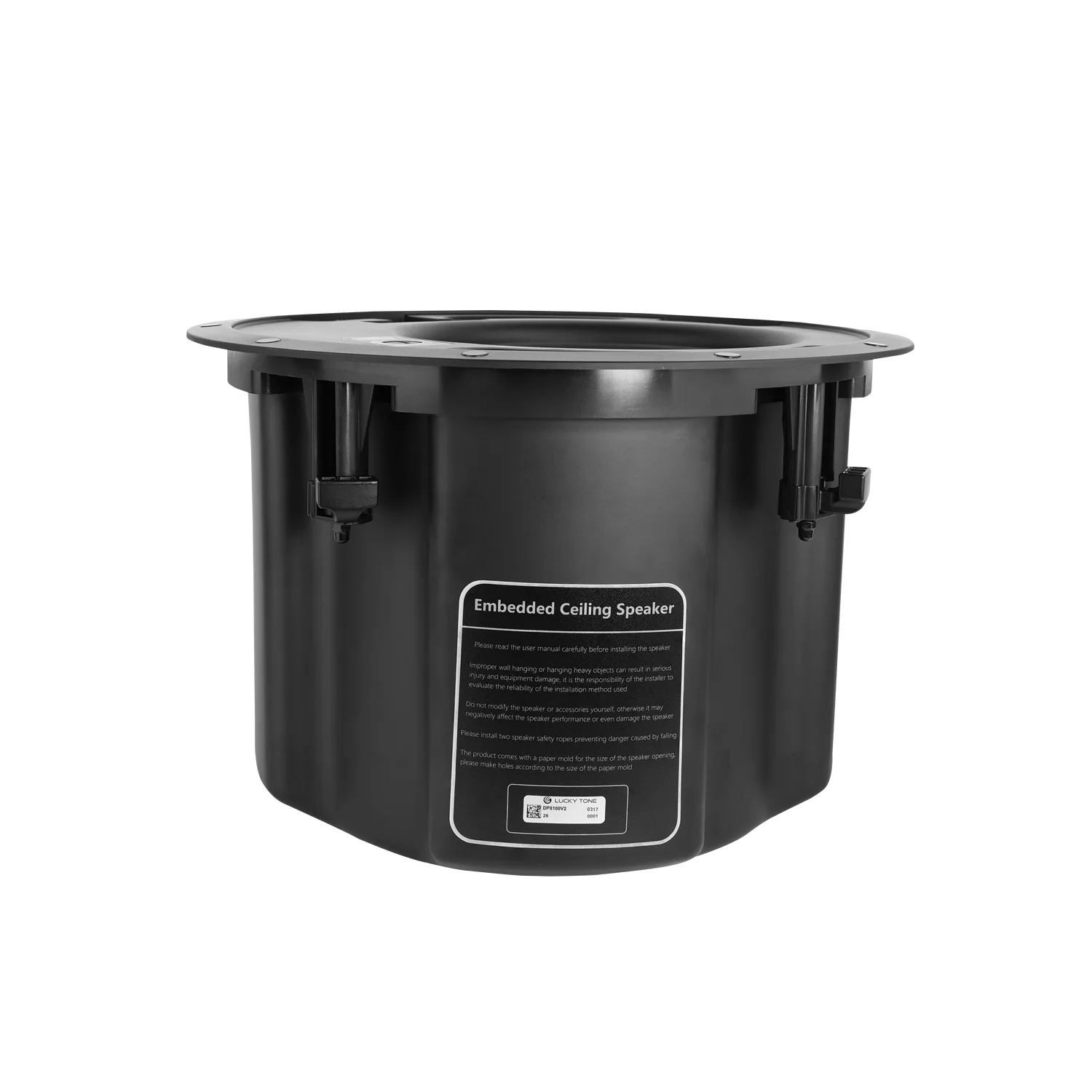

Mounting Clamp
Zinc Alloy
Cutout Size
Dia 270mm / Dia 320mm
Product Size
Dia 316×197mm / Dia 375×258mm
Net Weight
3.9 kg / 5.8kg
الاستخدامات
Available in 6.5″ and 8″ coaxial ceiling speaker models.
Selectable 100V / 70V / 8Ω operation for flexible system integration.
High sensitivity drivering high SPL output.
Wide dynamic response for speech and music reproduction.

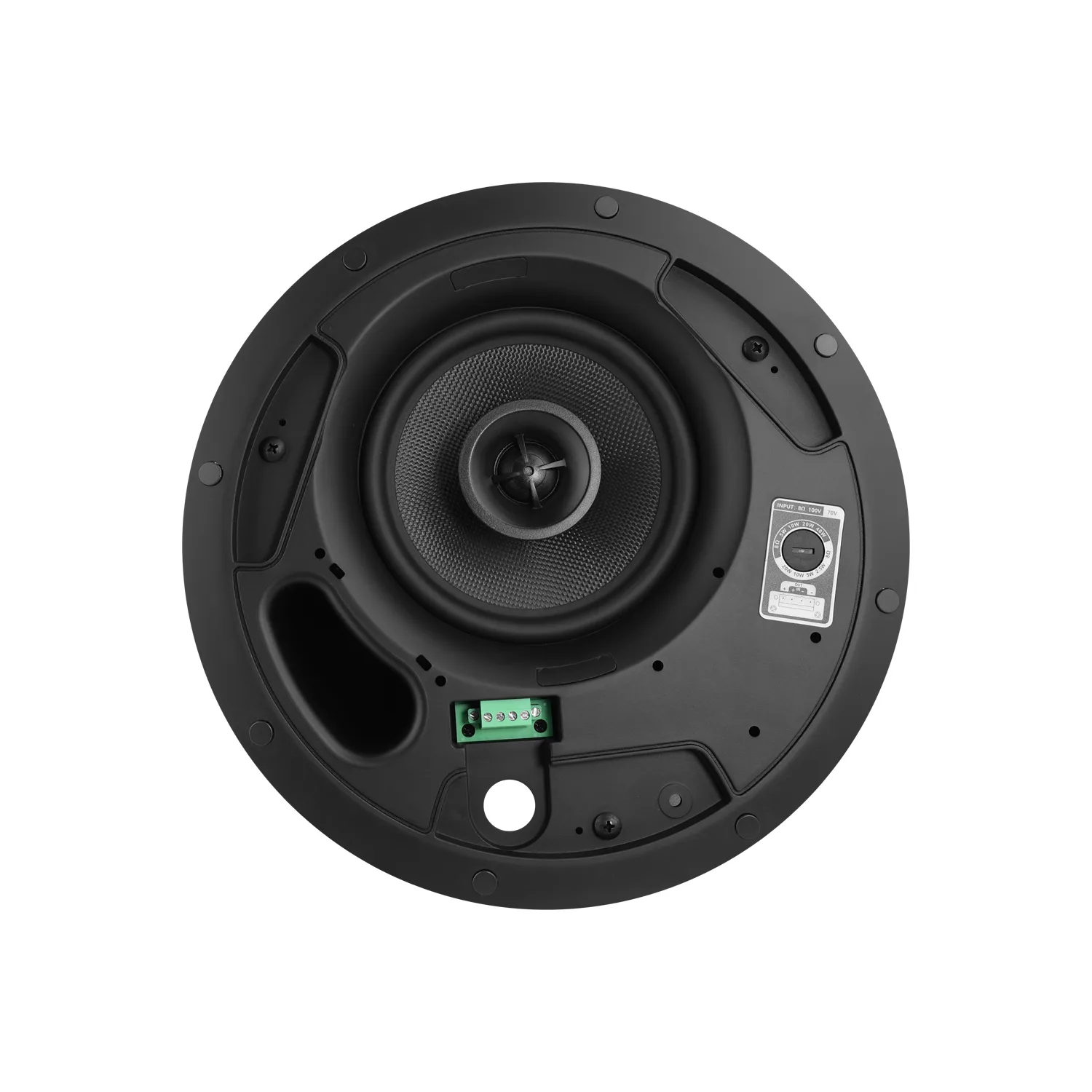

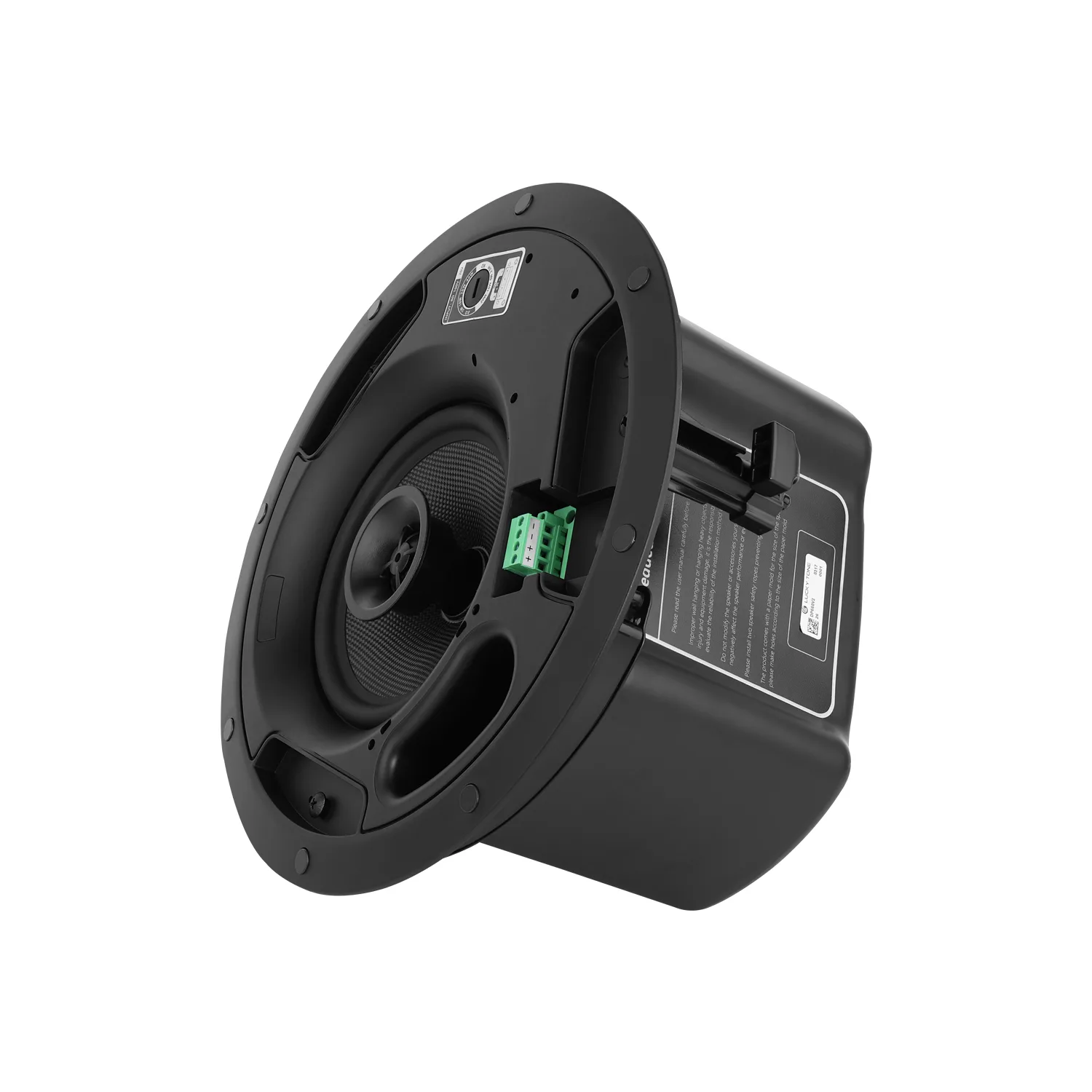

Front-access Phoenix terminal for easy wiring.

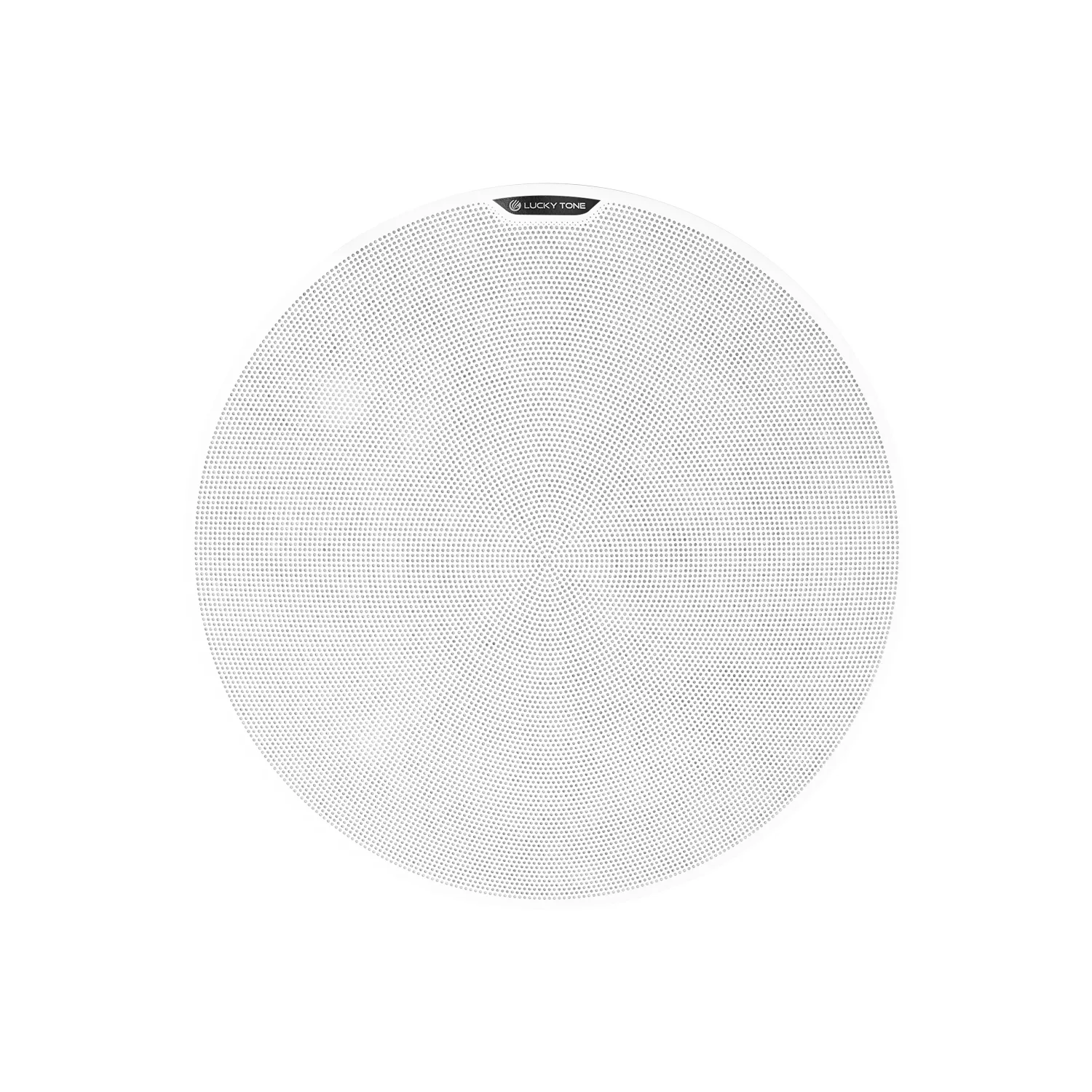

Magnetic grille with high-strength N42 magnets.
Etched metal grille with durable construction.
Reinforced mounting structure with dual safety cables.
Metal clamps for fast and secure ceiling installation.
