أنظمة الصوت / FTD Audio - نظام الإنذار الصوتي EN54-16

EC-205EN

الكود: EC-205EN

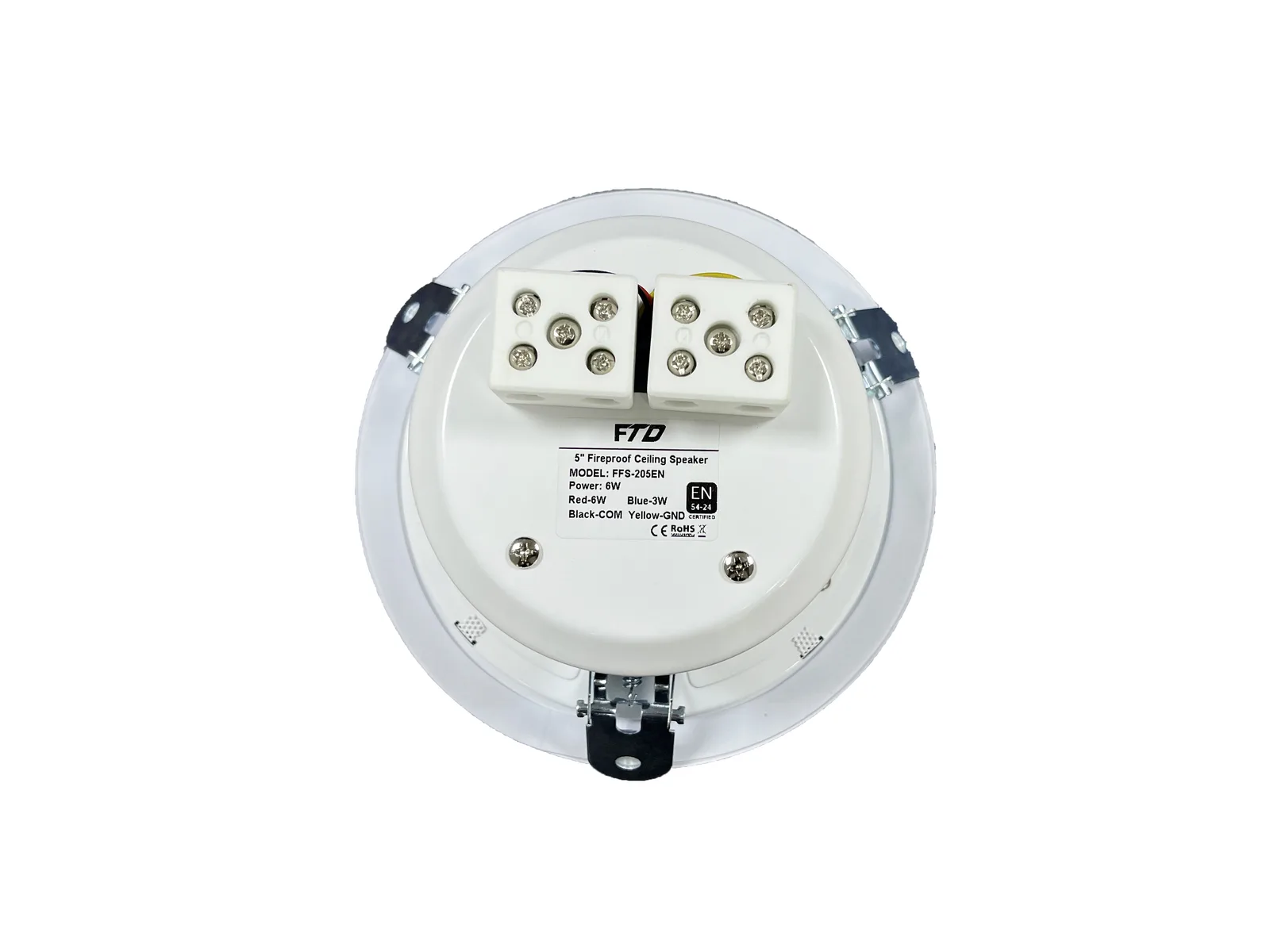

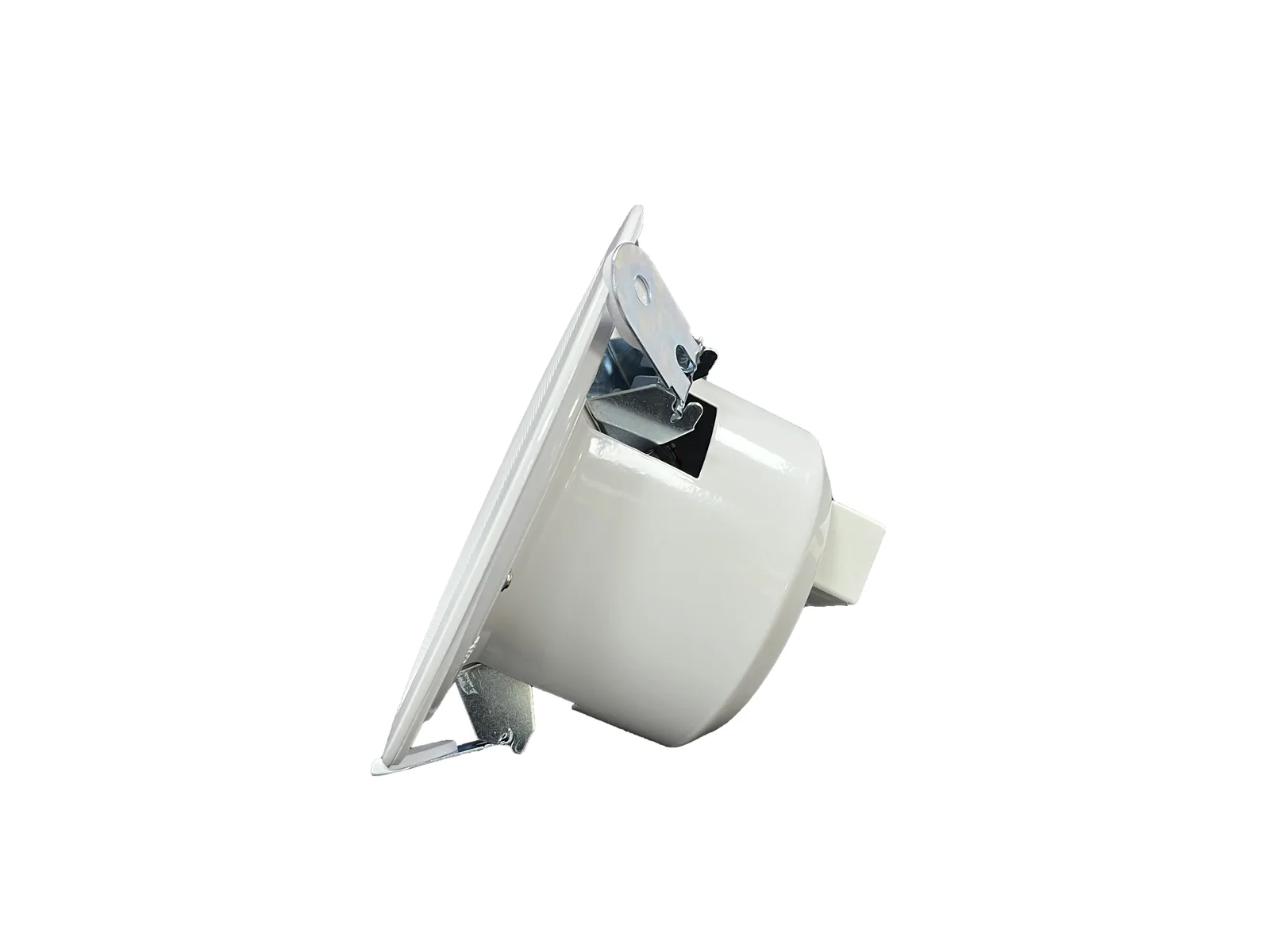

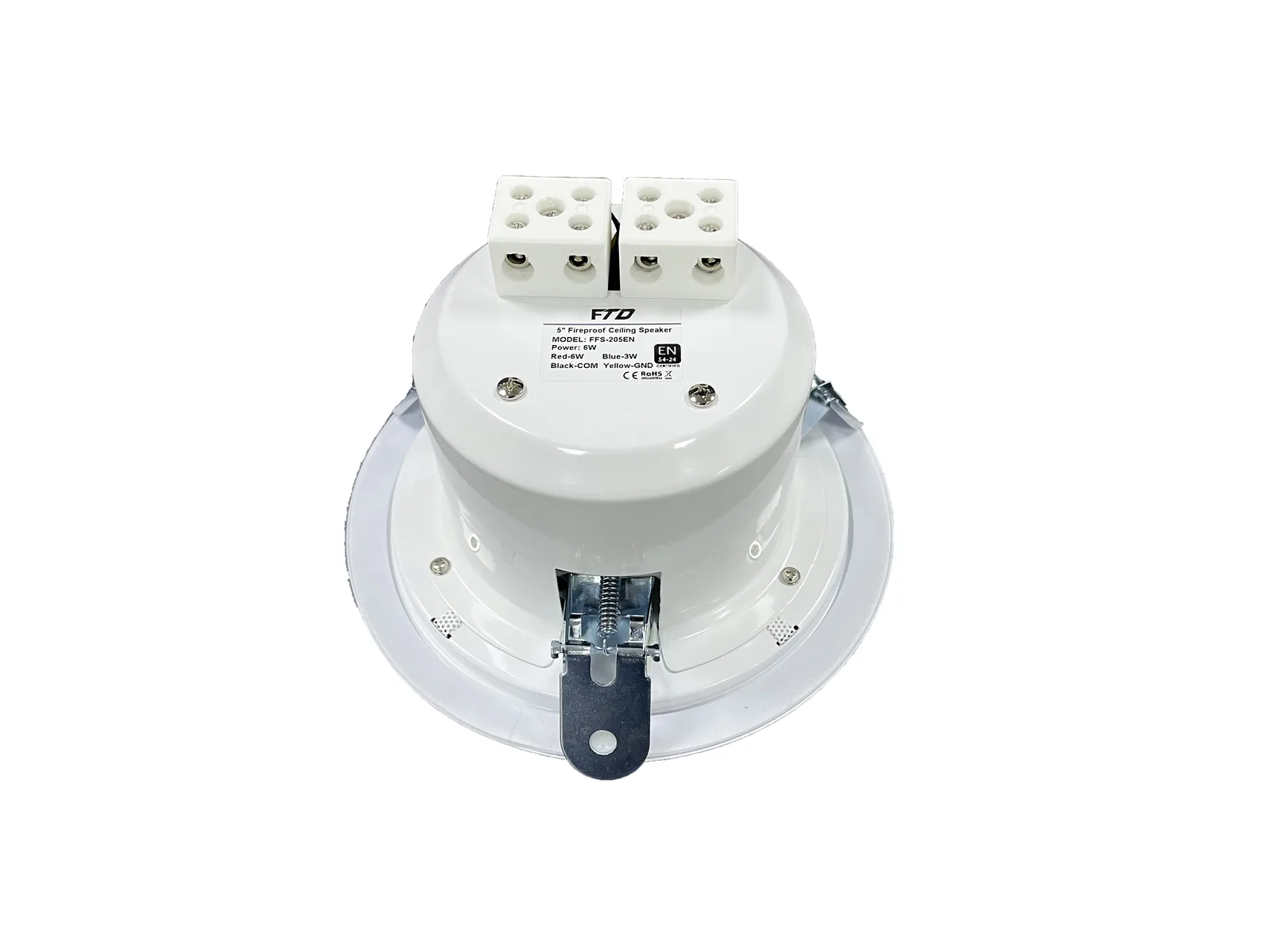

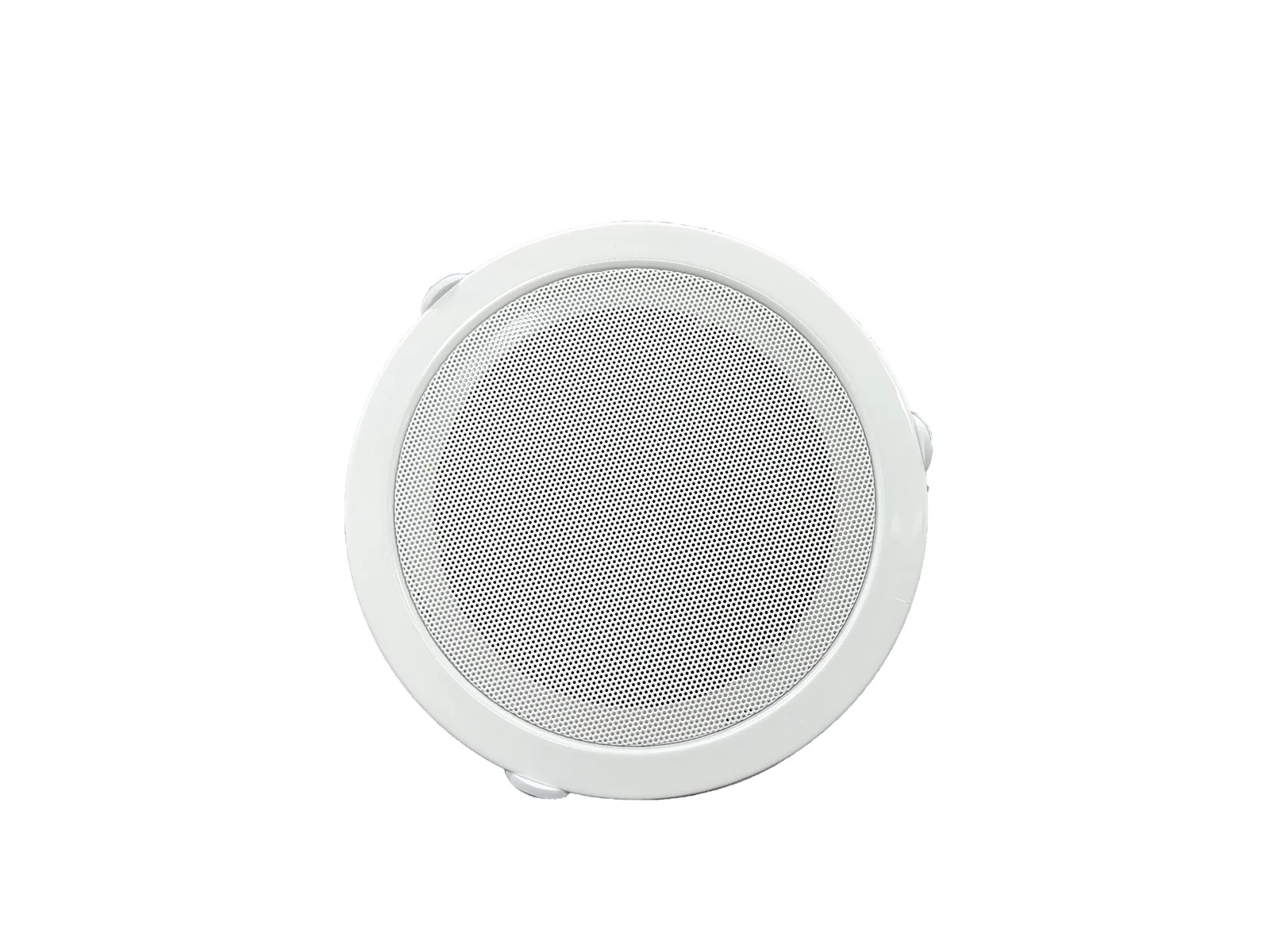

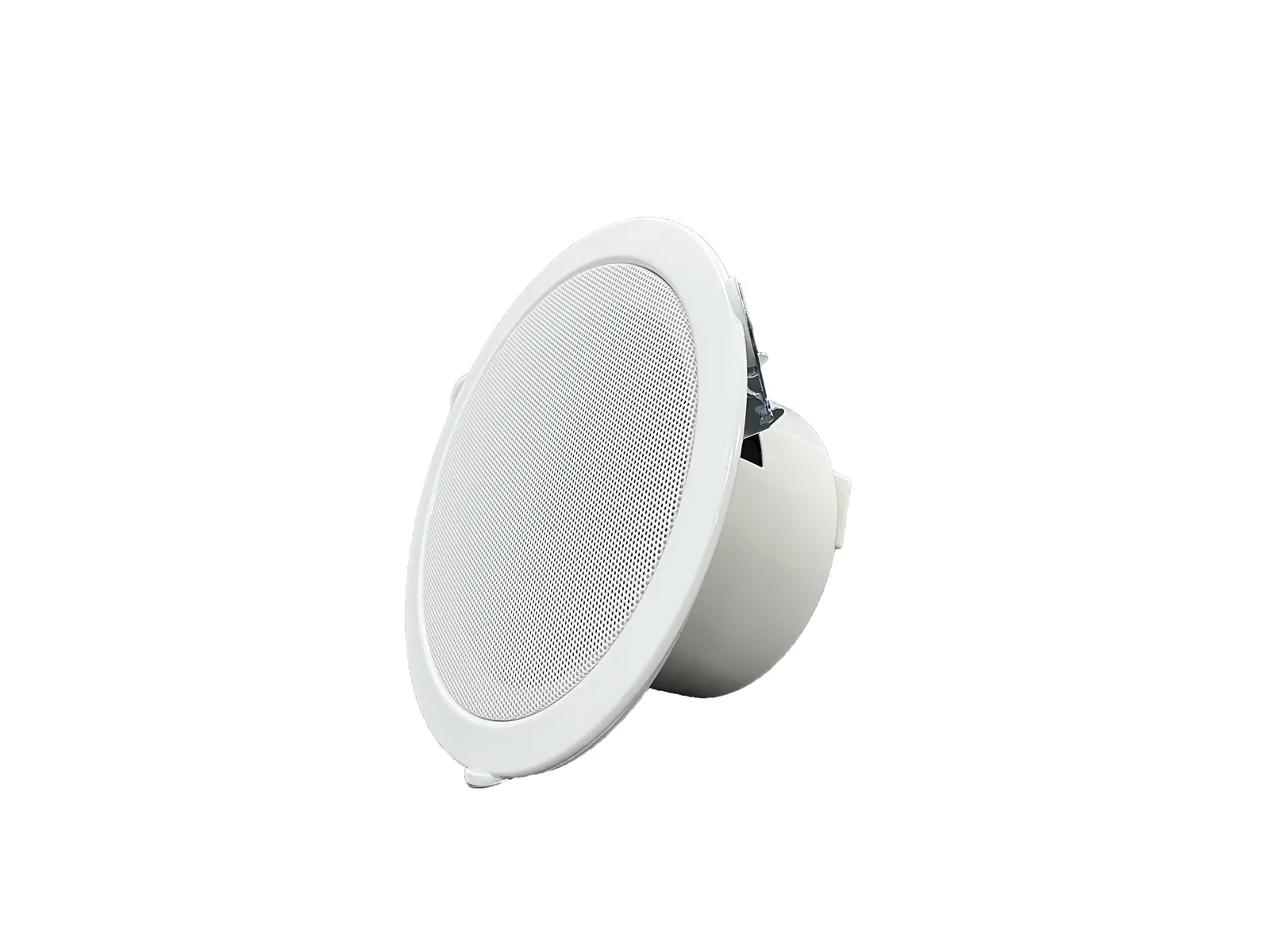

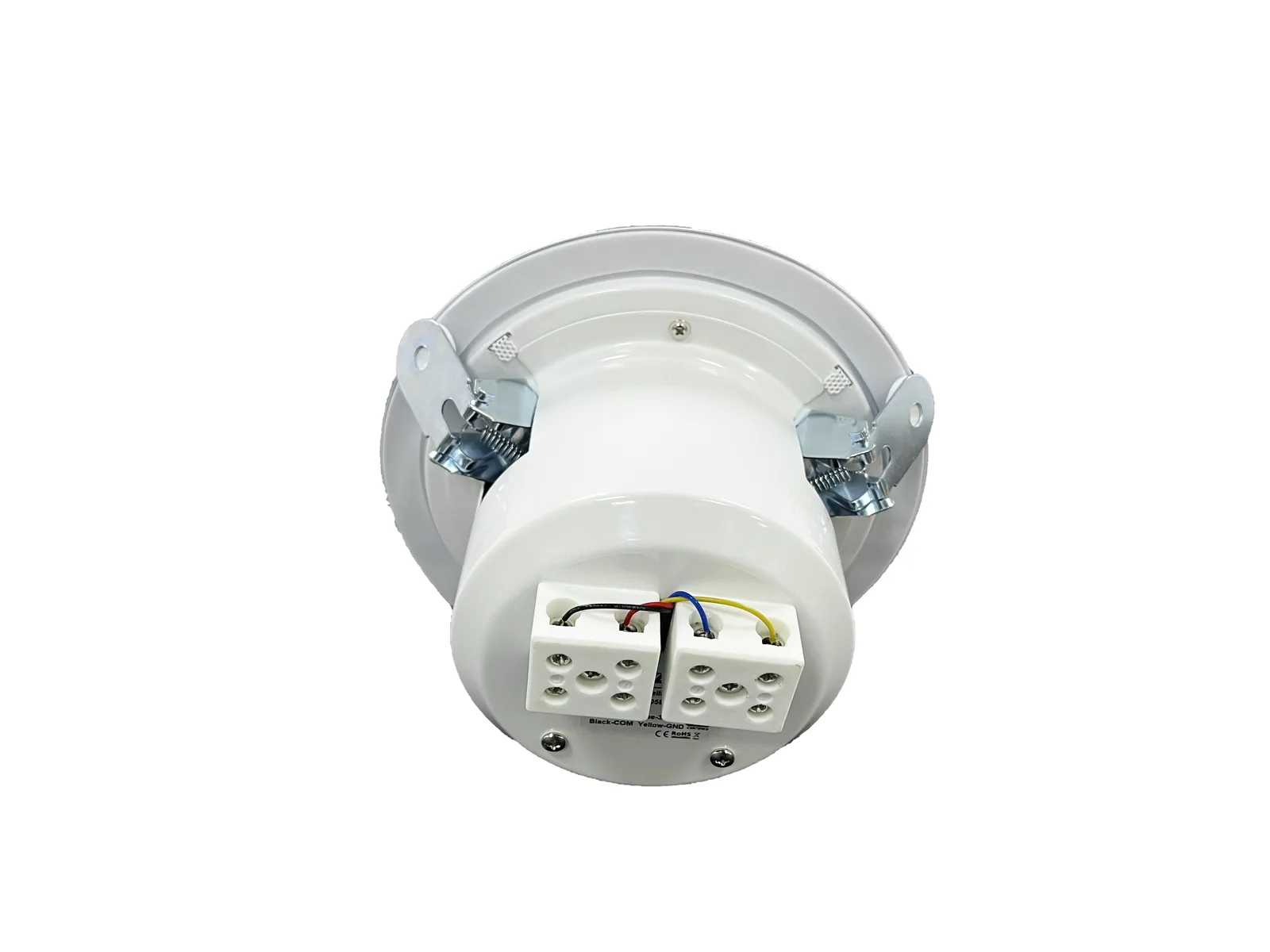

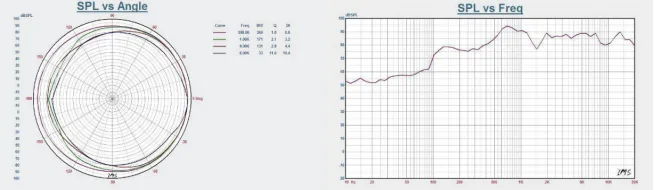

5" 1.5W/3W/6W Fireproof Ceiling Speaker with Fire Dome EC-205EN Features : •Compliant with the EN54-24 standards •In-ceiling fast installation type loudspeaker •Ideal for school, office, hotel and airport voice evacuation and PA system •Rated power output 1.5W-3W-6W at 100V •5" full range paper cone •Line input 100V or 70V with transformer •Ceramic connector, fire dome, 95 ℃ fire - resistant cable and thermal fuse •Steel enclosure, steel grille and fire dome in white •Fast installation by its three spring clips Specifications: Model EC-205EN Desription EN 54-24 Ceiling Speaker Standart EN54-24 Max. Power 6W Transformer Tapping 1.5W-3W-6W Line Input 100V or 70V Frequency Response 110-14.5KHz (-10dB) SPL(@1W/m) 91dB/Max 98dB Material Steel enclosure, steel grille and fire dome in white Speaker Unit 5” full range paper cone Dimension Ø 200 x 105mm Cutout Size Ø 175mm Mounting Way Spring-clip Weight 0.9 kg Mounting, Dimension & S ide View: Frequency Response & SPL Diagra m:
