أنظمة الصوت / FTD Audio - مضخمات النداء العام

EC-60RM

الكود: EC-60RM

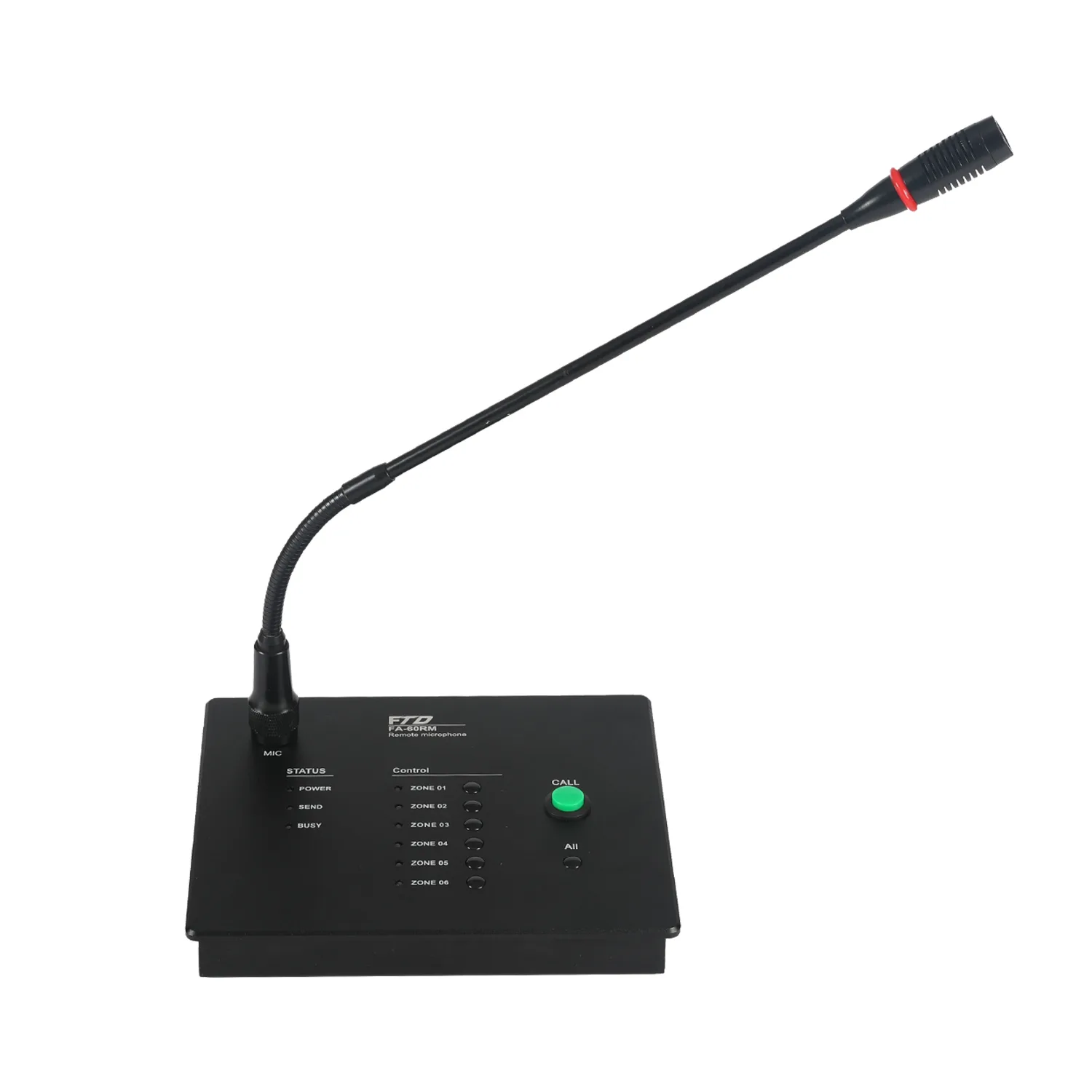

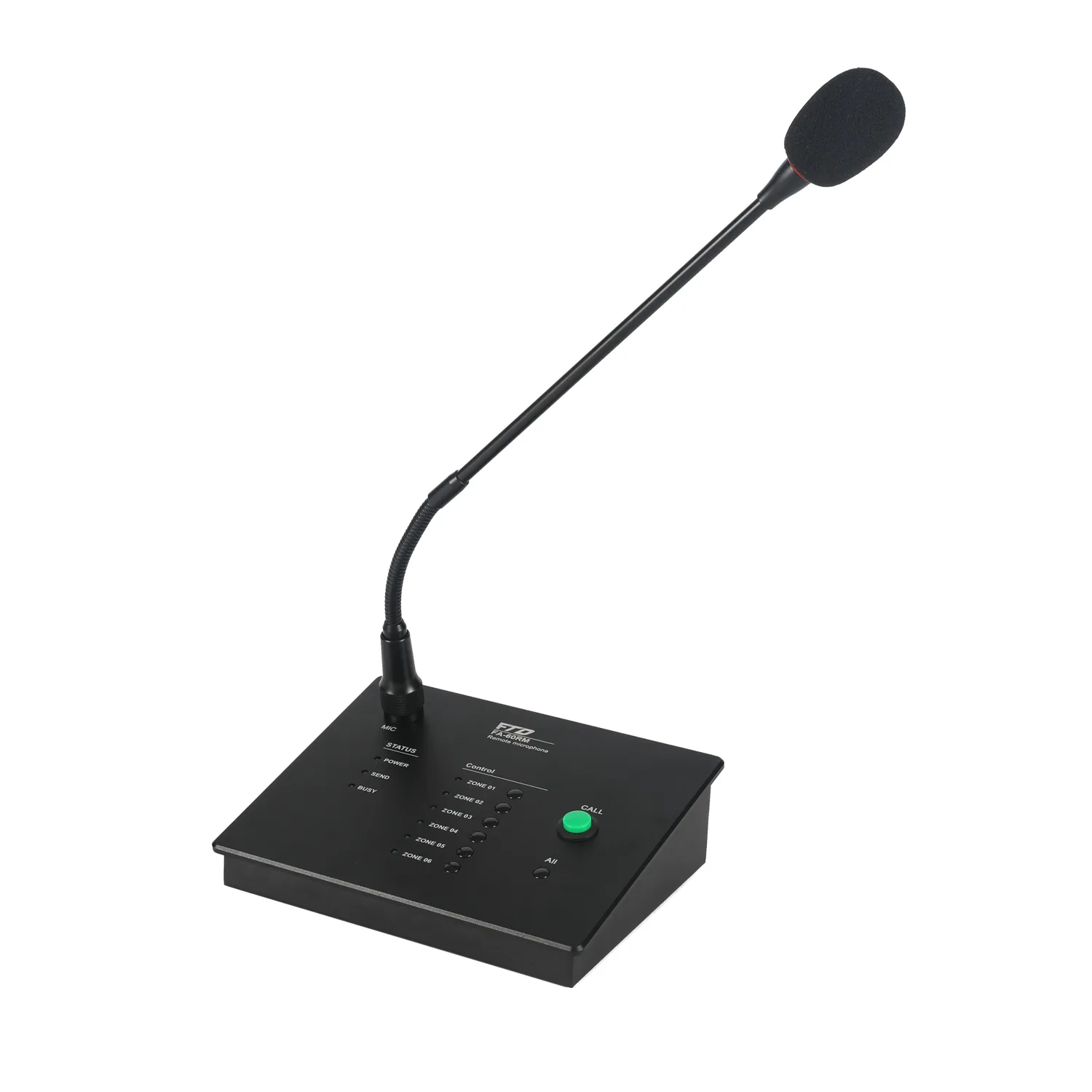

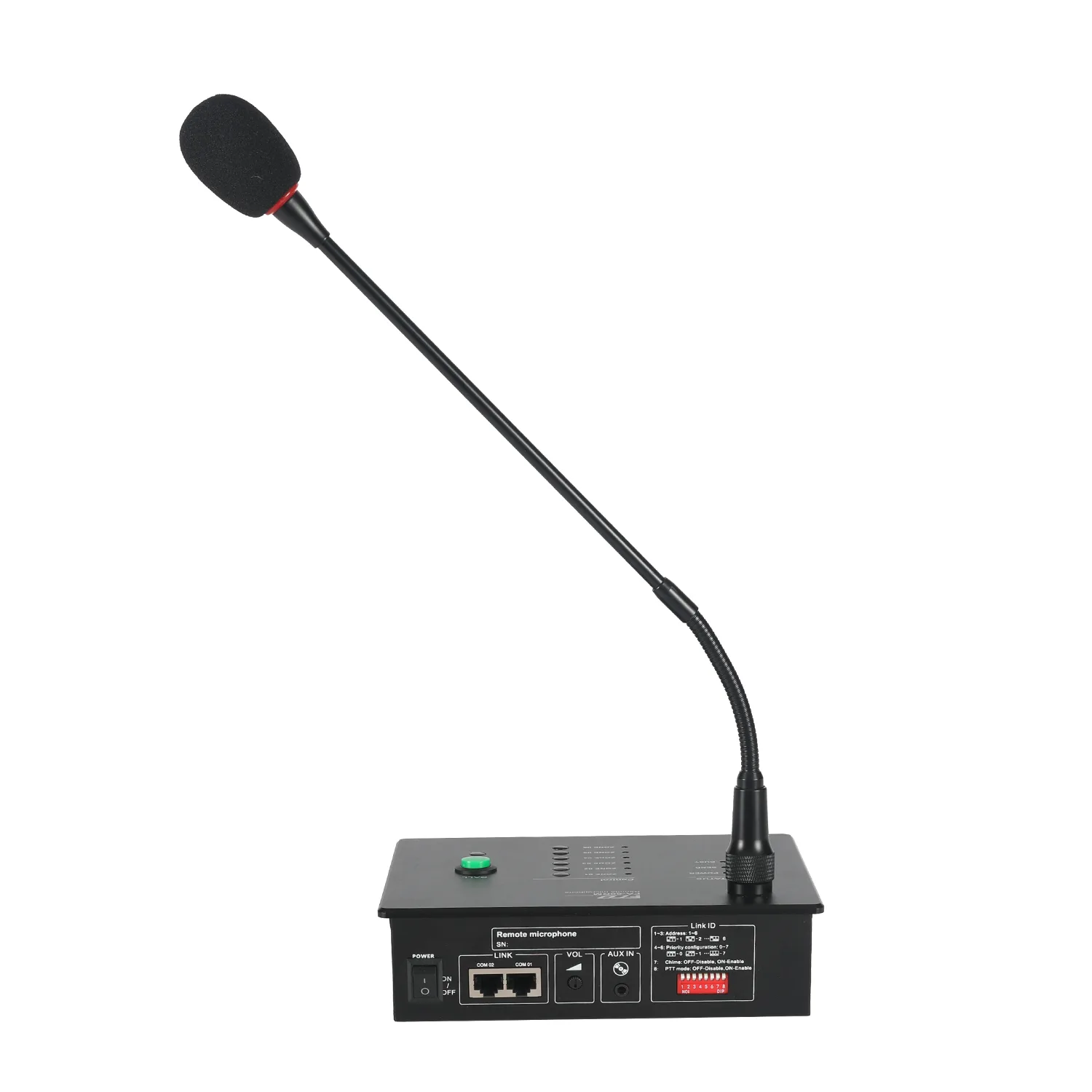

6 zone Remote Microphone RS485 EC-60RM Description: EC-60RM is a remote paging microphone work with EC-500R series amplifier, which is of 6 zone paging features, its communication distance up to 600 meters through straight CAT6 cable, each amplifier capacity of connection up to 8 units of remote paging microphone, these microphone are connected hand-by hand. These 6 remote paging microphones could be pre-set different priorities by its dipswitch. The remote paging microphone is direct power supplied by the amplifier. Features: RS485 remote paging microphone. Each microphone of 6 zone capacity. System support 8 remote microphones of loop connection. 6 zone selection buttons and all zone button. Two RJ45 ports for connection with EC-500R ampliifer and next remote microphone. Support PPT and normal paging two modes. CAT5 or CAT6 cable communication up to 600 meters. POE power supply from EC-500R controller.. Specifications: Model EC-60RM Description 6 zone Remote Microphone Power Consumption 3W Zone Capacity 6 Zones System Capacity 8 Remote microphones Line Inputs 350mV, 10kΩ Mic Input 5mV, 600Ω Frequency Response 80Hz~16kHz THD ＜1% at RMS,1KHz S/N Ratio >70dB Operating Temp -20℃ to +70℃ Power Supply DC24V, ±20% Humidity Dimension 256(W)×149(H)×52(D) mm Weight 1.5kg
