أنظمة الصوت / FTD Audio - سماعات النداء العام

EC-620C Coaxial Ceiling Speaker

الكود: EC-620C

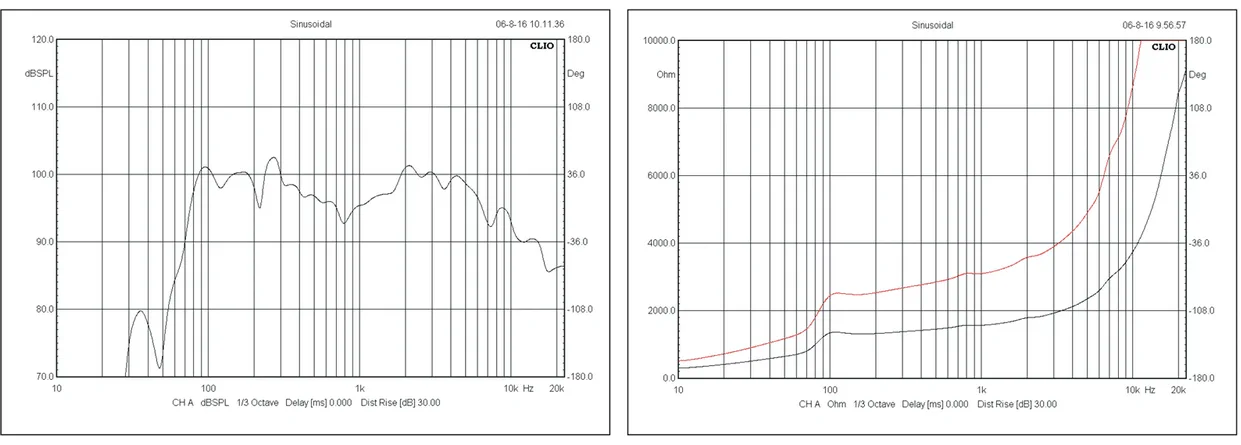

5" Coaxial Ceiling Speaker (5W/10W/20W) EC-620C Feature: Commercial ceiling speaker with transformer Ideal for school, office, hotel and airport background music system Rated power output 5W/10W/20W at 100V 5" coaxial paper woofer and 1.5” tweeter Line input 100V or 70V ABS enclosure and metal grille in white Flush mount in-ceiling quick and secure installation Specification： Model EC-620C Description 5” Coaxial Ceiling Speaker Rated Power Output 5W/10W/20W Line Input 100V or 70V Frequency Response 100-20KHz SPL(@1W/m) 88dB Speaker Unit 5" coaxial paper woofer and 1.5” tweeter Cutout Size 170mm Dimension 203(D)×80(H)mm Material ABS enclosure and metal grille in white Mounting Way Flush mount in-ceiling quick and secure installation Weight 1.25kg Dimension & Mounting Guidance: Frequency Response & SPL Diagrams：
