أنظمة الصوت / FTD Audio - مضخمات النداء العام
ECX-120 120W Economy Mixer Amplifier 3 phone jack Mic 2 Aux
الكود: ECX-120

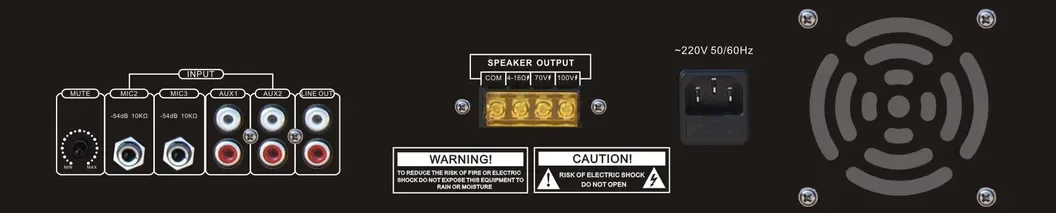

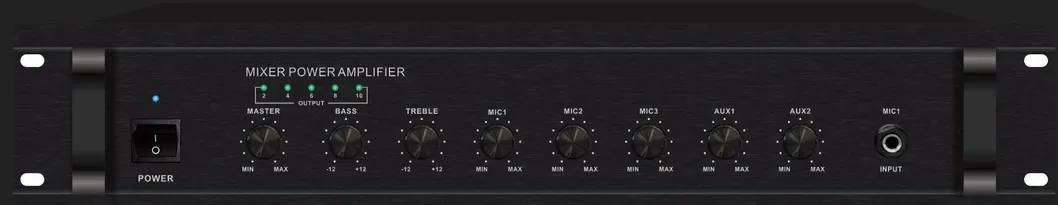

Product Description PA System 60W Audio Amplifier ECX-120 Description: The Public Address (PA) 120 Watts Mixer Amplifier is suitable for school, super market, bank, hotel BGM and speech use. It is integrate pre amplifier and mixer power amplifier into one 19" 2U height unit of tabletop design, which is economy but of high reliable performance. The tabletop mixer amplifier rated power out at 120W. Its speaker outputs with 100V, 70V and 4‐16ohms for versatile connections. It integrates three microphone and two line inputs. Mic1 VOX with priority. Microphone1 on front panel by phone jack, microphone2‐3 on rear panel by phone jack, line 1‐2 on rear panel by RCA inputs. Microphone1‐3 & Line1‐2 inputs volume control on front panel with bass and treble tone control. The amplifier is design with complete protection of overload, short circuit and high temp to avoid any damage. Features: Public address (PA) tabletop mixer power amplifier. Commercial & industrial range BGM & paging amplifier. Rated outputs of 120W. 70V, 100V and low impedance 4-16 ohms speaker outputs. 3 microphone inputs and 2 line inputs. Mic1 on front panel by phone jack, mic2-3 on rear panel by phone jack. Line 1-2 inputs on rear panel by RCA. Microphone1 of VOX features of highest input priority. Microphone1-3 & Line1-2 inputs volume control on front panel with bass and treble tone control. Power and output level meters. Overload, short circuit and high temp protection. With natural cooling fan to control the internal temperature. Warranty of 5 years with CE certificate. Specification: Model ECX-120 Description Public Address System 120W Mixer Amplifier Rated Power Output 120W RMS Speaker Output 70V, 100V and 4-16 ohms Input Mic1-3: 600 ohms 5-8 mV, unbalanced, Line1-2: 10k ohms 150-470 mV, unbalanced Frequency Response 60-15KHz THD S/N Ratio Line: 85 dB , MIC: >72 dB Protection High temp, short circuit, overload protection Power Supply AC230V or AC110V, 50-60Hz Power Consumption 175W Dimension 484(W)×366(D)×88(H)mm Packaging: 520(W)×435(D)×185(H)mm Net. Weight 11.4kg Gross Weight 13.1kg Warranty 5 years
