أنظمة الصوت / FTD Audio - مضخمات النداء العام

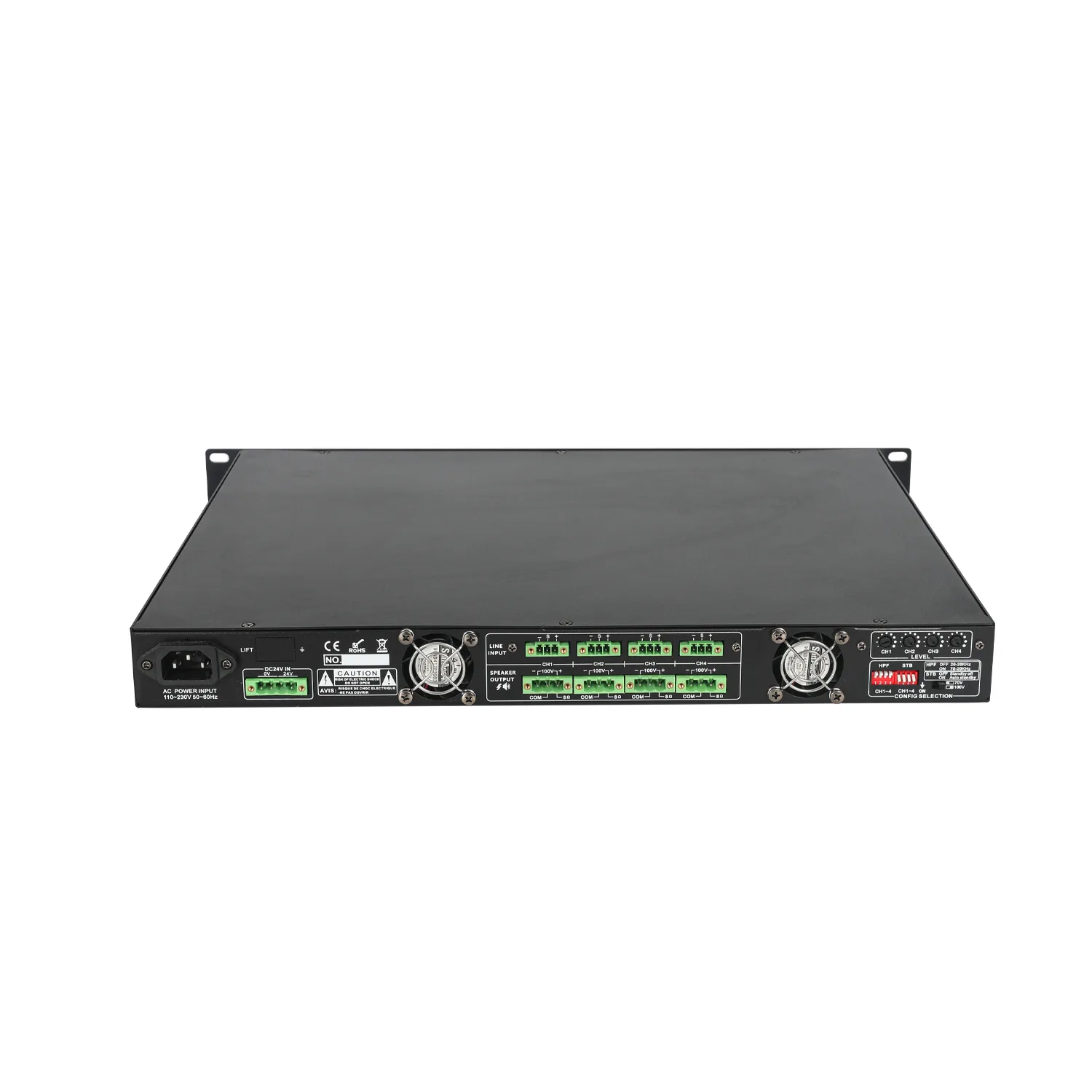

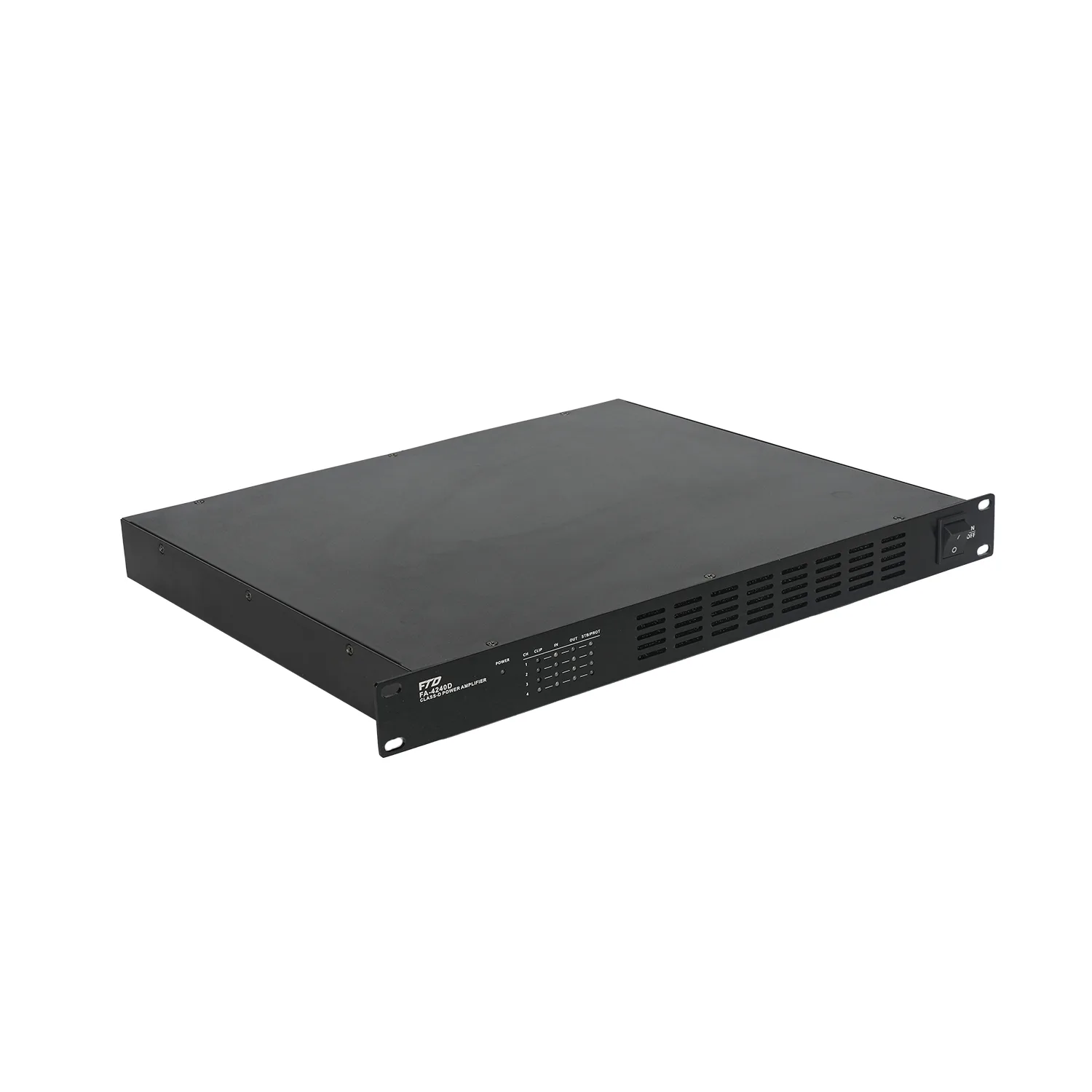

4X350W Class D power amplififer EC-4350D
الكود: EC-4350D

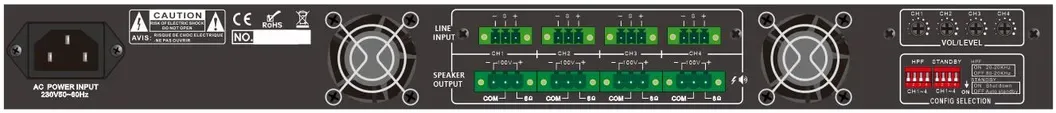

Product Description 4CH Class-D Amplifier, RMS 4x350W, 100V & 8ohms, Auto standby, HPF, DC24&AC 230 input, 1U height Features: Switching power technology digital power amplifier Class-D PA power amplifier of minimum power consumption Less rack space and less heat generation Four channel power amplifier into 19" rack mount unit Rated power output at 4x120W Four channel separate speaker outputs 4Ω/100V Balanced XLR input by phoenix connector for four channels Each input with separate gain control. Each four channel with high-cut filter. Built-in auto standby feature to save power consumption Separate four channel indicators for protection, clip, input and output Complete short circuit, overload, high temp, clip and DC protection Wide AC input switchable between 115V and 230V DC24V is optional Description: The EC-4500D range digital class-D power amplifier is of switching power technology, which features of minimum power consumption and much higher efficiency up to 85%, moreover it helps to save installation rack space, generate less heat so as to extend its performance life span as a result. The EC-4120D is of rated power output at 4×120W, so it could be used as four zone multiple sources public address system at minimum cost. The versatile loudspeaker outputs of both high impedance 100V & low impedance 4ohms enable it meet both PA fixed installation and Hi-fi stereo sound installation jobs. There are four balanced inputs by phoenix connector for each channel with gain control. Four separate zone speaker outputs both by 100V & 4ohms. The built-in four channel separate high-pass filters could be enabled or disabled through the dip switch pre-setting. Automatic standby enable after no detection of signal input for one minute, immediately wake up at sight of any input. Visual working status indicators include protection, clip, input and output for easy supervision. With complete short circuit, overload, high temp, clip and DC protection. Switchable AC power supply from 115V to 230V, thus it support worldwide sound system installation. Specification: Model EC-4120D EC-4240D EC-4350D EC-4500D Description Class-D Four Channel Power Amplifier Rated Power Output 4x120W 4x240W 4x350W 4x500W Speaker Output 4Ω & 100V Frequency Response L/H Cut OFF 20Hz-20KHz (+1/-2dB) L/H Cut ON 70Hz-10KHz (+1/-3dB) Input 0.775V, 0dBu, balanced phoenix connector by four channels Input Impedance 10KΩ THD S/N Ratio >80dB Crosstalk >60dB, 1KHz, Max output Power Consumption 600W 1200W 1750W 2300W Power Supply AC input switchable between 115V & 230V, 50-60Hz Dimension 482(W)x420(D)x44(H) mm Weight 8.5kg 9KG 9.5KG 15KG
