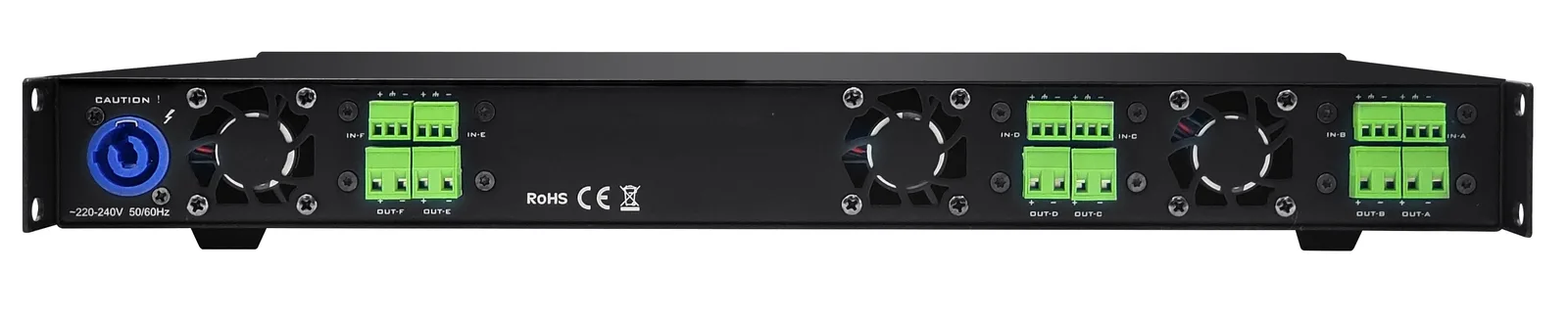

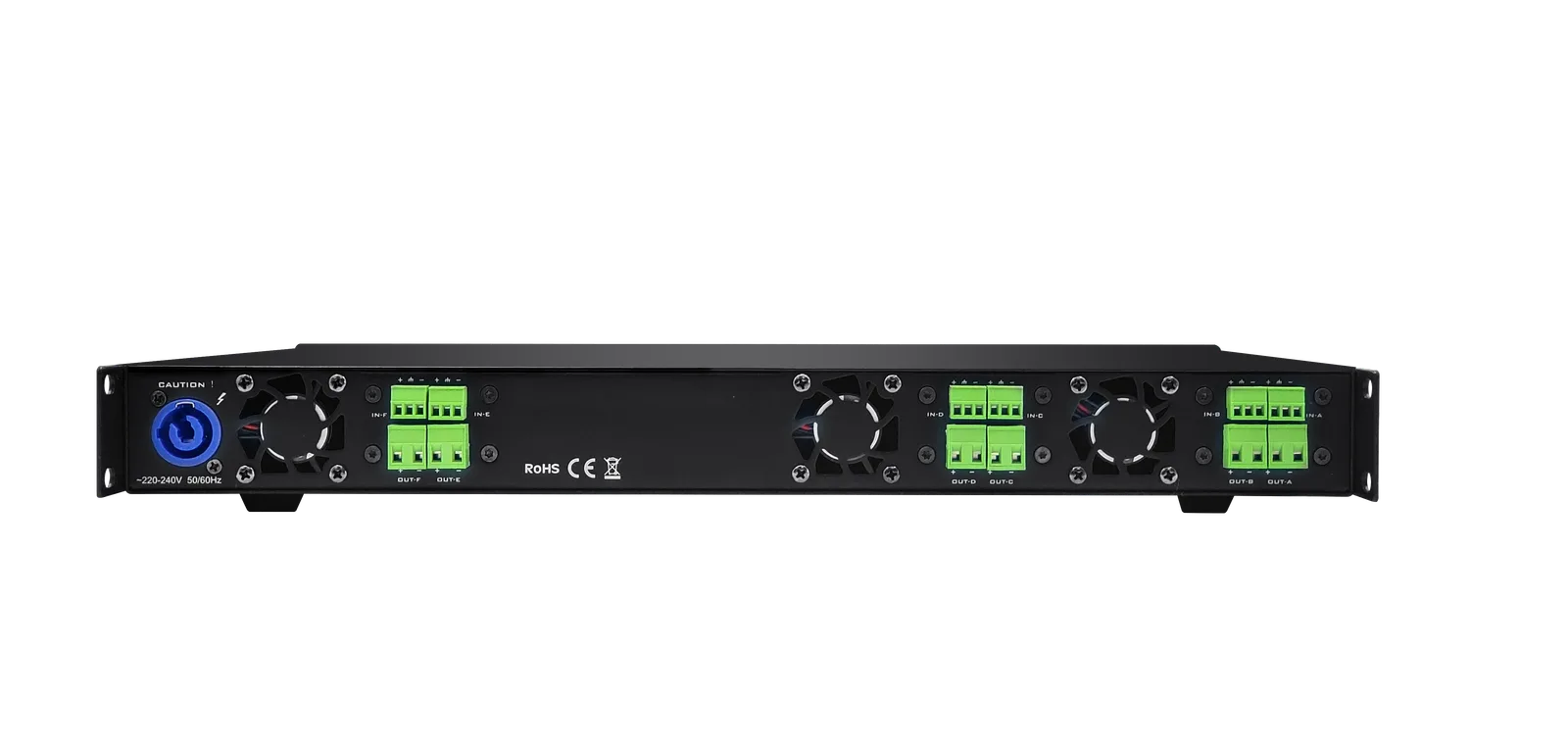

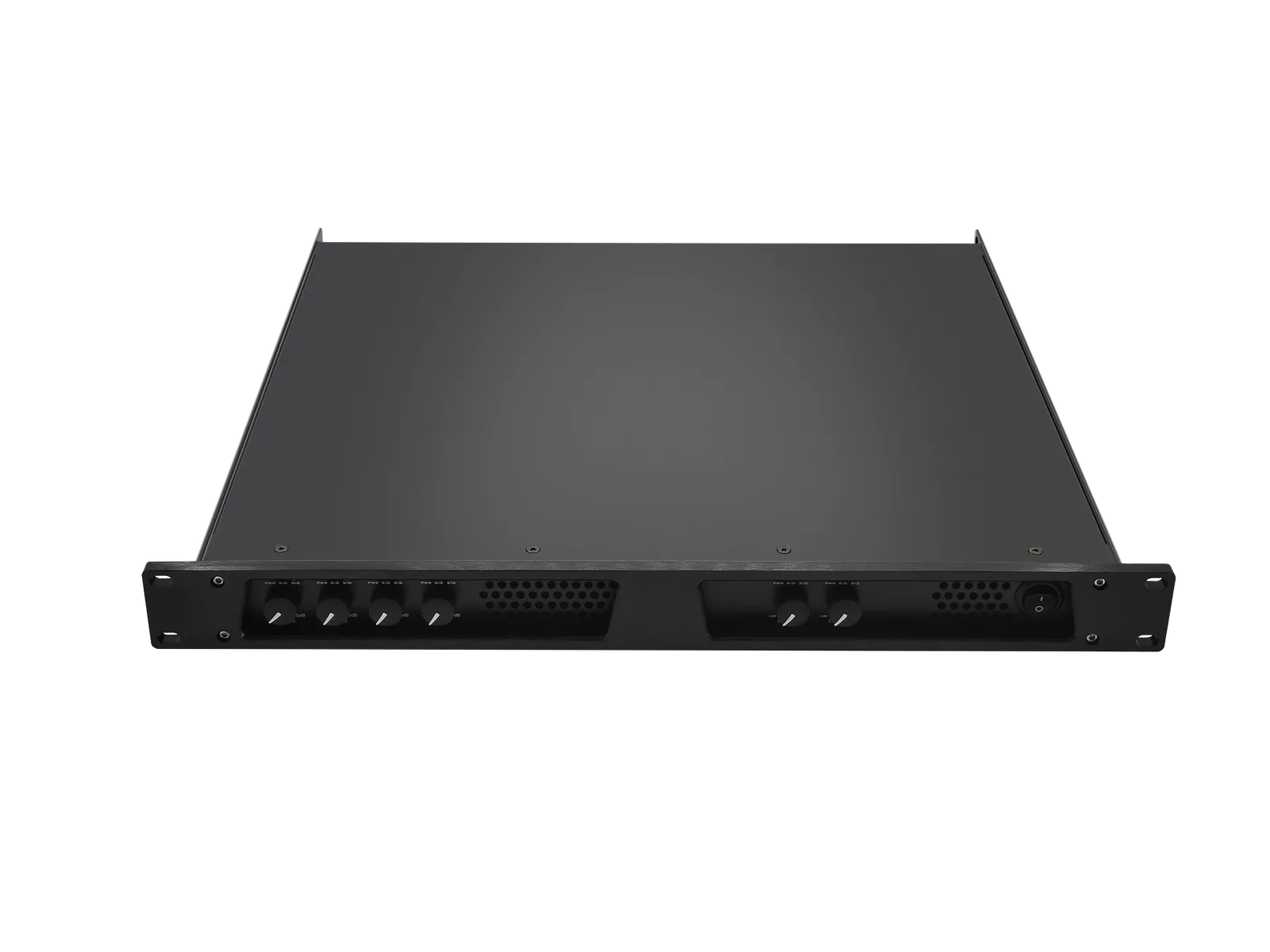

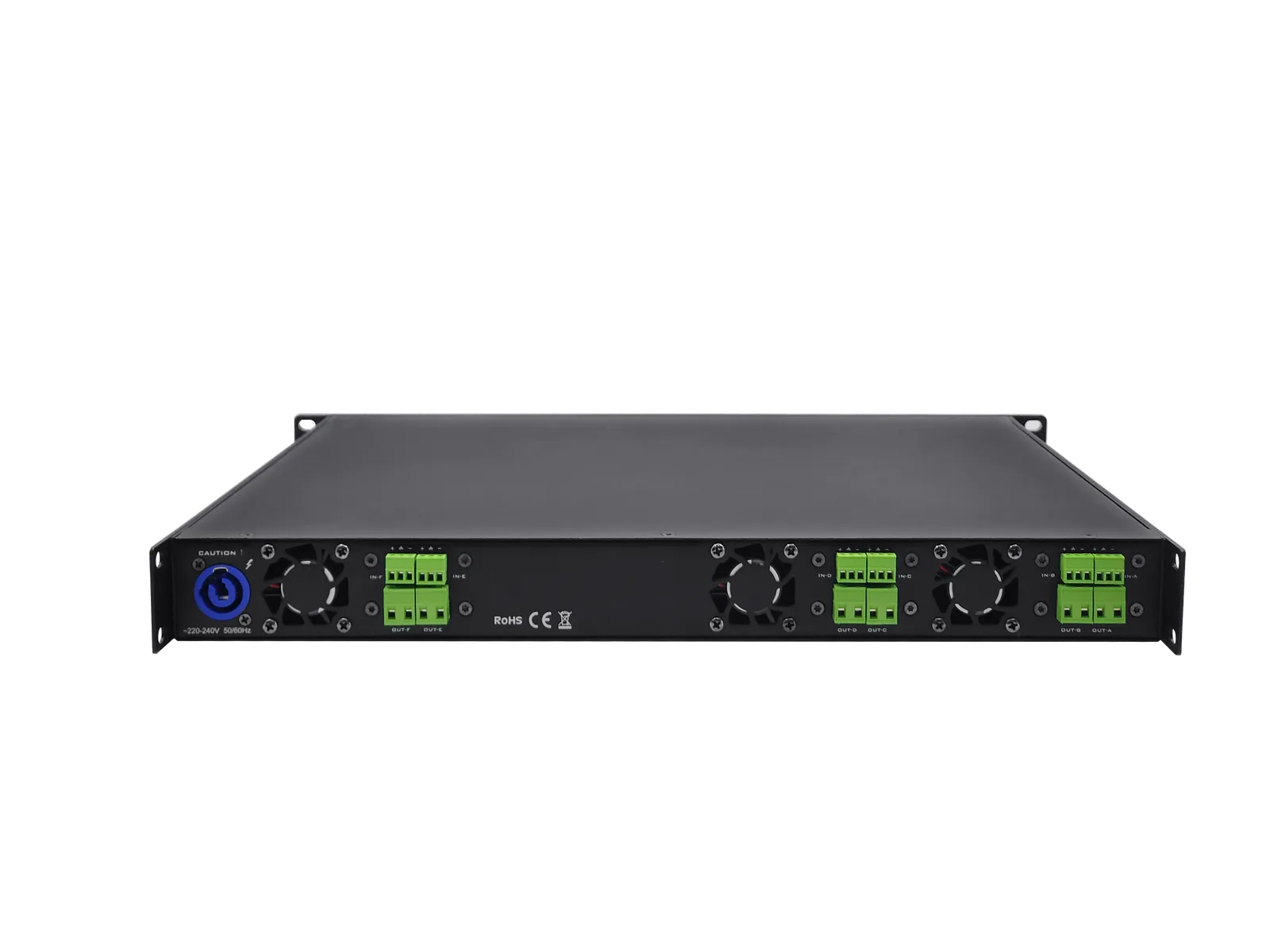

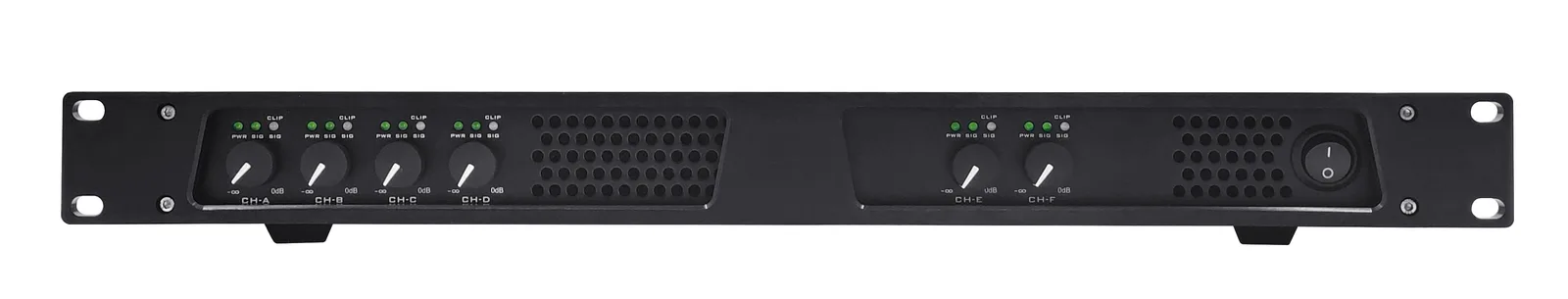

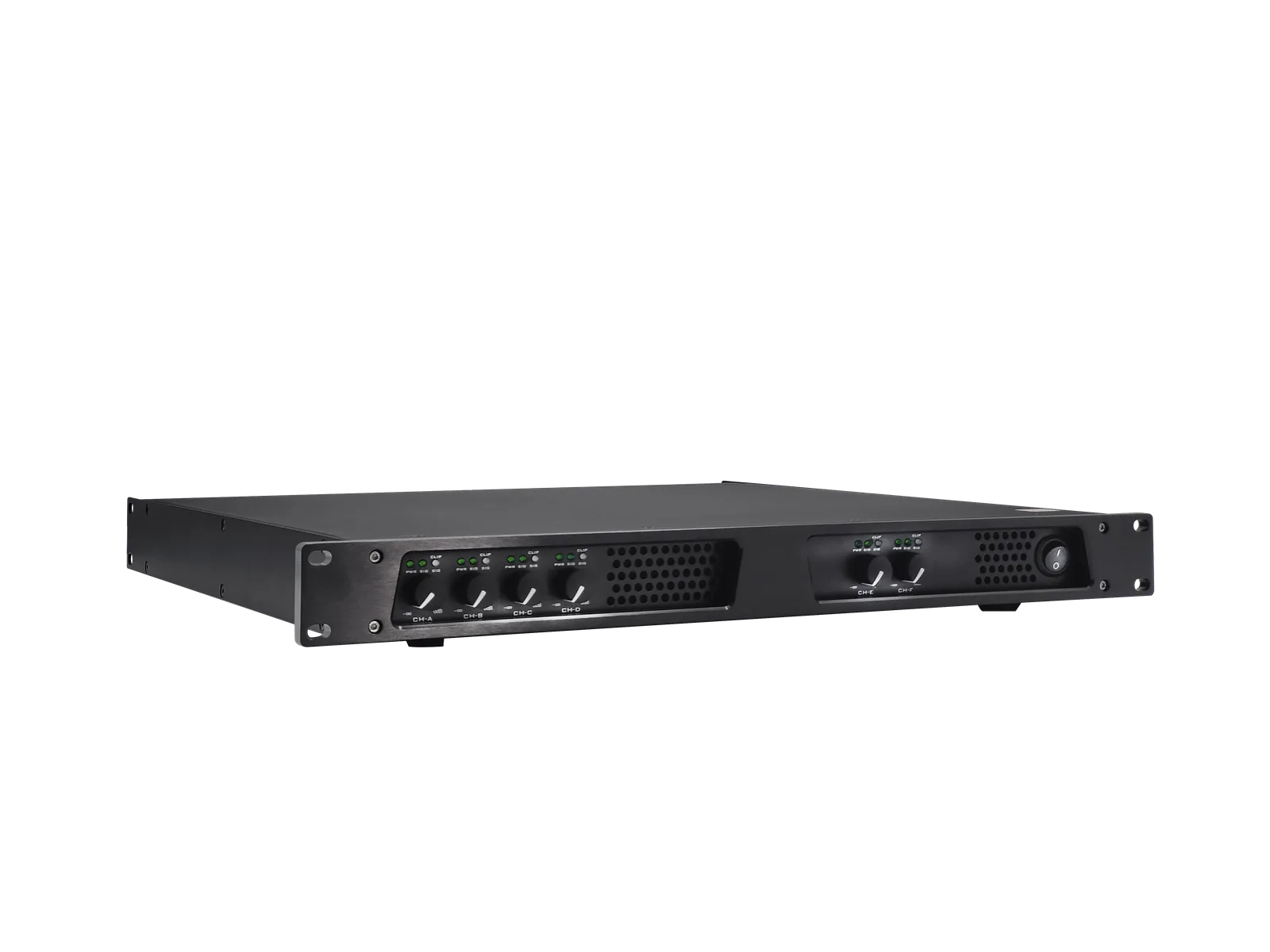

EC-6350 Professional Class-D Stereo Amplifier, 6×350W at 8Ω, 1U, class-D

الكود: EC-6350

Professional Class-D Stereo Amplifier, 6×350W at 8Ω, 1U, class-D EC-6350 Features: 1. The equipment adopts a 1U chassis design, which has the characteristics of small size and light weight. 2. Adopts the latest class D power amplifier design scheme, which has the characteristics of low distortion and high efficiency. 3. The power supply adopts switching power supply, which has high efficiency; the switching power supply technology is used to effectively suppress the harmonics of the power supply. 4. Intelligent peak-cutting limiter, which controls the power module and speaker system to work within a safe range. 5. Standard Phoenix terminal input and output interface, simple interface is more convenient for different user needs. 6. Soft-start power-on to prevent high-current absorption into the power grid during power-on and interference with other electrical equipment. 7. Intelligent control, forced heat dissipation design, low fan noise and high heat dissipation efficiency. 8. Adapt to the needs of different occasions. 9. It has: overvoltage protection, undervoltage protection, over-temperature voltage limit, over-temperature shutdown, over-current voltage limit, over-current shutdown, DC protection, output short-circuit protection, temperature control fan, power amplifier frequency synchronization and other functions. Specification: v:* {behavior:url(#default#VML);}o:* {behavior:url(#default#VML);}x:* {behavior:url(#default#VML);}.shape {behavior:url(#default#VML);} Model EC-6350 Description Six Channel Class-D Amplifier Technology Class-D RMS Power @ 8 Ohm Stereo 6×350 Watt RMS Power @ 4 Ohm Stereo 6×500 Watt RMS Power @ 2 Ohm Stereo 6×600 Watt RMS output voltage (THD=1%, 1kHz) 53V Voltage gain 33dB Rising slope (1kHz, bypass low-pass filter) 50V/us Input sensitivity (rated output power, 1kHz) 1.2Vrms THD+N (10% rated output power, typical value) 0.01% IMD-SMPTE (10% rated output power, typical value) 0.01% DIM30 (10% rated output power, typical value) 0.01% Crosstalk suppression (lower than rated power, 20Hz-1kHz) ≥90dB Frequency response (10% rated output power, 8Ω, 20Hz-20kHz) ±0.2dB Input impedance 20kΩ (balanced) 10kΩ(unbalanced) Damping coefficient (8Ω, 20Hz-100Hz) ≥300 Signal-to-noise ratio (A weighted, 20Hz-20kHz) ≥105dB Input impedance balanced 20kΩ/unbalanced 10kΩ Input method Phoenix terminal Output connection Phoenix terminal With stereo and connected Dimensions (W×D×H) 483×362×44mm Net weight 9.3kg
